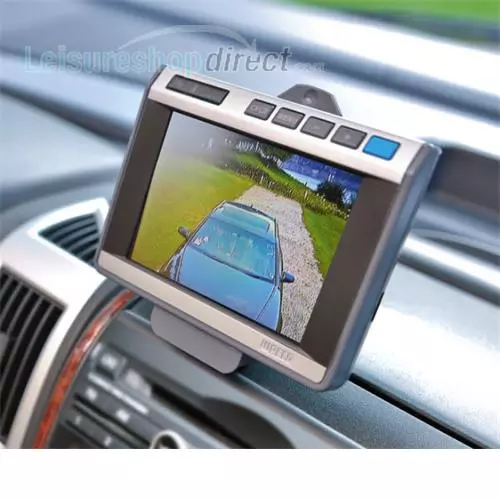

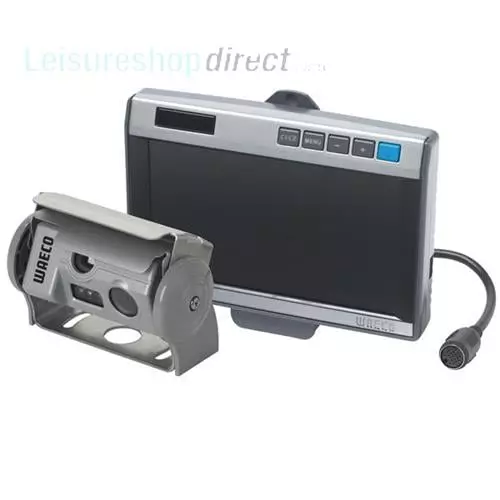

Waeco RVS594 5in Twin Lens Reversing Camera System

£815.18(inc VAT) £1047.99
View delivery optionsView product description
  Product Description
Waeco RVS594 5in Twin Lens Reversing Camera System.
RVS 594 5" monitor M5L + Camera CAM 44
Twin Lens Reversing Camera System with motorised protective shutter.

This range of rear vision systems are the top quality premium series. Fully vibration and water proof to withstand the harshest environments. Delivered with Monitor, Easylink monitor mount, camera, 20 m connection cable from the monitor to the camera, monitor cable set, installation fittings for all components.

Waeco RVS594 5in Twin Lens Reversing Camera System Features


  • Automatic day/night switching
  • Normal or mirrored picture function
  • 3 camera inputs, can be controlled separately
  • Picture settings can be saved for each camera
  • Loudspeaker
  • USB connection for charging MP3 players etc.
  • LED background lighting

  • Monitor easy to remove thanks to Easylink mount
  • Optimum picture quality even at low temperatures
  • USB charging output
  • Two lenses: one for close-range, one for long-range
  • Even when the shutter is closed, long-range pictures are still possible to the rear
  • Motor-operated cover protects against dirt and damage
  • IR LEDs for improved night vision
  • Camera type of protection IP 68

  • Colour twin camera with shutter CAM 44
  • Picture angle: close-range 140° diagonal, long-range 50° diagonal
  • Operation via the two camera inputs of the monitor
  • Manual or automatic switching between the cameras
  • Anodised and powdercoated aluminium housing with stainless steel cap and mount
  • Motor-powered camera cover
  • Microphone
  • LDR-controlled IR LEDs for improved night vision
  • Distance marks (3 lines) in reversing mode

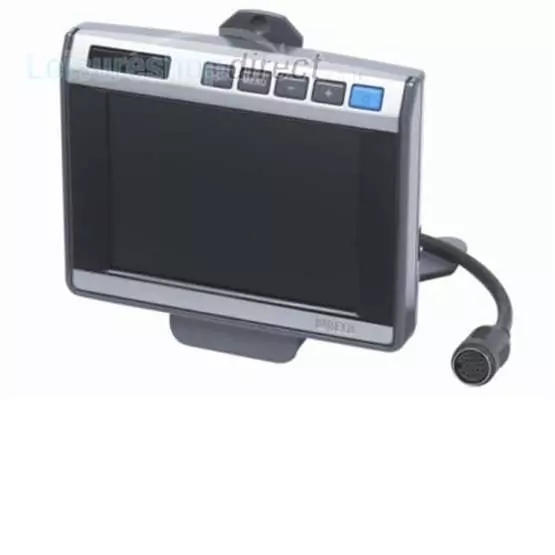

  • 5" colour LCD monitor M 5L
  • Switches on automatically or manually
  • Automatic day/night switching
  • Normal or mirrored picture function
  • 2 camera inputs, can be controlled separately
  • Picture settings can be saved for each camera
  • Loudspeaker
  • USB connection for charging MP3 players etc.
  • LED background lighting
  • PerfectView CAM 44 Specifications
  • Dimensions (WxHxD) : 114 x 74 x 62 mm (incl. mount)
  • Operating voltage : 11 - 16 volts DC
  • Power input : approx. 1.2 watts
  • Picture sensor : 1/4" CMOS
  • Resolution : 290,000 Pixel
  • Diagonal picture angle : Close range: 140 °
  • Horizontal picture angle : Close range: 100 °
  • Vertical picture angle : Close range: 72 °
  • Light sensitivity : < 1 lux or 0 lux with LED
  • Video standard : PAL
  • Operating temperature : -30 °C to +70 °C
  • Colour : Silver
  • Vibration resistance : 6 g
  • Weight : 360 g
  • Brightness adjustment : electronic
  • Mirrored picture function : factory pre-mirrored
  • Type of protection : IP 68
  • Test mark : E-certificate
  • PerfectView M 5L Specifications
  • Dimensions (WxHxD) : 144 x 128 x 120 mm (incl. mount)
  • Diagonal screen dimension : 5"/128 mm (visible picture)
  • Operating voltage : 12 - 30 volts DC
  • Power input : 10 watts
  • Resolution : 235,000 pixels
  • Video standard : PAL/NTSC auto
  • Operating temperature : -20 °C to +60 °C
  • Vibration resistance : 5 g
  • Weight : 300 g
  • Picture brightness : 400 cd/m
  • Dimmer : automatic via LDR
  • Camera inputs : 2 with signal detection
  • Mirrored picture function : can be set
  • Test mark : E-certificate
