Thetford Fridge N4097 in either an Automatic or Manual version - Left handed supplied with a kit in case you require it to be right handed.
The

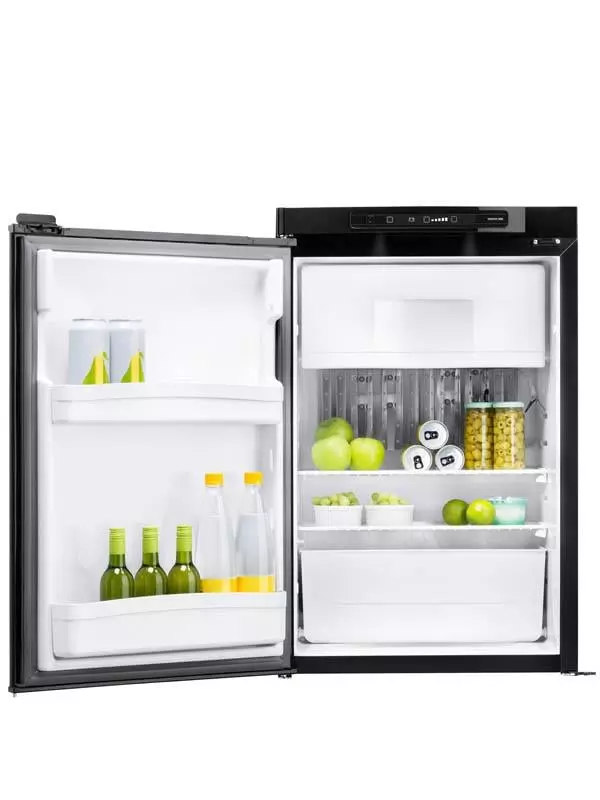

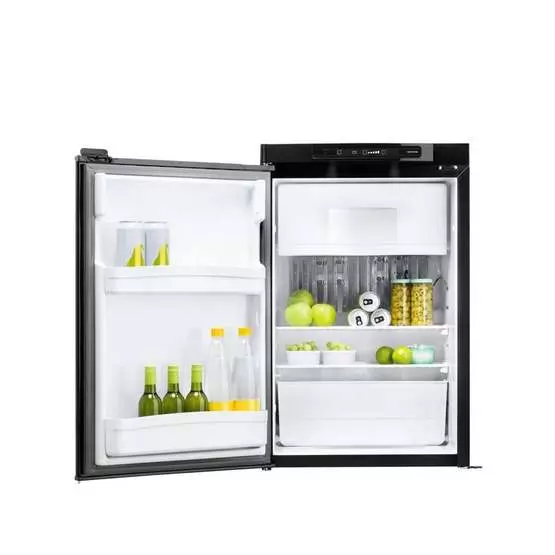

Thetford N4097 compact but spacious, 3 Way Fridge features a roomy 97 litre capacity (inclusive of an 11 litre freezer compartment) with flexible shelving, bottle slide and door bins perfect for keeping treats and essentials cool, secure and organised whilst your motorhome, campervan or caravan is on the go.
Featuring an automatic or manual power source selection, electric ignition and an easy to use control panel, the Thetford N3097 is a stepped 3 way fridge freezer which delivers a high quality, reliable cooling performance with quiet operations so you’ll barely hear it even working!

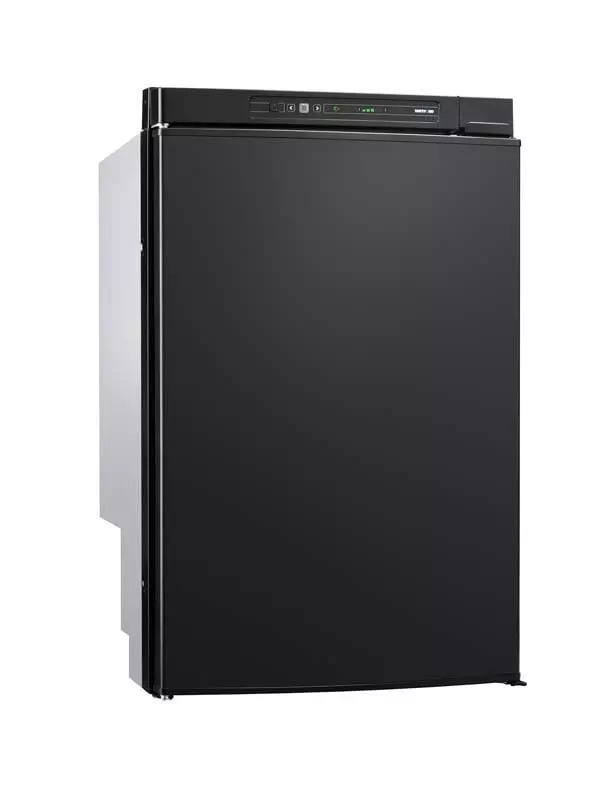

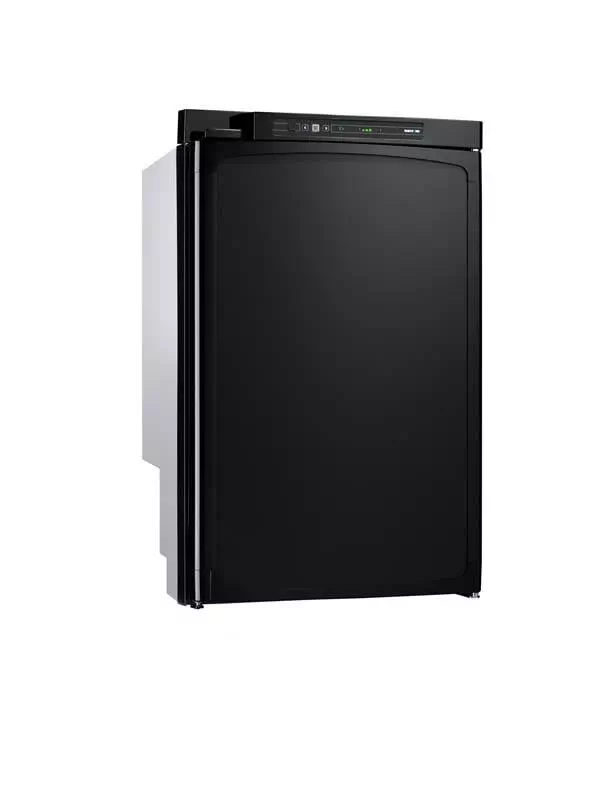

Framed or Frameless?
The fridges themselves are exactly the same. The only difference is the door. Framed fridges have clips/runners on the front of the door to allow manufacturers to slide a veneer down to match the decor/design of the caravan or motorhome. A frameless fridge has no clips/runners. An example is that domestic fridges are frameless fridges.
The advantages of Thetford- Superior quality
- Practical in use
- Long durability
- Standard 3 year warranty
- Outstanding customer service
- Extensive service network
- Securing the doortip-en
When driving, always make sure the refrigerator door is locked.Close the door securely. On some models, the door automatically locks. For an additional lock, slide the black latch over the pin at the bottom of the door. Keep your refrigerator fresh, even in storage
Prevent moisture, mold and unpleasant odours in the refrigerator by opening the refrigerator. Keep the door open by using the sliding latch at the top of the door. Remember to keep the freezer door open too. This way, your refrigerator will always stay fresh!
SafetyEnsure the safe storage of your camper or caravan by tightly closing off the gas cylinder and valves.
FEATURES OF THE THETFORD N4097 FRIDGE- Stepped (for wheel arches)
- Automatic or Manual power source selection (MES/AES)
- Securely closed door
- Flexible bottle slide
- 2 flexible white door bins
- 2 flexible white shelves
- Control panel
- First class cooling performance
- Quiet to run
- Power cables and gas inlet tube at the bottom-backside of the fridge
- 3-year guarantee
- CE mark of quality, CFC-free and almost entirely recyclable
SPECIFICATIONS- Main Dimensions (H x W x D): 821 x 525 x 578
- Total Volume (L): 96
- Wheel Arch Model: Yes
- Door Version: Right & Left
- Usable Power Source: 12v - Mains - LPG Gas
- Freezer Volume: 11L
- Ignition: Piezo / Electric
- Input: 2.8kWh/24h
It may be that the door of your refrigerator needs to be adjusted. Contact your dealer or Thetford Service Centre to check this.
You may have pressed the button too shortly, we advise you to hold the button for at least 2 seconds. If this does not solve your issue, please contact your dealer or Thetford Service Centre.
The A is a preparation for an optional automatic refrigerator, you can't select it.
You may not have an automatic refrigerator, contact your dealer or Thetford Service Centre to see if this is the case.
This is the following thing what you must do: Check if the gas bottle is not empty, also check if the valve of the gas bottle and all shut-off valves are open. Then switch the refrigerator off and on again. If none of this is the case, please contact your dealer or Thetford Service Centre.
The 12 Volt supply could be too high due to the usage of solar panels. Your refrigerator has a built-in safety measurement for this, we advise you to check this with your dealer or Thetford Service Centre. Please check the warning code and contact you dealer or Thetford Service Centre.
The blinking leds indicates a warning code. This indicates something is not okay with your refrigerator, with attached description you are able to recognize the warning code. For further information, please contact your dealer or Thetford Service Center.
There is a battery pack for LED N3000-E models. This battery operated (6 pcs 1.5V AA/LR6) pack is found under the control panel. Whether on the road or at a campsite with no hook ups to a 220-230V or 12V energy source, this battery pack will ensure constant power to the control panel. This allows you to keep the fridge powered up on gas for a continuous period of 7 days. Very handy when you’re out in the middle of nowhere.
On the 12 Volt mode the refrigerator needs a constantly supply of 12 Volt. That 12 Volt is coming from the car alternator when it's running.
It is possible that the incoming voltage is too low, which prevents the refrigerator from performing optimally. Please check if the incoming voltage is not too low on the 230V connection of the refrigerator. If this does not solve your issue, please contact your dealer or Thetford Service Centre.
It is possible that the incoming voltage is too low, which prevents the refrigerator from performing optimally. Please check if the incoming voltage is not too low on the 230V connection of the refrigerator. If this does not solve your issue, please contact your dealer or Thetford Service Centre.
Your refrigerator must be manually operated, unfortunately it does not have an automatic function.
First make sure that the door is closed properly. then make sure the products are cooled before putting them in the refrigerator, limit door open when using. If this does not solve your issue, please contact your dealer or thetford service centre.
