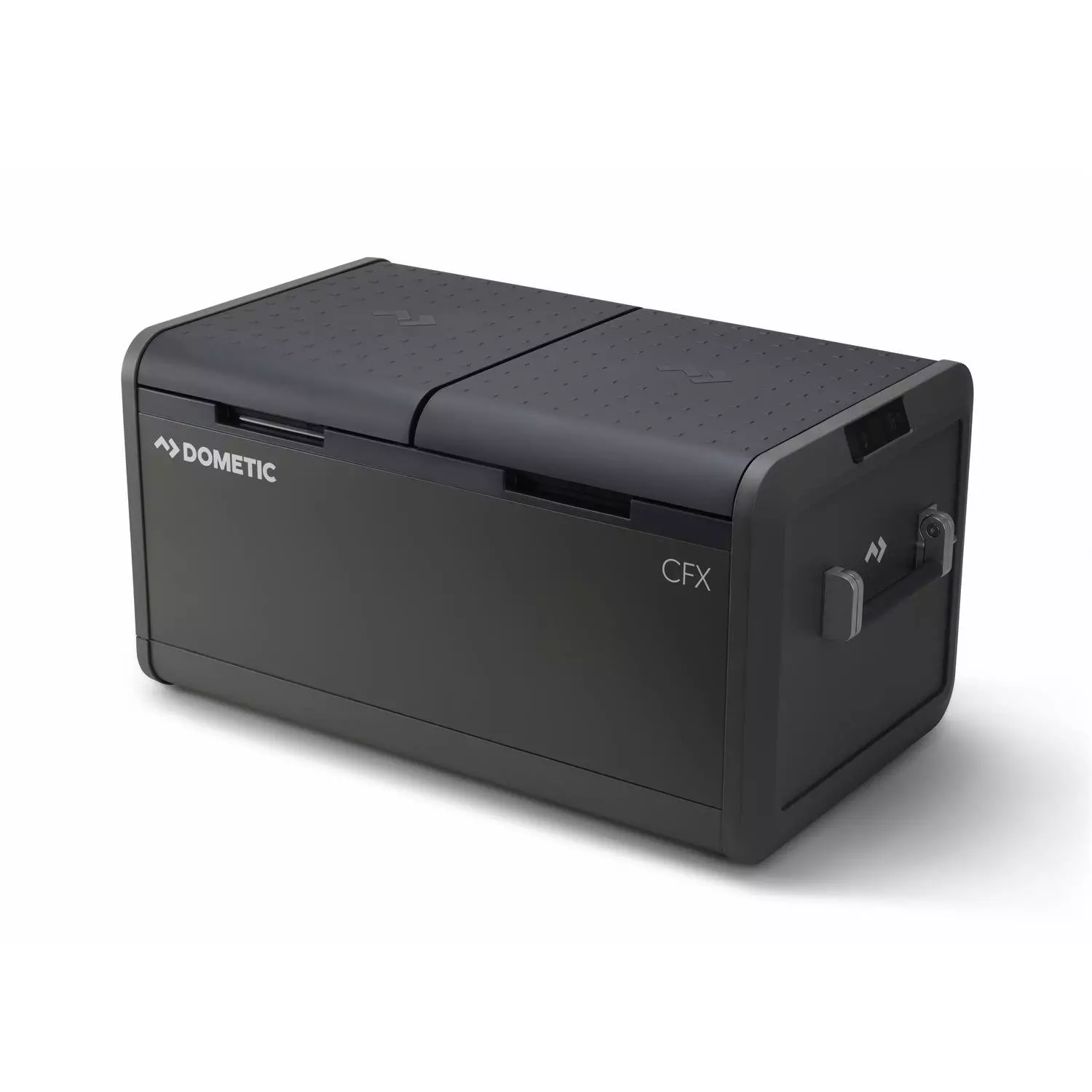

Dometic CFX5-95DZ Dual-Zone Portable Compressor Coolbox and Freezer

Product Ref: 276312
Brand : Dometic

£1199.99(inc VAT) £1249.00Product Ref: 276312
Brand : Dometic

(4.89/5) Read Reviews - Click Here (9 reviews)

View delivery optionsView product description

Delivery : Free Delivery
Loading stock details...

Only £1312.48
Save £12.50

Add Bundle

Free Shipping

Only £1848.27
Save £75.71

Add Bundle

Free Shipping

Only £1735.78
Save £63.21

Add Bundle

Free Shipping

More Bundles Click Here

Discount Bundles Available

Product Description

The Dometic CFX5-95DZ is a 5l portable compressor cool box and freezer that replaces the CFX3-95DZ. This is a dual-zone coolbox / freezer.

Take control of outdoor adventures like never before with the Dometic CFX5 95DZ. Enjoy fresher food at your fingertips thanks to Dometic’s market leading VMSO3 variable speed compressor with optimised software for better cooling, freezing and power consumption. The CFX5 features durable fender frames that protect the edges of the cool box, making it ideal for rugged trips. Strong, spring-loaded aluminium handles make it easy to lift and carry. Set the cooling temperature of your CFX5 on the TFT display screen and pack all your favourite foods. Download the CFX5 app and roam free from worry. Once your CFX5 is connected through your phone, you can set the ideal temperature, and get a detailed history of energy and temperatures. As this is the Dual Zone, you can set the temperature of each side independantly. You can have one as a freezer and one as a fridge, or both fridge or bother freezer! We also offer a range of accessories to get the most out of your cool box, including a durable insulated protective cover.

This ultimate powered cool box produces seriously impressive cooling, allowing you to bring more of the food and drinks you love wherever you go. Its robust design is built for tough outdoor use, while a convenient mobile app puts the control of your Dometic CFX5 at your fingertips. Dual zone storage compartments have independent temperature control which enables simultaneous cooling and freezing.

The Dometic CoolFreeze CFX5 95DZ is a powerful cooler for refrigeration or freezing in two separate zones. With its high-performance compressor technology and extra thick insulation, this cooler is impressively quiet and efficient while being able to withstand the most demanding of loads thanks to its robust design. On top of all this, the CFX5 95DZ is remarkably lightweight and easy to transport.

This is the most efficient 12V compressor coolbox on the market. This uses upto 35% less power consumption than any other box on the market today.

At an operating temperature of -22°C and an outside temperature of upto 32°C the CFX95DZ has a current consumption of 0.3Ah/h. This equates to using a normal 80Ah leisure battery for 107 hours or nearly 4.5 days....amazing!!

THE POWER TO BE PRESENT
With the Dometic CFX5, you have control of your outdoor experiences like never before. The CFX5 gives you the power to change your state of mind and put your well-being first. On-road, off-road, outback or in the backyard, your ordinary and extraordinary adventures will be fuelled by fresher, safer food, less waste and more confidence, giving you the power to be present in any moment.

MAXIMUM EFFICIENCY AND CAPACITY
You can store an incredible amount of fresh food and drinks in the Dometic CFX5 thanks to the internal compartment design. The CFX5 eliminates the dairy compartment, which means more room for all your favourite foods. Choose how you organise the space with a removable wire divider and enjoy a more even distribution of cool air with the extended evaporator, now on all inner walls of the unit.

TRACK COOL BOX PERFORMANCE WHEREVER YOU ARE

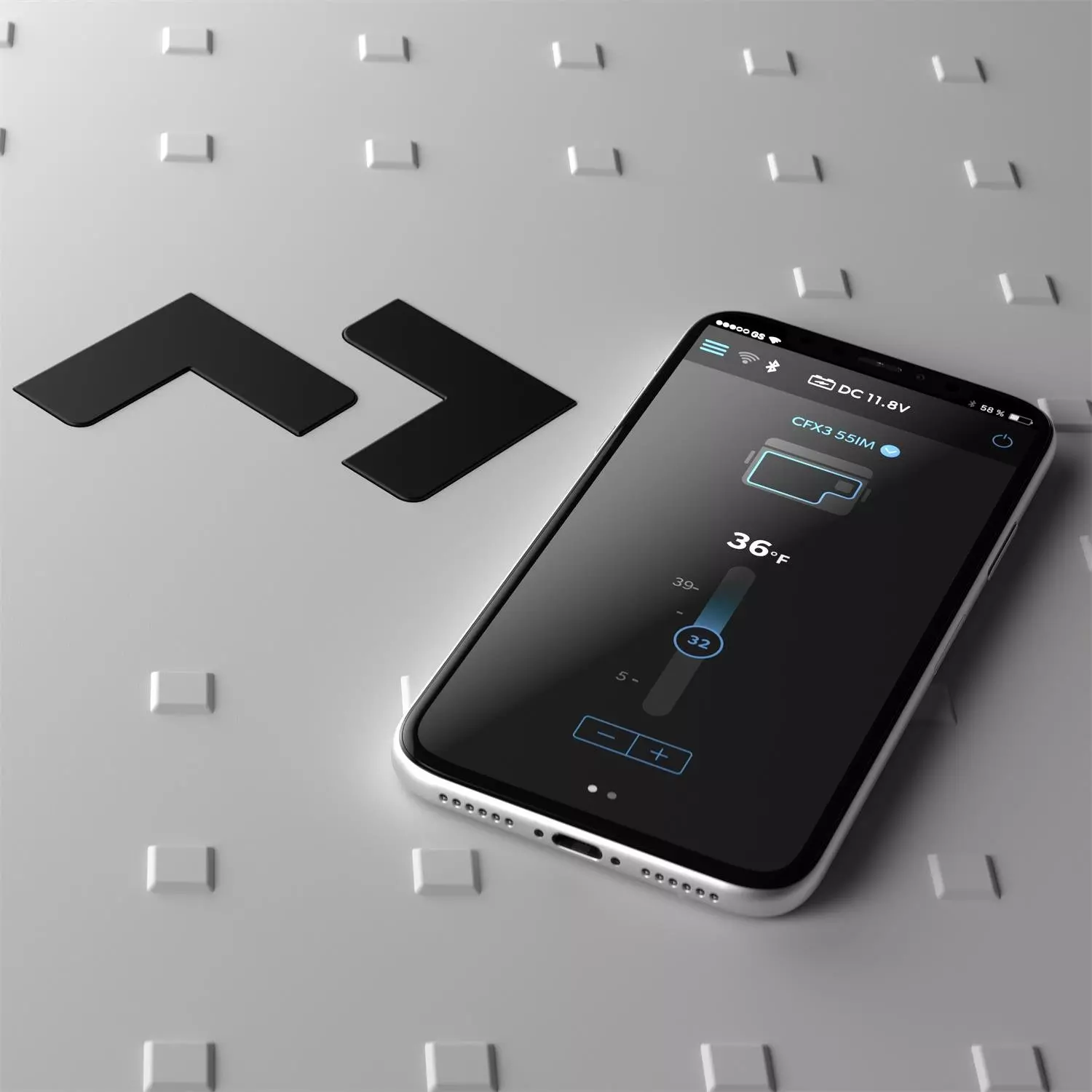

The CFX5 app provides a whole new level of control and connectivity. Download it for free in the App Store or Google Play Store, and connect to your powered cool box via your smartphone. Control and monitor the temperature of the cool box remotely, whether it’s from the front seat of your vehicle or in bed after a long day of exploring. Thanks to our user-friendly interface, it’s easier than ever to track the cooling status of your CFX5. If you happen to leave the lid of your CFX5 open, the app will send you a notification telling you to close the lid. While powered, the app keeps detailed records of the temperature and power consumption history, so you know your limits on your next journey. Keep food fresh. Go and explore. Enjoy peace of mind.

Available for the iPhone or Android. Total CFX monitoring and control at your finguretips! The CFX app can be used to monitor and control your CFX fridge/freezer from a distance providing you can connect via WIFI. You can use the app to:

Control and monitor temperatures remotely
Turn on and off the CFX and/or individual compartments
Set your battery protection level
Select temperature unit °C or °F
Set temperature alarm
See what power source your CFX is running on; AC or DC
See what supply voltage level is if running on DC
See whenever your CFX lid is open and be alerted if open more than 3 mins

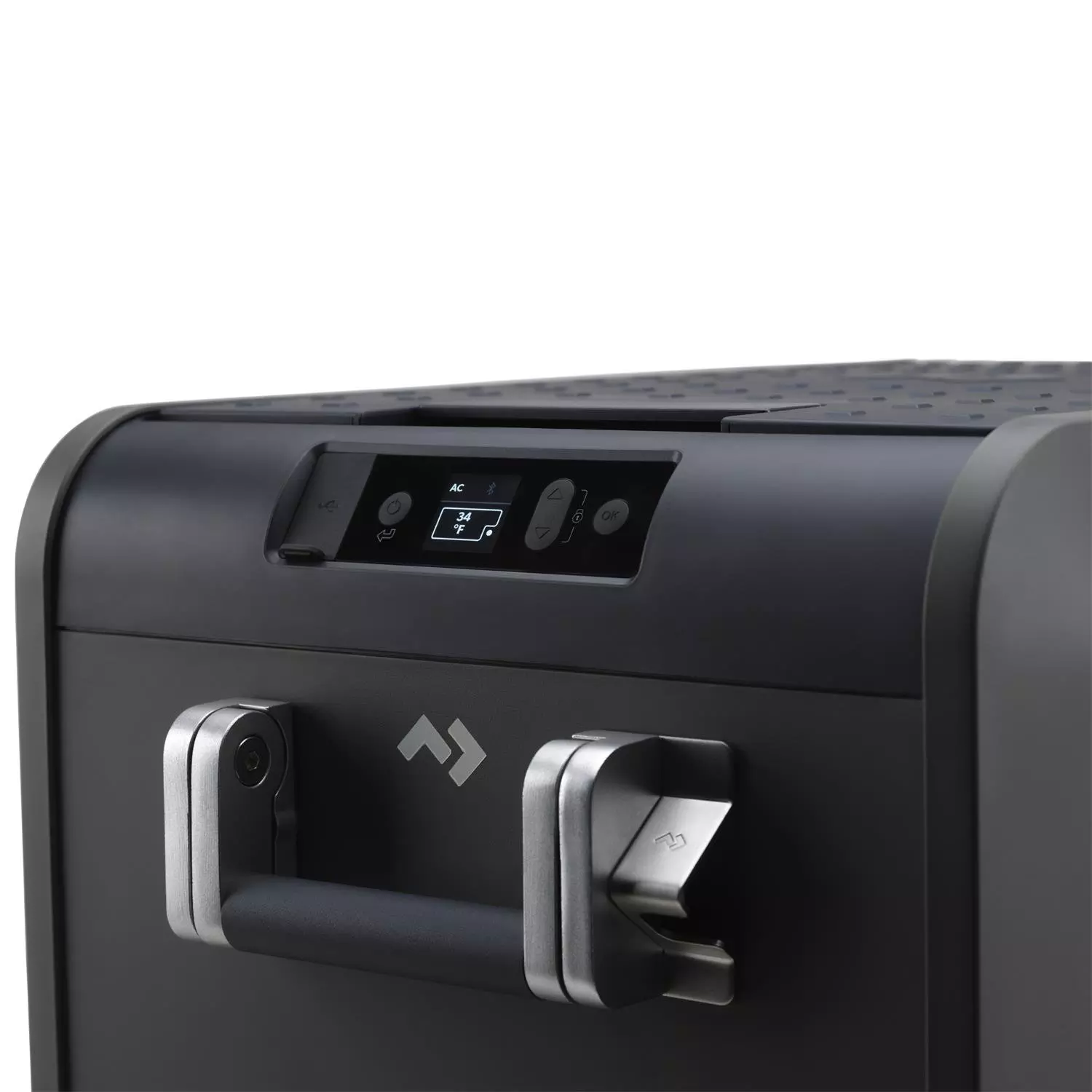

DIGITAL DISPLAY FOR EASY COOL BOX MANAGEMENT
The CFX5 series features an easy to read high-resolution colour display panel which states the temperature and status of the cool box. Several protection systems are built into the display, including a scratch-resistant cover and IP65 rated housing to protect against dust and water splashes, so you can feel confident wherever you go. The upgraded USB port is now located in the display panel for a faster and more ergonomic way to charge your portable devices. The intuitive user-interface displays the voltage, Bluetooth/WiFi connection status and temperature in colourful graphics. The operating settings of your cool box can be adjusted at the press of a button with a simple menu.

GUARANTEED TO HOLD THE TEMPERATURE YOU WANT
This is ideal for frozen foods or if you are travelling to a hot country where the temperature inside your caravan or motorhome gets to hot for most cool boxes to cope with. When you set the required temperature on the CFX range it will stay at that temperature. (Please see cooling limits)

COOLING COMPARTMENT
Cooling compartment with wire basket and separate crisper for fruit and vegetables.

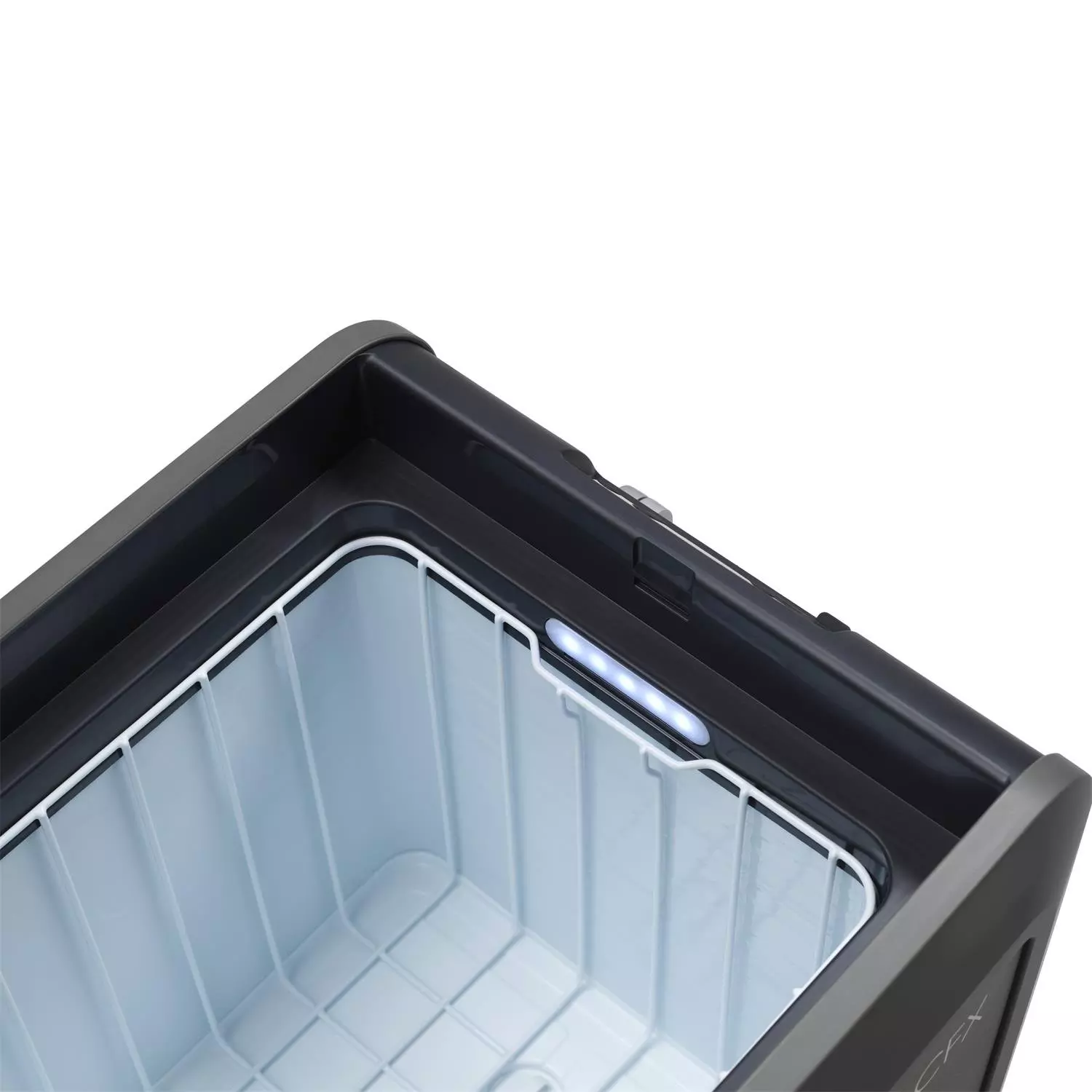

LED LIGHT
Energy-efficient LED interior light.

EASY TO CARRY
Space-saving folding and detachable carrying handles.

ROBUST
Heavy-duty design with reinforced corners and a robust closing mechanism

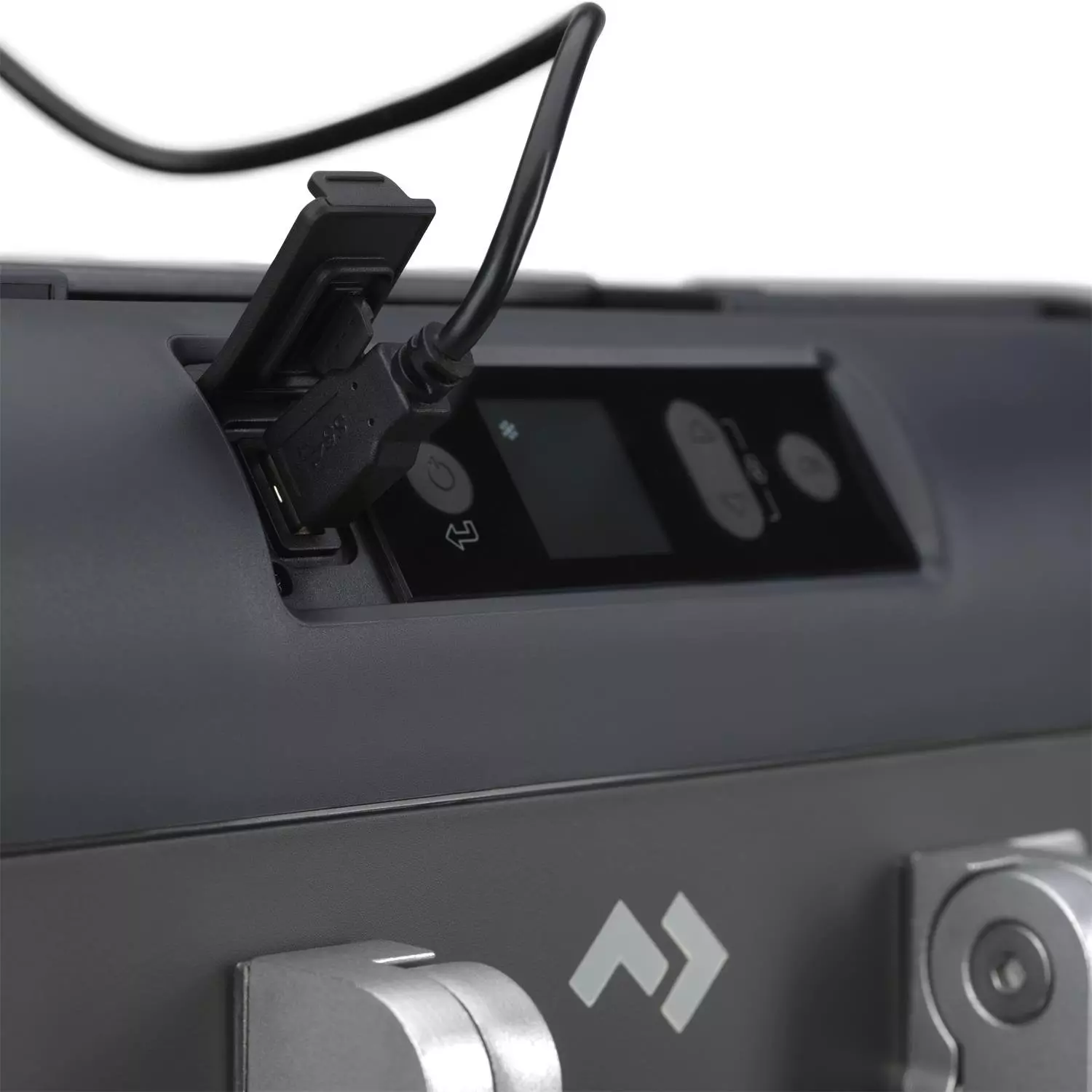

USB PORT
USB port for charging small electronic devices.

EFFICIENT DEEP-FREEZING
Sensational deep-freeze performance down to –22 °C with minimal energy consumption.

Top of the range Dometic Coolfreeze CFX Electronics
Dometic have taken a great deal of care with the design and development of the electronics only used in the CFX series. It is designed to be as energy efficient as possible. When the Dometic CFX5 95DZ starts up the compressor is gently started to save energy. If the desired temperature is not met within an expected short period of time, there is a turbo cooler which then comes on automatically to boost the compressor speed until the pre-set temperature is reached. Once met, the software and electronics switches the compressor back into energy-saving mode.

The Dometic CFX5 Range
With the Dometic CFX5, you have control of your outdoor experiences like never before. On-road and off-road, in the backyard and on the water, your ordinary and extraordinary adventures will be fueled by fresher, safer food, less waste and more confidence, giving you the power to be present in any moment.

Using our most advanced cooling technology, the Dometic CFX5 freezes down to –22 °C / –7 °F while using less power than a 60 W lightbulb. Connect to the 12V/24V DC outlet in your vehicle to roam free without worry. And relax knowing your cooler will never leave you stranded – the CFX5 actively monitors battery power and turns itself off when low voltage is detected.

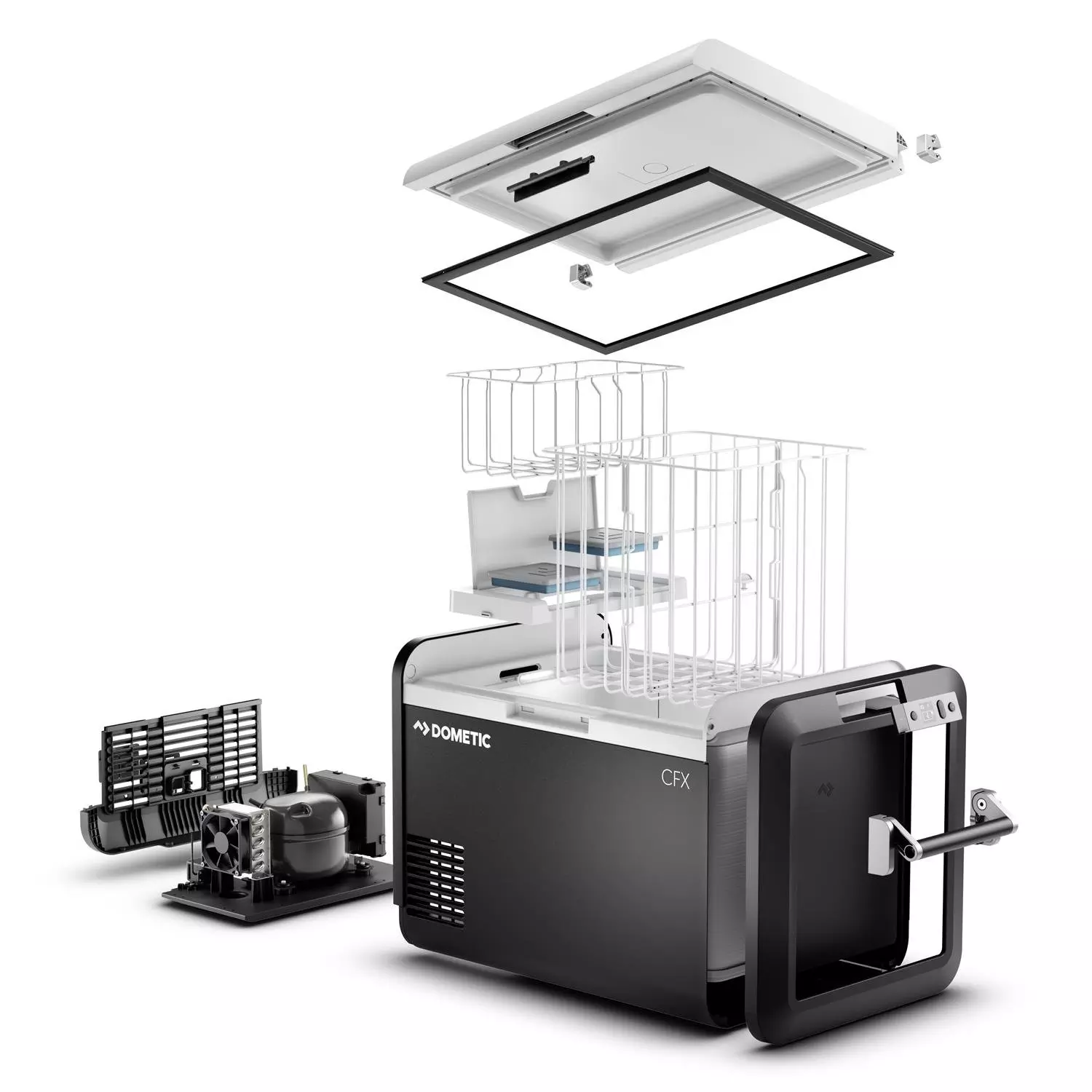

The Dometic CFX5’s rugged construction features a reinforced ExoFrame, stainless steel hinges and aluminum handles. Tested in the extreme heat of the Australian desert, it’s designed to perform in harsh environments. With soft touch controls, an intuitive high-resolution display and even a mobile app to download – the CFX5 couldn’t be easier to control.

Designed for maximized internal capacity you can be away for longer. A rearrangeable wire basket and divider ensure organized storage. You don’t need to worry about space-consuming ice. As long as you have access to a power source, the CFX’s powerful cooling will reliably freeze food, allowing you to stay longer and experience more.

The Dometic CFX5 is the most impressive powered cooler Dometic has ever made. The result of over 50 years’ expertise in cooling system design and manufacturing. With feedback from our ambassadors and customers, we’ve narrowed down the search for the perfect fit by selecting our most popular sizes and upgrading one of our most popular models.

Dometic CFX5-95DZ Features

Generous storage capacity of 82 l
Heavy-duty yet lightweight ExoFrame construction with fender frame protected edges and aluminium alloy handles
Powerful VMSO3 compressor cooling technology efficiently refrigerates and deep-freezes to –22 °C
Easy-to-read High-Resolution Colour Display and soft touch buttons enabling seamless control and monitoring of cool box performance
CFX5 App allows temperature control via WiFi or Bluetooth and provides performance history
3-stage dynamic battery protection system prevents dead car battery or allows deep draw on dual batteries

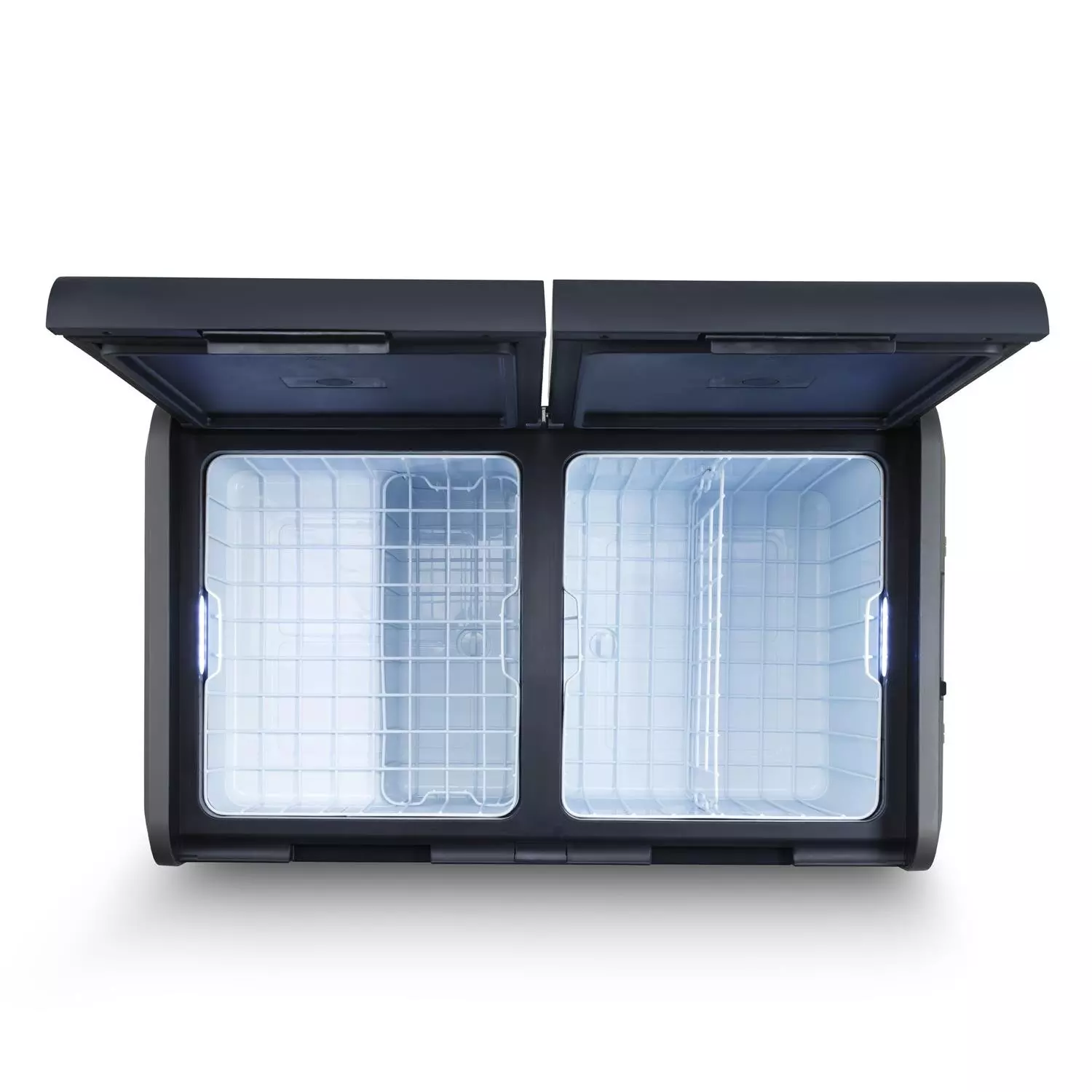

Dual storage compartments with independent temperature control for simultaneous cooling and freezing
USER-FRIENDLY INTERFACE : Weatherproof high-resolution user interface displays operating status
RUGGED CONSTRUCTION : ExoFrame construction protects the unit from damage
EFFICIENT POWER CONSUMPTION : Optimised VMSO3 Compressor cooling technology

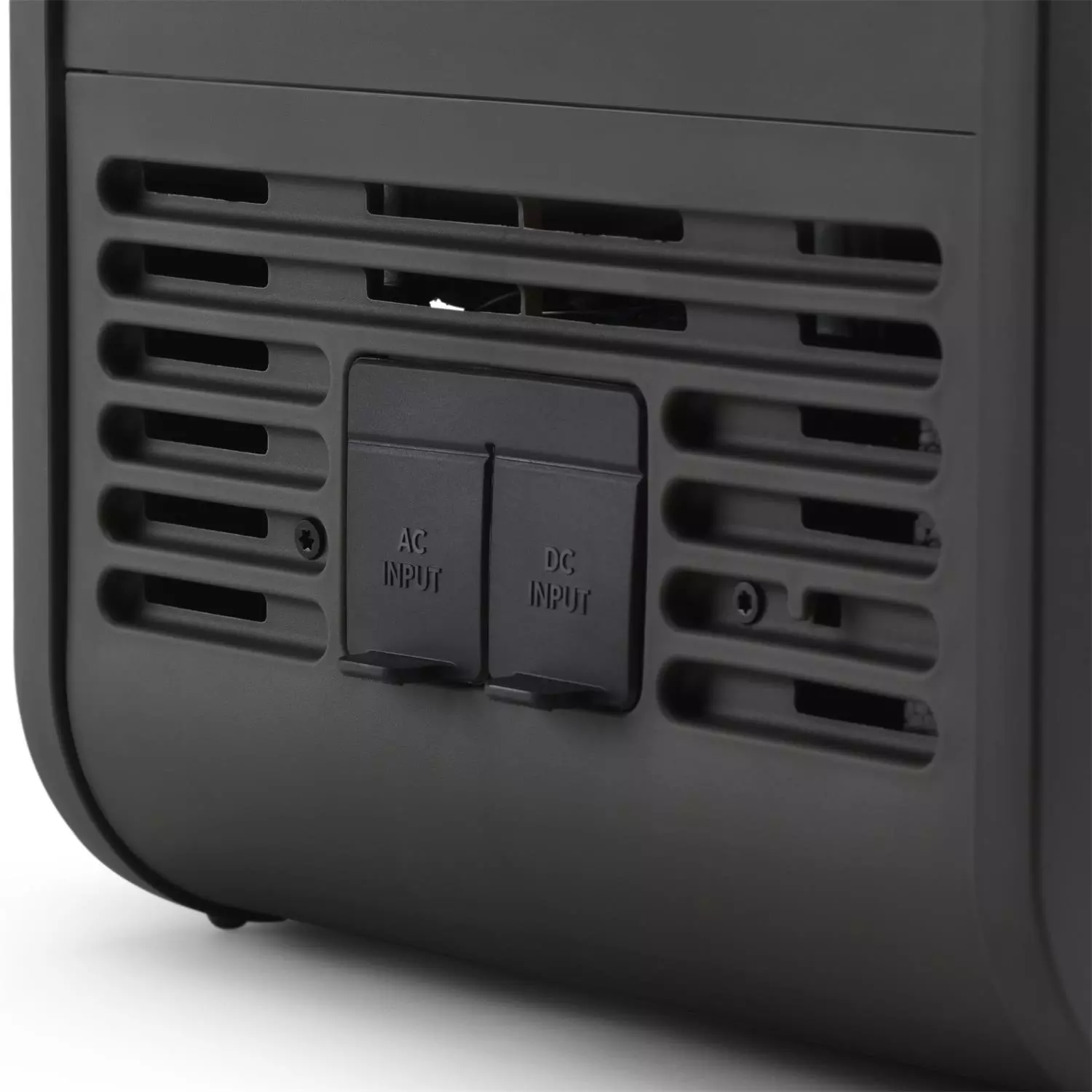

FLEXIBLE POWER OPTIONS : Powered by AC, DC and solar
CONVENIENT CFX5 APP : Temperature control and performance monitoring via CFX5 App

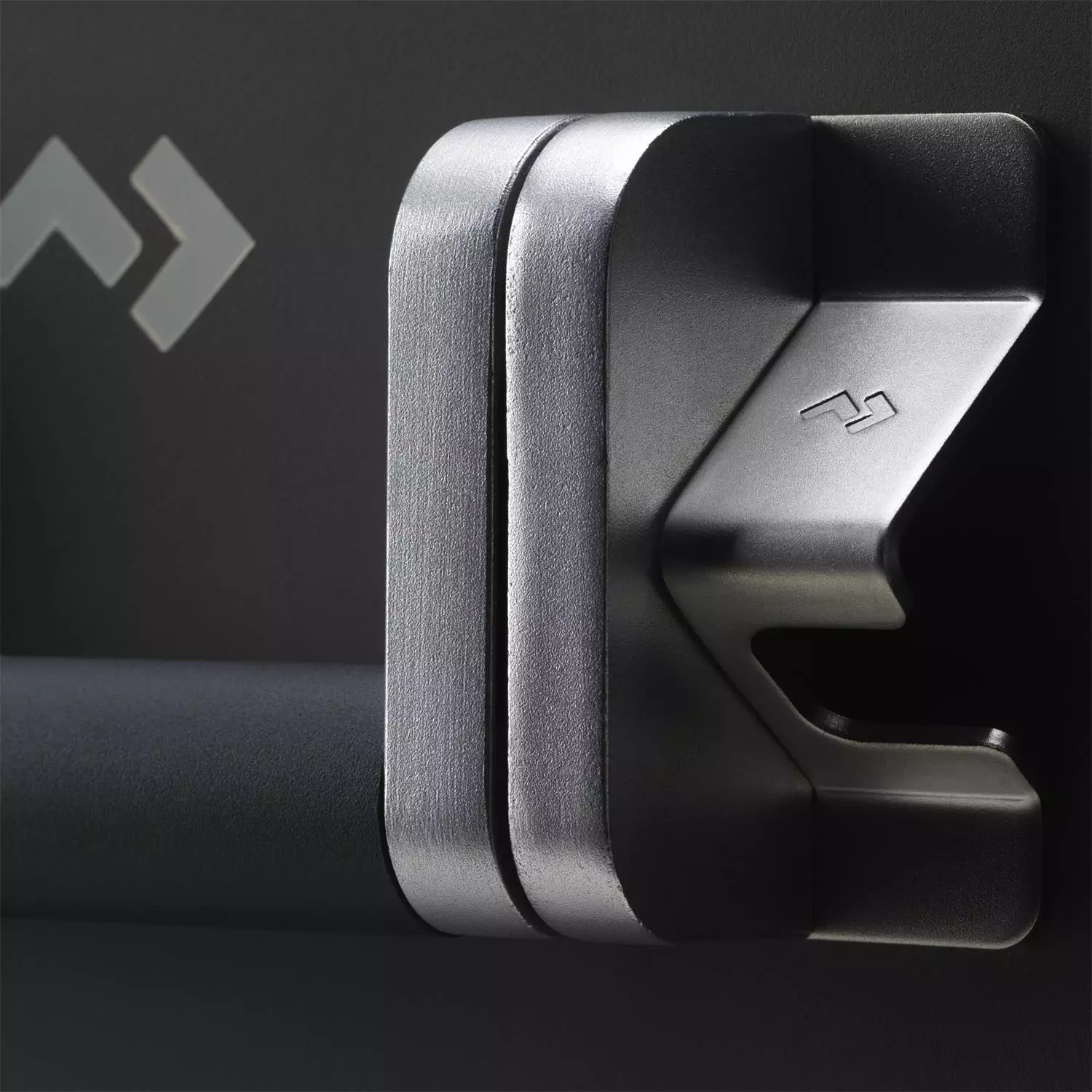

EASY TO CARRY : Strong aluminium alloy carry handles
COOL AND FREEZE SIMULTANEOUSLY : Dual compartments offer simultaneous cooling and freezing

Specifications

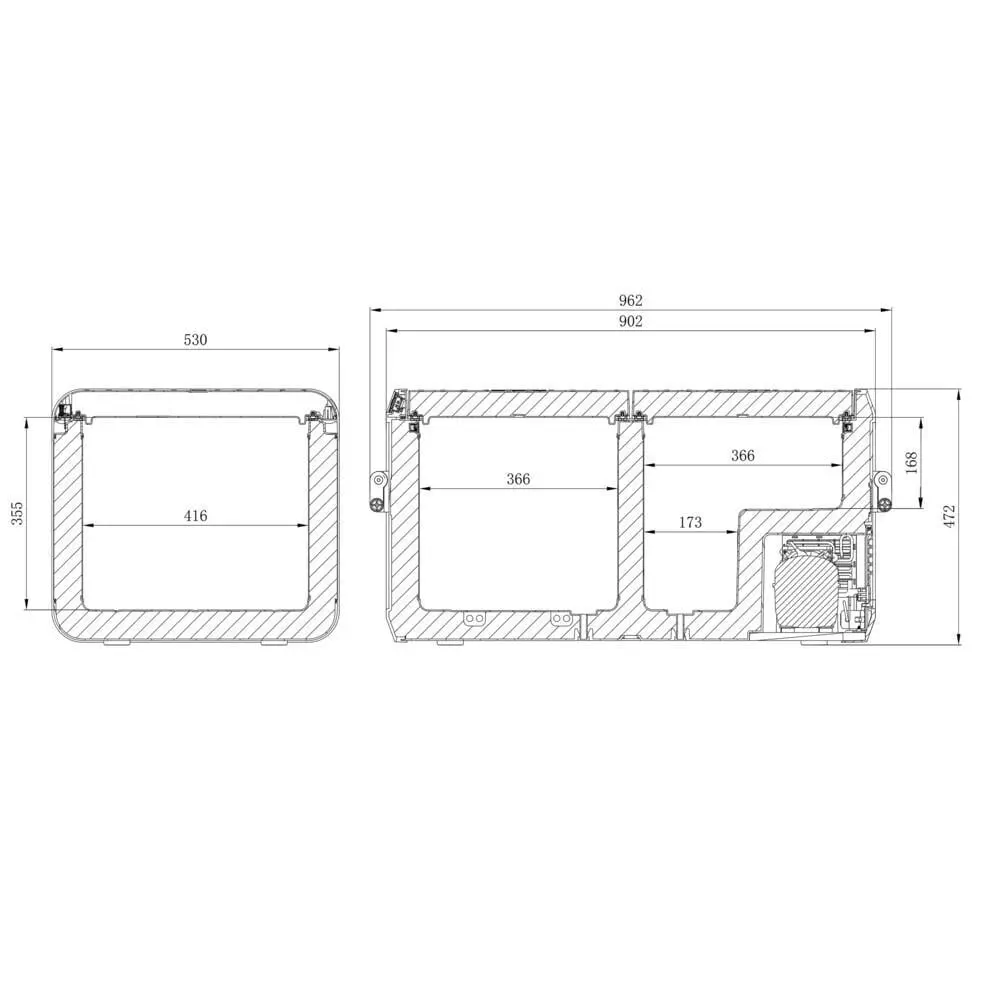

Dimensions product depth : 530 mm
Dimensions product height : 472 mm
Dimensions product width : 962 mm
Net weight : 29.8 kg
Gross volume (EN62552) : 93.00 l
Storage volume - total (EN 62552) : 82.00 l
Input voltage (AC) : 100-240 V
Input voltage (DC) : 12/24 V
Input frequency : 50/60 Hz
Refrigerant, type : R134a
GWP : 1430
Refrigerant amount : 67 g
CO2 equivalent : 0.096 t
Climate class (EN62552) : N/T
Insulation Type : PU (Polyurethane)
Colour : Smokey Gray
USB Port : 5V, 2A
Basket : Yes
Threaded inserts in base for mounting : M6

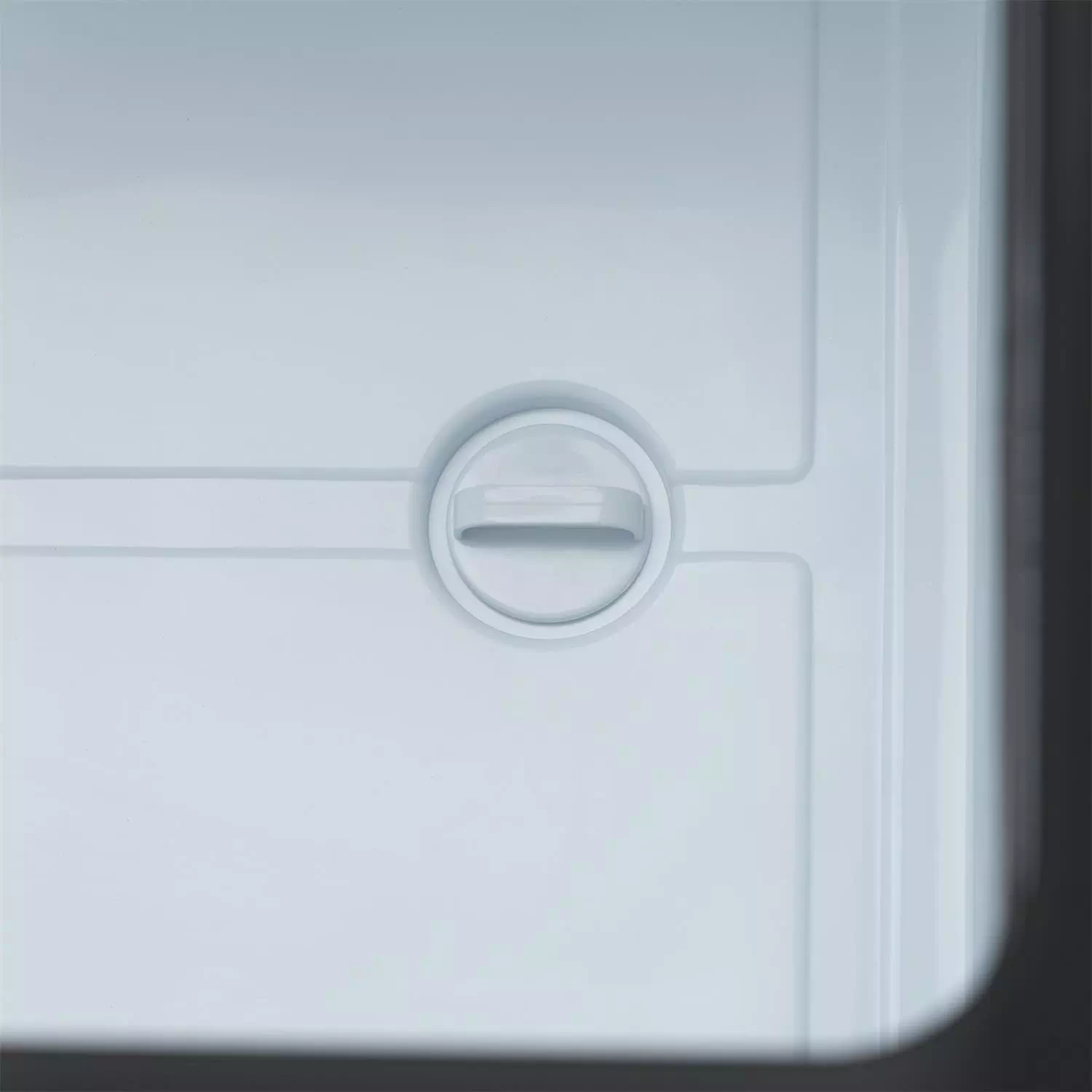

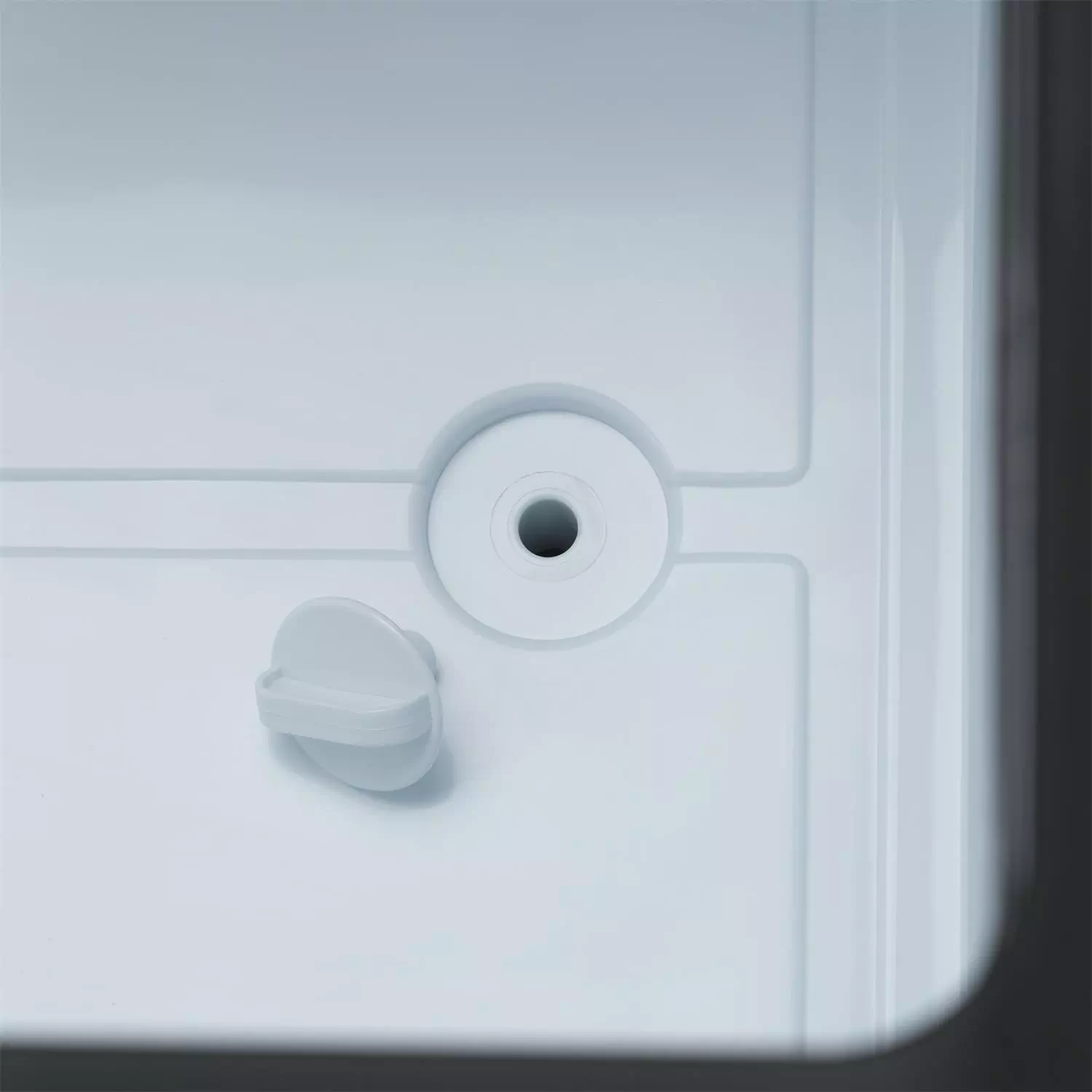

Drain plug : Yes
Interior light : Yes, LED
Certificates : CB, RCM

THIS COOLBOX USES COMPRESSOR TECHNOLOGY

What is the difference between the cooling technologies?
ABSORPTION COOLING
Details of distinguishing features:

Gas-powered cooling independent of electricity
Three way cooling – Gas, 12 volts DC or 230 volts AC
Silent operation
Cooling performance depending on the ambient temperature

The Technical Bit
A concentrated ammonia solution is heated in a boiler and expelled as vapour. The pressurised ammonia gas is then liquefied in a condenser. Supplied with hydrogen, it evaporates and in the process extracts heat from the storage container. The ammonia gas then enters the absorber where it is reabsorbed in a weak solution of ammonia. Finally, the saturated solution flows back to the boiler where the whole cycle starts again.

THERMOELECTRIC TECHNOLOGY
Details of distinguishing features:

12 / 24 / 230 Volt
Independent of inclination
Lightweight and low-cost
Cooling performance depending on the ambient temperature

The Technical Bit
The thermoelectric principle was discovered by J. C. A. Peltier, which is why the temperature generating parts of thermoelectric systems are referred to as Peltier elements. Thermoelectrics are based on the fact that cold or heat energy (depending on the polarity) is generated when a DC current is conducted between different types of metal. The heating or cooling capacity is further enhanced by heat exchangers and air fans. Ideal for low and medium cooling volumes.

COMPRESSOR TECHNOLOGY
Details of distinguishing features:

Excellent cooling performance even at extreme ambient temperatures
Refrigeration and deep-freezing
12 / 24 / 100 – 240 volts
Low power consumption – suitable for solar operation
Battery protection
Quiet operation with little vibration
Independent of inclination

The Technical Bit
Compressor units operate using a refrigerant that changes from liquid to gaseous state in the evaporator. The evaporation extracts heat from the interior of the cooling unit – the temperature drops. The compressor draws in the refrigerant, compresses it and passes it on to the condenser. Here, the absorbed heat is released to the atmosphere. The refrigerant liquefies again and flows to the evaporator, where the cycle begins again.

Associated Products

Quick View

Dometic PLB40 40AH Compact Power Pack

EAN-13 : 4015704280098

12 FAQs on the Dometic CFX5-95DZ Dual-Zone Portable Compressor Coolbox and Freezer

What are compressor coolers?

Compressor coolers operate using a refrigerant that changes from liquid to gaseous state in the evaporator. The evaporation extracts heat from the interior of the cooling unit – the temperature drops. The compressor draws in the refrigerant, compresses it and passes it on to the condenser. Here, the absorbed heat is released to the atmosphere. The refrigerant liquefies again and flows to the evaporator, where the cycle begins again.

Excellent cooling performance even at extreme ambient temperatures
Refrigeration and deep-freezing
12 / 24 / 100 – 240 volts
Low power consumption
Suitable for solar operation
Integrated Battery protection

WE WILL BE LIVING IN OUR VAN FULL TIME FOR OVER A YEAR; CAN THE CFX COOLER BE ON AND RUNNING FOR AN EXTENSIVE PERIOD OF TIME?

Yes, as long as the product is maintained, there's no reason why the product should not last years.

CAN YOU PUT THE CFX ON THE BACKSEAT OF A CAR? DOES IT HAVE TO BE LEVEL? WILL IT OPERATE SAFELY IN THE TRUNK OF A CAR?

You should have no trouble operating out of either location, it will be fine as long as it's mostly level; the CFX range is designed to opperate at up to a 30% angle. Any more than a 30% incline will impede performance, and we do not recommend placing the CFX unit on it's side at all.

CAN YOU SIT ON THE TOP OF THE CFX LIKE A BENCH? HOW MUCH WEIGHT CAN THE LID HOLD?

Yes, the cooler is sturdy enough to be sat on. Although we wouldn't recommend anyone heavier than about 250 lbs. to sit on it.

IS THERE IS ANY HARM IN LEAVING THE CFX OFF/WITHOUT POWER FOR LONG PERIODS OF TIME (3+ MONTHS)?

There should be no trouble storing it for long periods of time without power, if the unit is clean and empty. Just ensure that you plug it back in and allow enough time for the unit to acheive the required temperature, especially if you are planning to store temperature sensative items during your trip.

WHAT AMP FUSE SHOULD BE USED BETWEEN MY AUXILIARY BATTERY AND THE FRIDGE?

We highly recomend a 15 amp fuse in this instance.

ARE CFX COOLERS SUITABLE TO BE LEFT OUTSIDE?

The CFX range is marketed as weatherproof and can stand to be in a little bit of weather. However, we do suggest you use a little common sense. If it's going to be a pretty bad storm, it should be stored inside.

DO THE CFX COOLERS MAKE NOISE WHILE RUNNING? HOW LOUD ARE THEY?

The CFX range is very quiet- we know of many customers, including ourselves, that have slept next to it in a vehicle or van without issues. The exact decibel (dB) measurement is in the specs and is 37dB.

HOW LONG WILL THE COOLER HOLD TEMPATURE WITHOUT POWER?

From internal testing the "stuff" inside your CFX will warm up at approximately 1 degree Fahrenheit per hour, when the cooler is off. This was tested at 68F ambient temperature, compartment temperature of 38F, with cans of soda inside. Additionally the lid was left closed.

Remember- opening the lid frequently, a higher ambient temperature, and less "stuff" inside the CFX will cause the items to warm up faster.

IF ON SOME TRIPS, I DON'T NEED ALL THE SPACE AVAILABLE IN THE CFX95DZW, CAN I ONLY USE ONE COMPARTMENT (IE. COMPLETELY TURN-OFF ONE OF THE TWO COMPARTMENTS - THUS SAVING ON POWER CONSUMPTION)?

For our dual zones, the CFX75DZW and CFX95DZW, you can shut off one side to save energy or use it as a dry storage or pantry area.

The easiest way to do this is through the Dometic CFX app available on iOS or Android. You can also do this manually with the following steps:

1. With the CFX turned on, press SET until the temperature flashes on the compartment you want to turn off. Once the temperature is flashing, press the power button. Display will say OFF. To turn the compartment back on, repeat the previous steps.

THE LIGHT ON MY CFX KEEPS SWITCHING BETWEEN GREEN AND ORANGE IS THIS NORMAL?

Yes it is normal for the light to change from green to orange as the compressor cycles on and off.

WHAT FREE AIR SPACE IS REQUIRED AROUND THE PORTS NEARBY THE COMPRESSOR? WOULD 20-30MM BE SUFFICIENT?

The condensers are fan assisted, so they are fairly forgiving, but the more space you leave the better, as there will be less restriction to air movement. You would probably find performance OK at 30mm so long as the hot air could escape upwards. i.e. nothing covering the top of the refrigerator such as a shelf etc.

Seen this product cheaper? We will do our best to match it!

Click Here

Seen this product cheaper? We will do our best to match it!

Click Here

Further Information

Dometic Coolbox Buying Guide

Reviews

9 Customer Reviews on Dometic CFX5-95DZ Dual-Zone Portable Compressor Coolbox and Freezer

Can't Recommend This Frige Enough.

by Colin Jeeves (07 Sep 2019)

(5/5)

Am really impressed with this frige. Easy to use cools- freezes really rapidly, amazingly low powe use. If it lasts I will be more than happy.

Love It

by Nicola Spragg (12 Aug 2019)

(5/5)

Love the fact that we can now have cold wine and beer on a hot day in a field in the middle of nowhere! Amazing

The Best Travel Fridge Ever.

by Marcus Miller (10 May 2019)

(5/5)

If you have a car you will struggle with this one, however if you have a larger vehicle it’s ideal.
Used it in hotel rooms as well and it looks good wherever it is.
Lift the lid and it’s like opening the door to Narnia, it holds a lot.

Used in our mobile Gin bar!

by Miss Saunders (05 Sep 2018)

(5/5)

We have this in our mobile Gin bar and it works brilliantly. Keeps the ice frozen in the left compartment and we keep the tonic in the right side. Very durable and aren't worried of it breaking when kneeling on it or accidently banging it. Overall, it was expensive but was worth every penny!

Four Stars

by Pierre-dominique Bernard (02 Jun 2018)

(4/5)

cooling at -20" in my car is great.
I#m verry happy.
price could be cheaper

Great Fridge/freezer!

by Annika Pacheco Dos Reis (05 Jan 2018)

(5/5)

This is a great portable fridge freezer and it suits our needs perfectly! Yes, it's quite an investment, but it's totally worth it.
We have a raw fed dog, therefore the food needs to be frozen while stored. When we travel, we usually rent a self-catering apartment, but mostly there is no freezer or only a very small freezer compartment which is integrated in the fridge. So not really sufficient space for a weeks supply of frozen raw food. This was one of the reasons why we were looking into this portable fridge freezer. It's perfect! We can operate it via the car cigar plug and on arrival at our destination we simply carry it to the holiday accommodation and plug it in the wall socket. Also you can bring along your own frozen food. It's a bit big and also bulky, but we managed to fit everything nicely in the car. I can recommend this product!

Quality Allrounder

by Shepster (24 Jul 2017)

(5/5)

Excellent bit of kit. Very robust. Compressor is virtually silent. I sleep 2 Metres away n cant hear it. Its very simple to set up and use. Set the temperature and away you go. I have this running 24/7 in my campervan with 300 Watts of solar panels. It very frugal on electricity and you have piece of mind knowing tbat it will cut out before flattening your batteries. There is tons of space inside for food n tinnies.

Five Stars

by Steve-o (05 Nov 2016)

(5/5)

Excellent price and product

A Worthy Upgrade And Investment

by Raymond Smith (29 Jul 2015)

(5/5)

I did not buy my fridge from Amazon, but Amazon is as good a review site as anywhere else.

The main feature I needed for my fridge was the great and efficient performance when running from a 12V battery, and this fridge(and the others in the range I presume) is one of the best for this. I ran it from a portable battery for 22 hours without solar charging. I also have had it in the car overnight over to the next day with no problems. It has a built in meter to switch itself off if it detects a low battery. I suspect I will never need this though unless I leave it in the car for a couple of days without running the car.

It's quite a bit bigger and heavier than the standard cool boxes I have owned, but the performance is 'in a different league' and is probably worth the money if you do a lot of camping as I do.
If however you do a couple of weeks camping a year, then maybe it is a bit overkill.

Videos

4 Dometic CFX5-95DZ Dual-Zone Portable Compressor Coolbox and Freezer Videos

Exploded Diagrams

Instructions

Dometic CFX3-95DZ Operating Manual

Delivery Options

Returning an Item

If you’ve changed your mind about keeping your purchase, please return it in its original condition with proof of purchase and we’ll exchange or refund it. Unless faulty, this should be within 30 days of receiving your order. By original condition, we’d expect this to mean that you’ve kept packaging and labels, and that the item is undamaged and unused.

For further information of how to return your item, please visit the "Returning an Unwanted/Faulty/Damaged Item" section on our Help Page.
