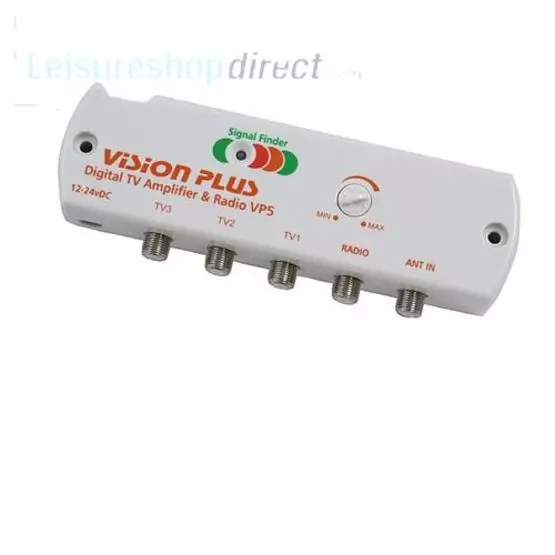

Vision Plus VP5 Digital TV & Radio Amplifier with Signal Finder

Product Ref: 257062
Brand : Vision Plus

£36.99(inc VAT) £49.99Product Ref: 257062
Brand : Vision Plus

(4.87/5) Read Reviews - Click Here (23 reviews)

View delivery optionsView product description

Delivery from £5.49
Loading stock details...

Seen this product cheaper? We will do our best to match it!

Click Here

Product Description

The Vision Plus VP5 Digital Amplifier is designed to enhance the performance of all non-amplified directional TV antennas. There is also a non-amplified outlet for FM Radio reception when used in conjunction with a UHF/FM antenna.

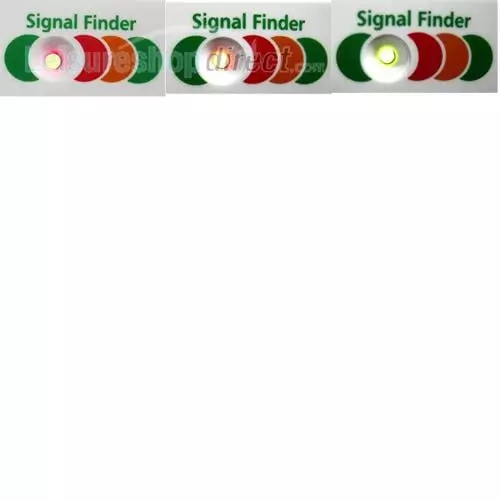

This unique product also incorporates a dedicated Signal Finder which will enable you to locate the strongest available digital TV signal. This powerful amplifier with high gain and low noise capabilities will ensure improved performance especially in poor reception areas.

Vision Plus VP5 Digital TV & Radio Amplifier with Signal Finder Features

On/Off switch
Variable gain control
3 TV outputs
1 FM Radio output
Frequency Range UHF 470-862 MHz
Frequency Range VHF 40-230 MHz
Frequency Range FM 88-108 MHz
Amplifier Gain Max 14dB
Gain Adjustment 0 to ? 15 dB
Flatness +1.5dB
Noise Figure 2.2dB
Output Impedance 75ohms
Signal Handling 80 dBµV

Specifications

Vision Plus part number: 09-6005/VP5
Dimensions: W 15.7cm x H 4.6cm x D 2.8cm
Consumption: 95 mA
Power Source: 10.8v - 28v DC

Seen this product cheaper? We will do our best to match it!

Click Here

Reviews

23 Customer Reviews on Vision Plus VP5 Digital TV & Radio Amplifier with Signal Finder

Replacement Amplifier

by Mr Anthony Buttling (15 Jan 2024)

(4/5)

Removed VP1 amplifies originally fitted, (remove screw above unit and pull up) refit with the two screws provided, use same power supply and jobs done. If replacing internal lights with LED avoid nearest to Amplifier as will interfere with signal

Replacement TV Amp.

by Mr D. Gordon (18 Sep 2023)

(5/5)

I puchesed this to replace a faulty old STATUS unit on my sons newly purchased caravan. I found this product easy to install and it worked staight off, no messing about. Very pleased, as was my son.

Excellent Service

by Nigel Blake (24 Jul 2023)

(5/5)

Great service, quick delivery and kept informed.

Great Service

by Anthea Dawson (19 Mar 2023)

(5/5)

Good choice of items at competitive prices. Goods arrived well packaged.

Vision Plus Tv Amplifier

by Sharron Ramshead (12 Dec 2022)

(5/5)

Not the first item purchased from here. Always excellent service. Thank you

Led Worked Great

by Mr Skeats (10 Aug 2021)

(5/5)

Fitted to replace amp without led . Worked immediately . Tuned tv went to signal strength and could not improve on tv position so VP5 had nailed it. Anyone want to buy the old model?

Fantastic Signal Amplifier

by Stuart Fairweather (04 Oct 2019)

(5/5)

Works well and I particularly like the signal finder feature.

Works Perfect

by R Rich (29 Jul 2019)

(5/5)

Finds the tv signal just fine so easy to fit and use

Positive Upgrade

by Wookie1066 (25 Jul 2019)

(5/5)

I simply wanted the convenience of a signal strength meter without the hassle of an in- line unit. Also the option to couple up a radio instead of the external telescopic twig. This meets the spec on all fronts. Indicates well, simple replacement although slightly longer than the original Swift fitted VP unit. Happily recommend this item and with very short delivery, all is well

Vp5 Excellent Product

by A D Towell (16 Jun 2019)

(5/5)

Bought this VP5 version as we were having reception problems with the VP3
Love the LED indicator showing best position for the strongest signal
Perfect picture now, very peased
Alan

Better Than Before

by Sean May (27 Apr 2019)

(4/5)

I had an omni type aerial before and didn’t get any signal, for example in Braemar, where we like to go for a weekend break now and again.
I fitted this one, really straight forward to fit and tested it at home before we left, worked fine.

Now the real test was Braemar. Arrived, set it up, didn’t get a green light but more of a light orange.
Tuned in the TV and lo and behold we got channels. Not a lot mind you but enough to be able to watch usually the main channels, BBC1, STV, etc.

The following day I had to reset the aerial and retune, weather was poor though, raining quite a bit, maybe something to do with that?!?!
Anyway, it does work, enough channels for us as we don’t sit in the motorhome all day as we like to get out.
Please I purchased it put it that way 👍🏼

Good Product

by L. A. Tinsley (29 Mar 2019)

(5/5)

Easy to install in are caravan. Works well and easy to use.

...,

by Amazon Customer (26 Sep 2018)

(5/5)

Easy to fit. Much in proved to reception

👍👍👍👍

by Mr Doyle (05 Aug 2018)

(5/5)

Does the job

Perfect As Long As You Are Not Red/green Colour Blind

by Buckkop (17 Jun 2018)

(5/5)

Good built in digital signal finder, was dubious at first but actually works very well. Play around with the gain so you start with a bad signal and turn aerial and if no change just turn the gain up a bit. When you get lined up, turn the gain up as far as you can without getting any quality degradation due to amplified interference.

... It With The Vp5 The Signal Is Now 1000% Better Compared To The Old One Its Crisp & Clear ...

by John Prewer (23 Apr 2018)

(5/5)

i have a vision status 530 fitted to my caravan it had a vp1 booster fitted i have always a problem with tv signal outside the house so i have replaced it with the vp5 the signal is now 1000% better compared to the old one its crisp & clear so i look forward to my 1st outing in May & the areas that i am going to have signal issues

Vision Plus Great Buy.

by Amazon Customer (05 Nov 2015)

(5/5)

Great buy do,s exactly as it says really happy.

Five Stars

by Sheena Keenaghan (22 Nov 2014)

(5/5)

great and fast delivery

Good Product

by Jreeveuk (09 Nov 2014)

(5/5)

Does exactly what it says on the box. Brilliant picture on our touring caravan TV now. Excellent delivery arrived before stated date

Four Stars

by A. Webster (06 Oct 2014)

(4/5)

This amplifier works well and provides an easy way to align the Aerial on my caravan

Excellent Product And Does Exactly As It Says On The ...

by John Goodall (21 Aug 2014)

(5/5)

Excellent product and does exactly as it says on the box in our new caravan . . Very easy to replace the existing VP3 as screw holes and cable fittings are in exactly the same place . . It is so easy to use to obtain a good signal before switching on the TV . . Brilliant . .

Excellent Piece Of Equipment

by Alan Baxter (08 May 2014)

(5/5)

Did what it said. Easy assembly and use. Used it last week and found channels easy to find and would recommend.

Replacement

by Paul (16 Dec 2013)

(5/5)

I bought this to replace the original one in caravan that had packed in. Installed this unit it seems to be finding signal ok.
