The
Maxview VuQube 2 is a fully enclosed automatic satellite system designed to receive satellite TV and radio in the UK and Europe at the press of a button, using a wired control box.

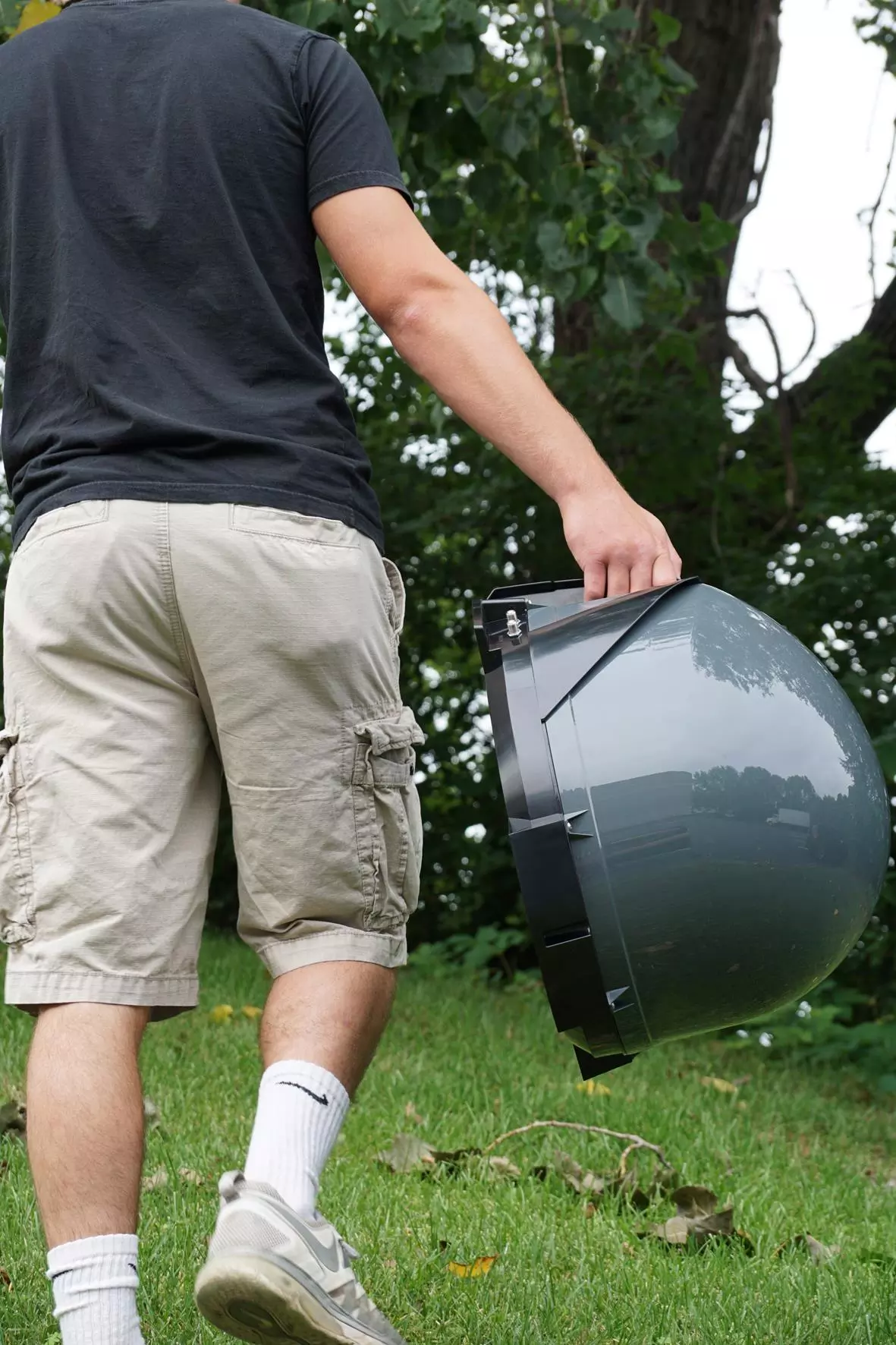

The unique form and integrated handle makes the Maxview VuQube 2 suitable for portable use and permanent roof mounting using the mount pack (sold separately).
The is compact and very portable. It is fully automatic so there is no set-up required, just select the satellite and it will do the rest! It is compatible with all UK satellites and is contained in a strong and weather resistant globe casing which is lightweight and ergonomically designed.

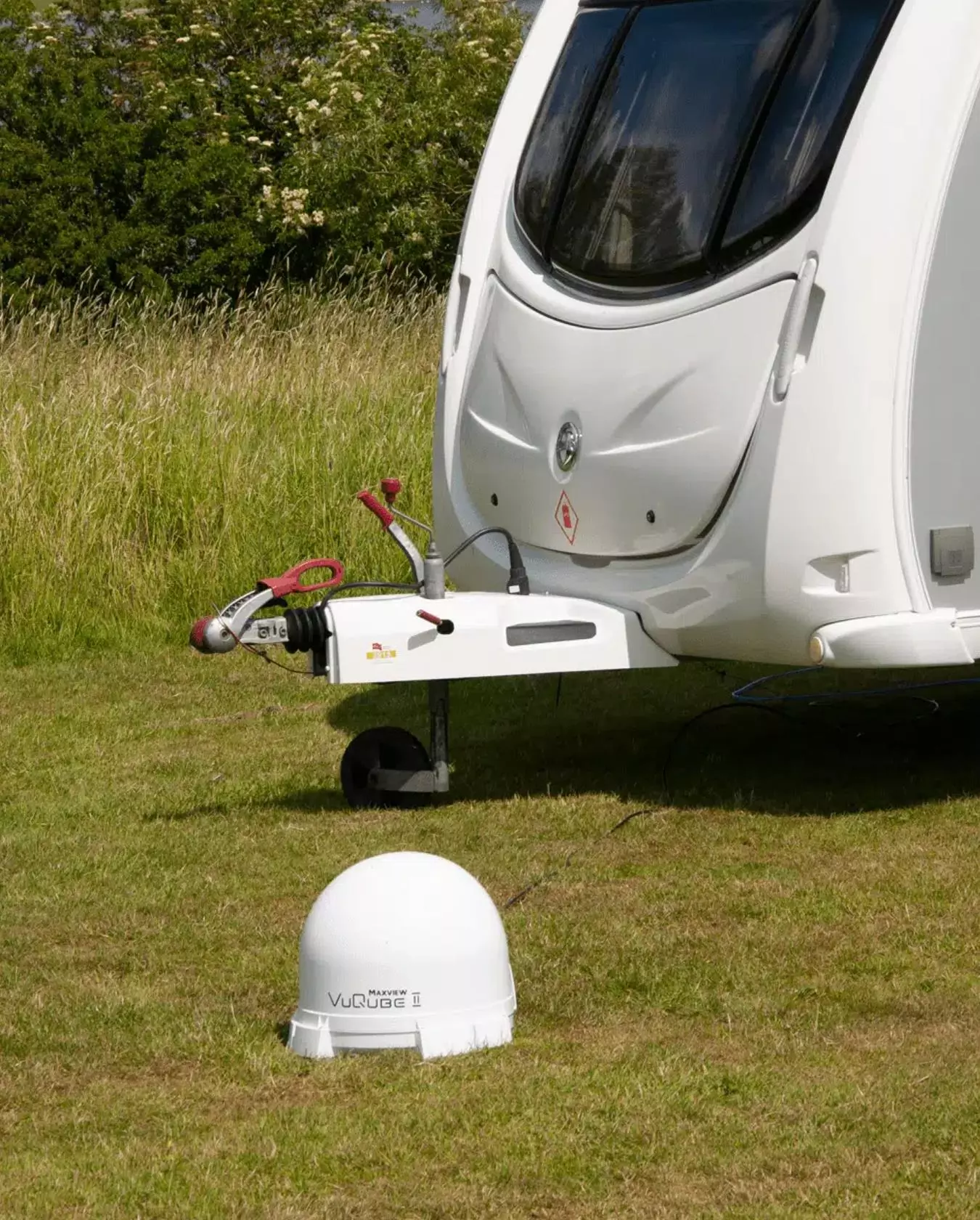

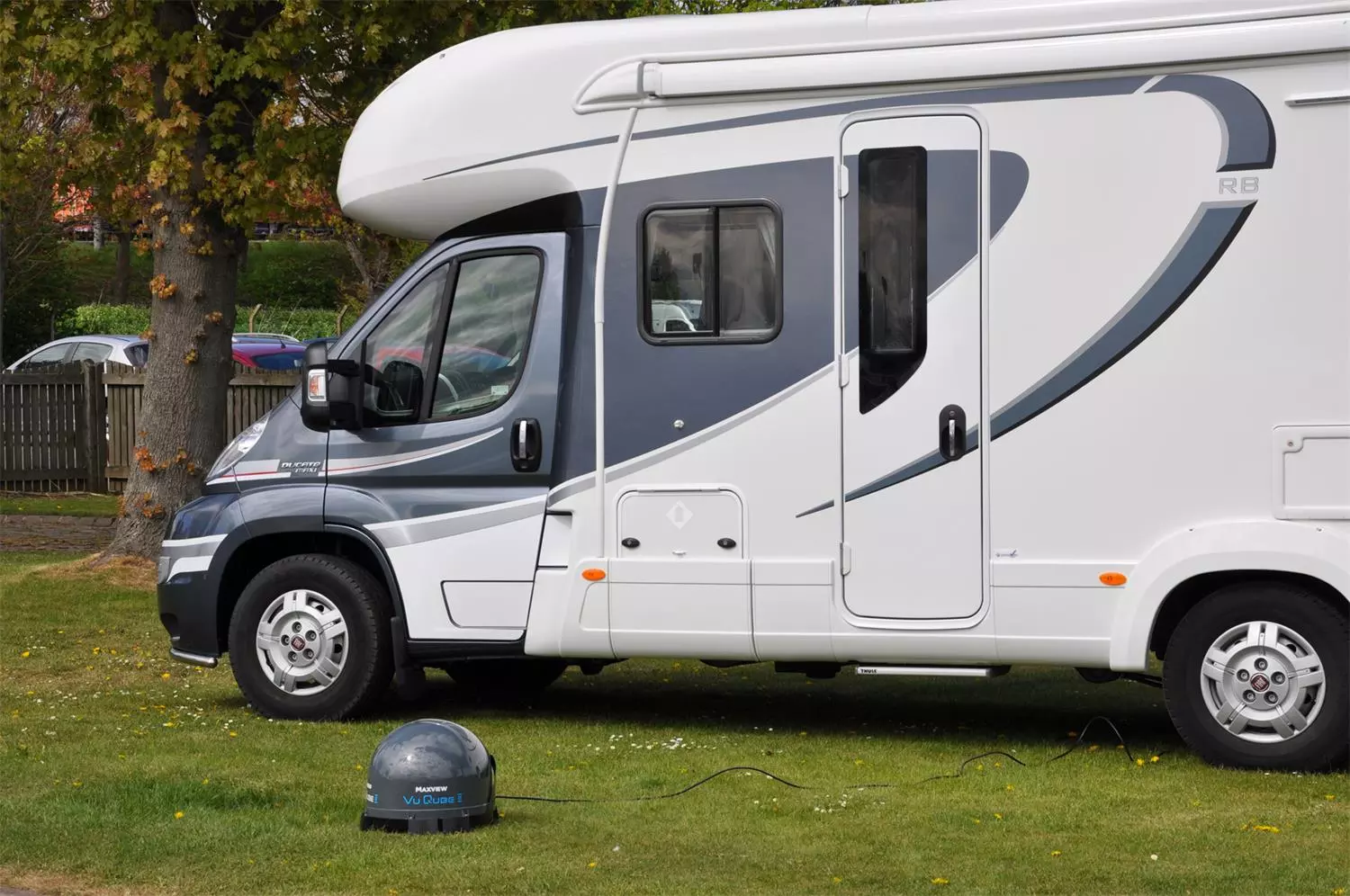

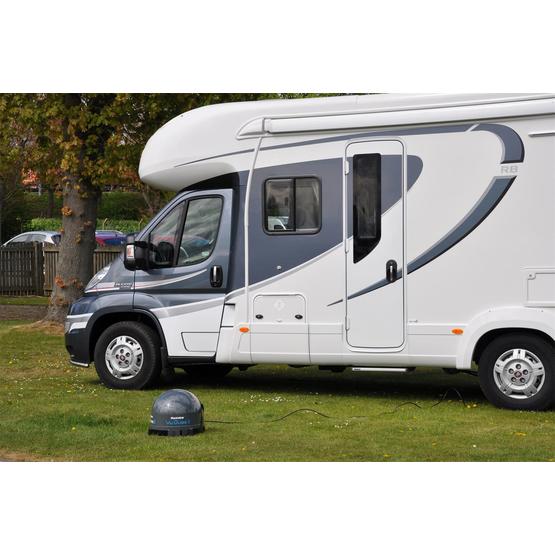

Once you arrive on the campsite the Maxview VuQube 2 is self-levelling on uneven or sloping ground so is quick and easy to get ready for use.

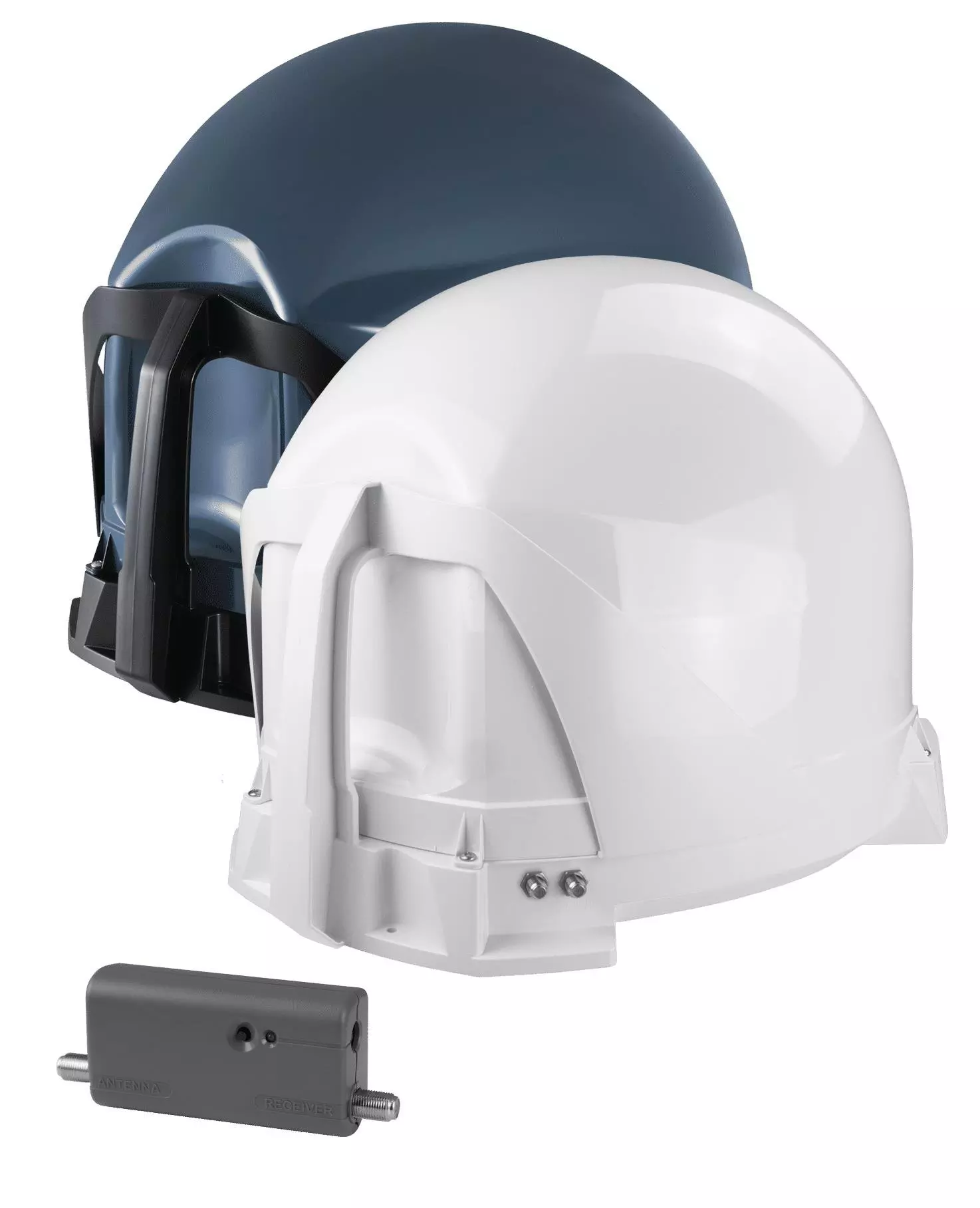

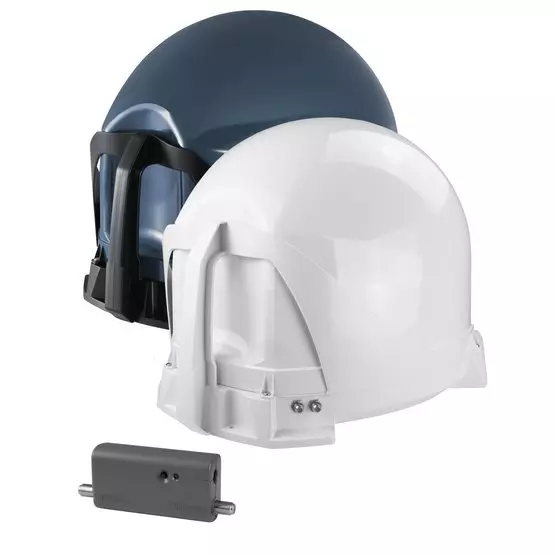

Maxview VuQube II Roof Mount and Portable Dome Features
- Twin LNB as Standard. For use with PVR’s, SKY+™ or 2 receivers in different locations
- Includes Velcro to mount control box conveniently inside a cupboard
- Designed and tested for outdoor use
- High quality, durable and robust construction
- 2 year guarantee
What's in the box?
- VuQube 2 Dish Unit
- VuQube 2 Control Panel
- 5m ‘F’ to ‘F’ Cable
- 0.9m ‘F’ to ‘F’ Cable
- Cigarette Adaptor 12V Power Supply
- Cable Entry Cover
- Instructions
Important NotesThis does not come with a satellite receiver but is compatible with any UK satellite receiver such as Sky, any free-to-air receivers. Also, a number of modern caravan TVs such as some of the
Avtex TVs have built in satellite receivers.

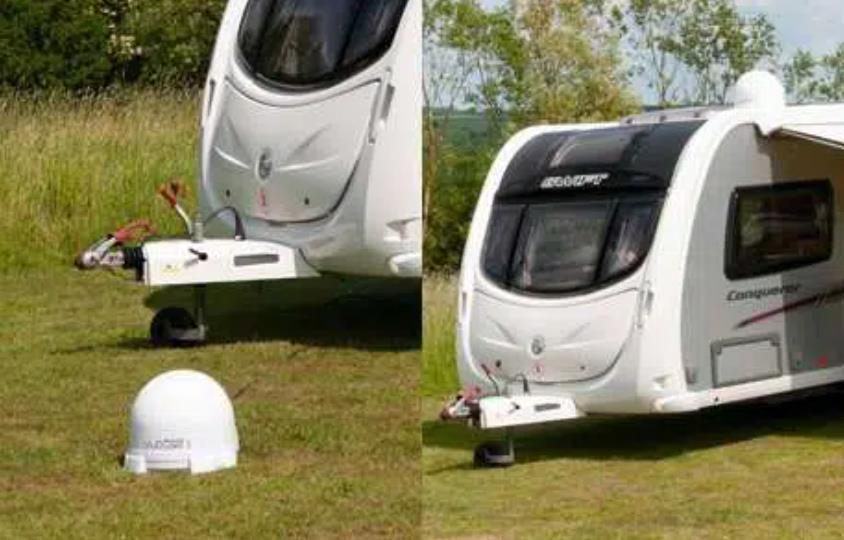

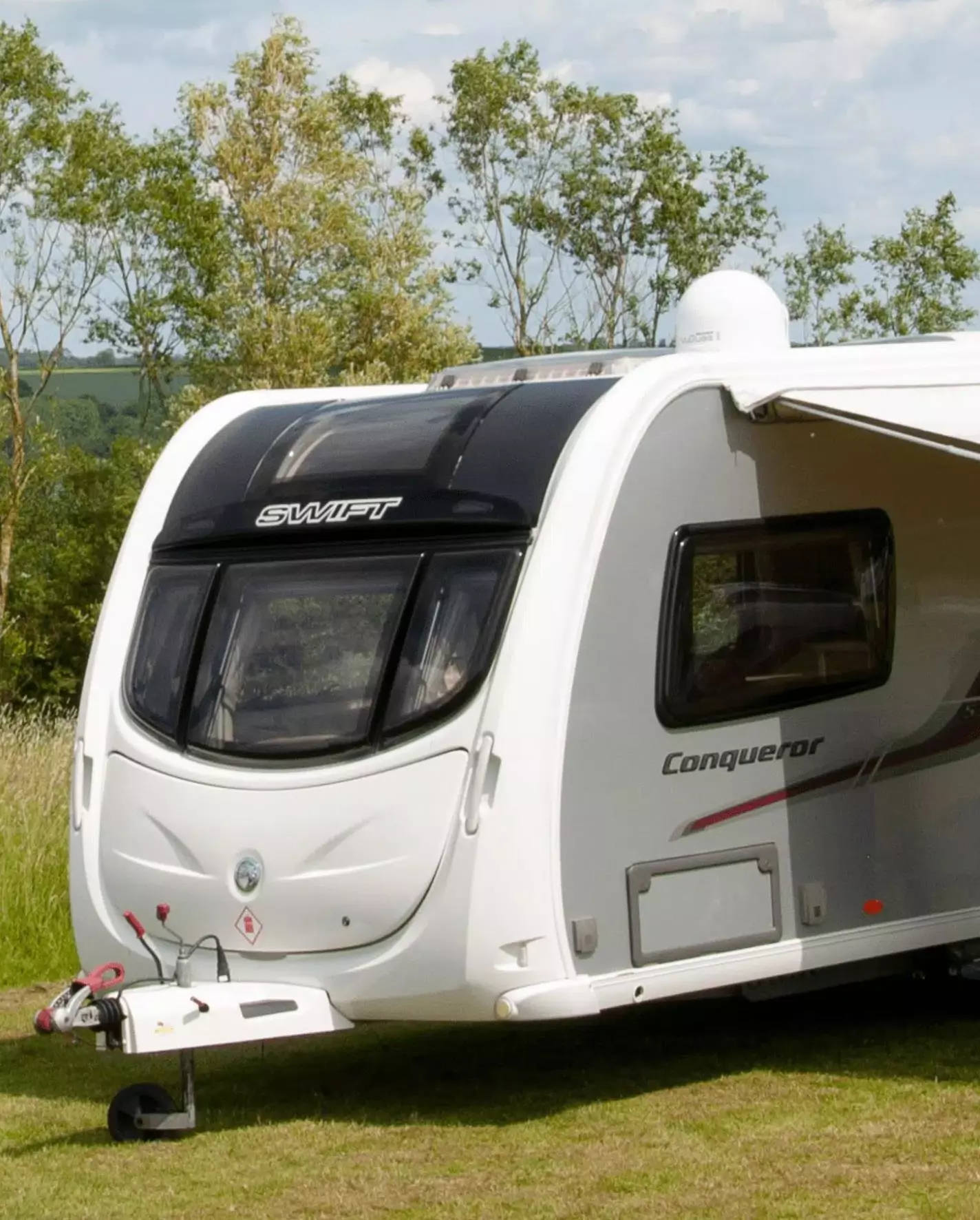

Multi-Purpose UseThe unique form and integrated handle makes the VuQube II suitable for portable use and permanent roof mounting using the mount pack MXL023/FKIT (sold separately).
Compact and Lightweight DesignFor easy handling and compact storage.

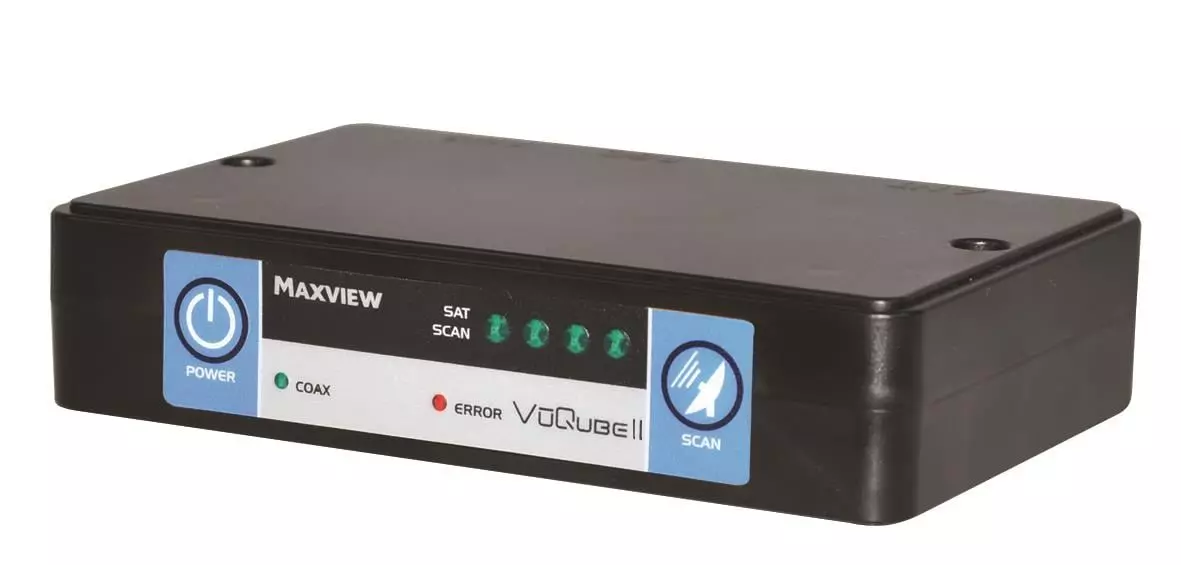

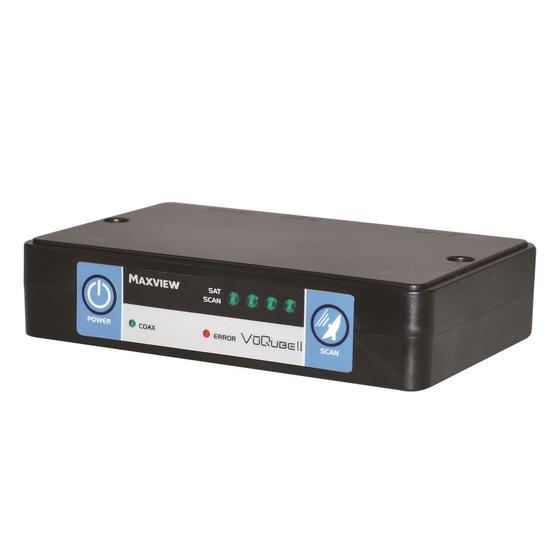

Control Box with 4 Pre-programmed SatellitesAllows the user to operate the VuQube II from the Control Box located inside the vehicle. Pre-Programmed to locate major UK and European satellites within range.

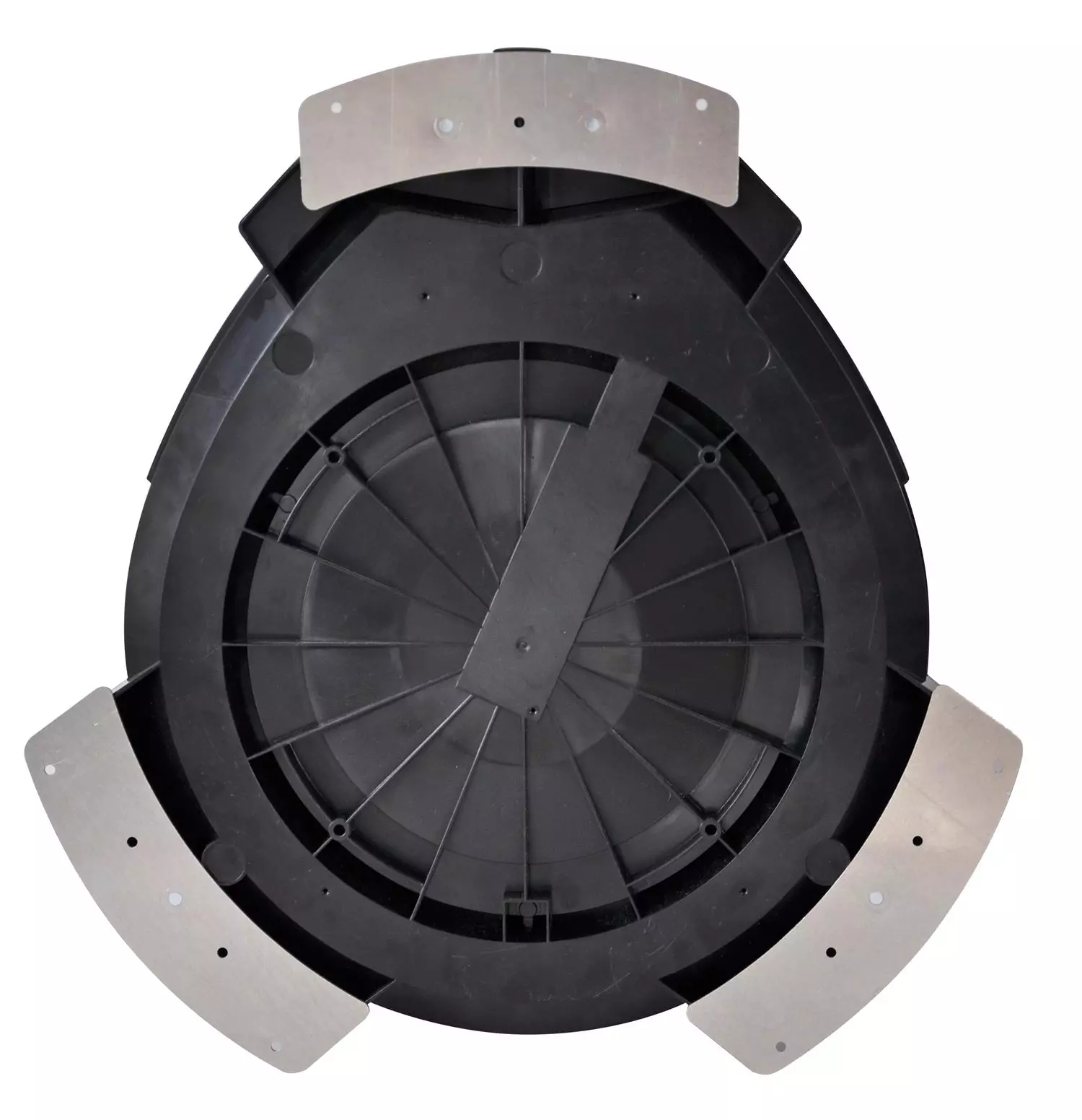

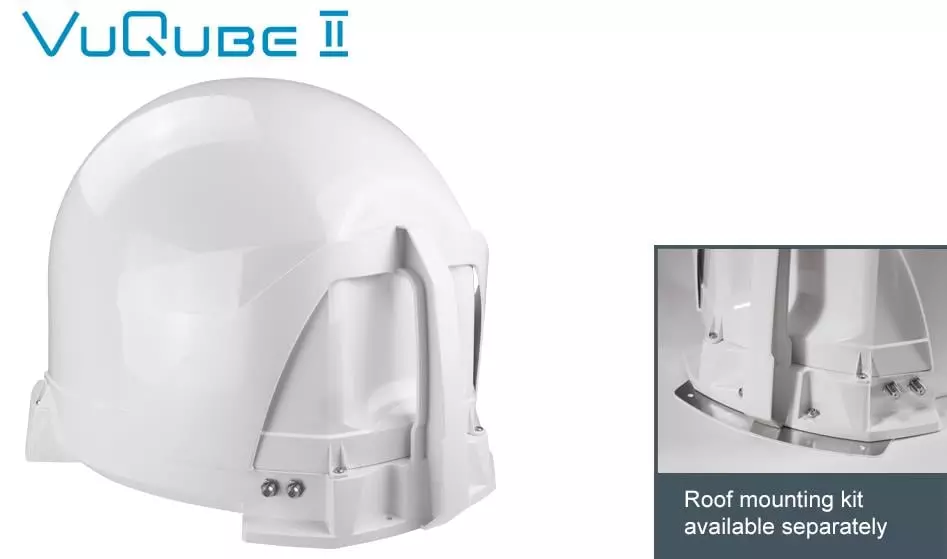

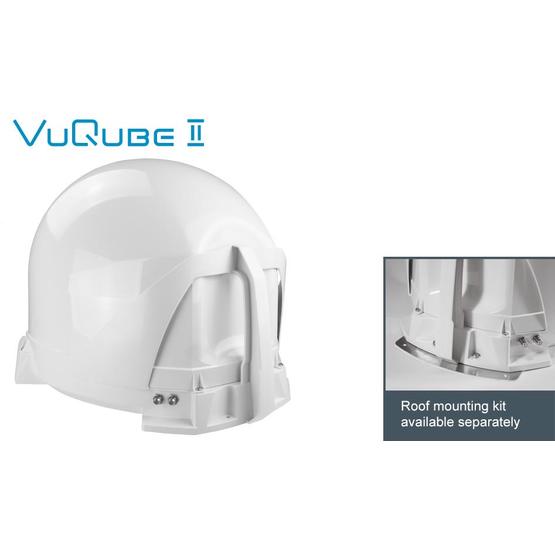

For roof mounting onlyYou will need to purchase a VuQube II Mounting Pack – available separately (MXL023/FKIT) see related products below.

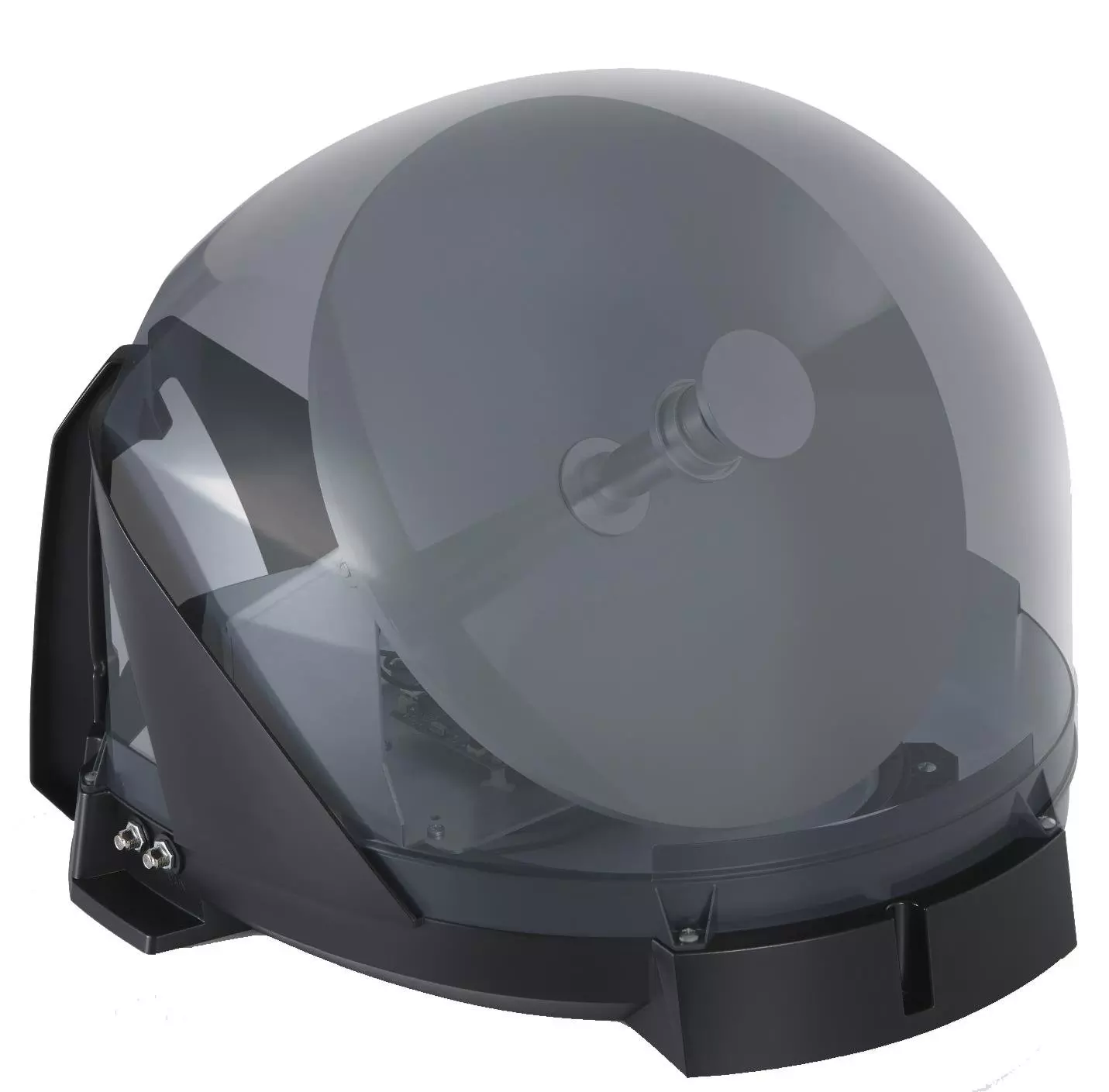

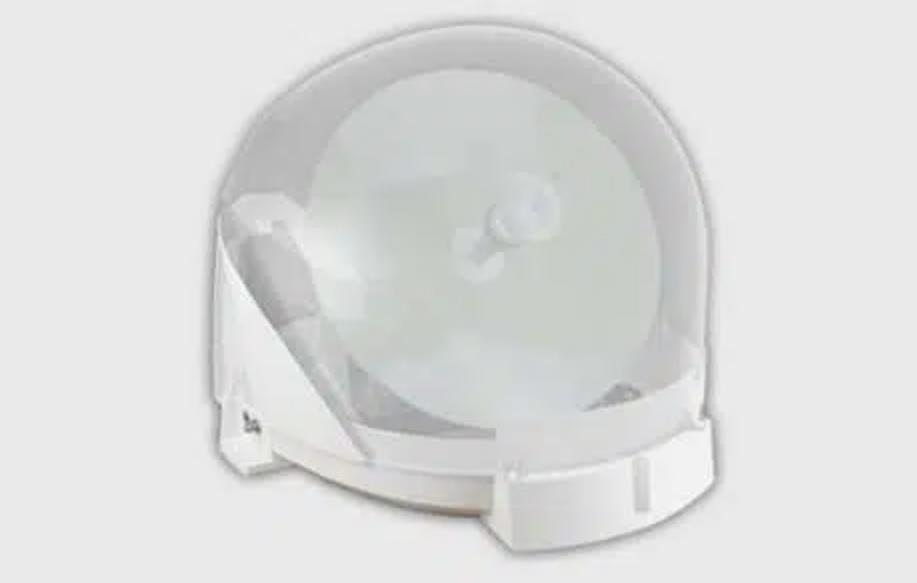

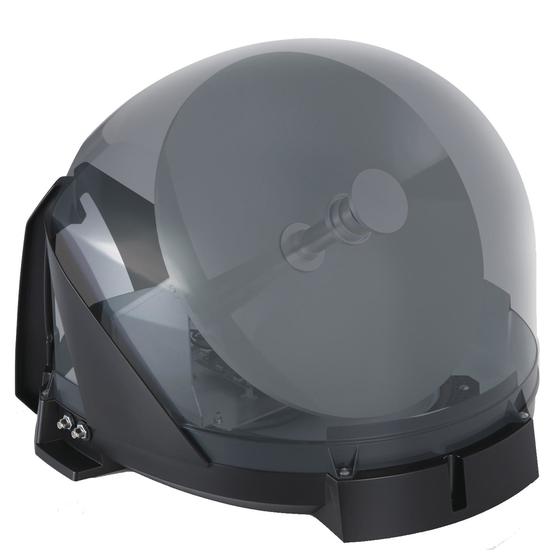

Dish SizeThe fully enclosed 35cm cassegrain dish provides the performance of a 50cm offset dish designed for operation and reception in the UK and Europe.

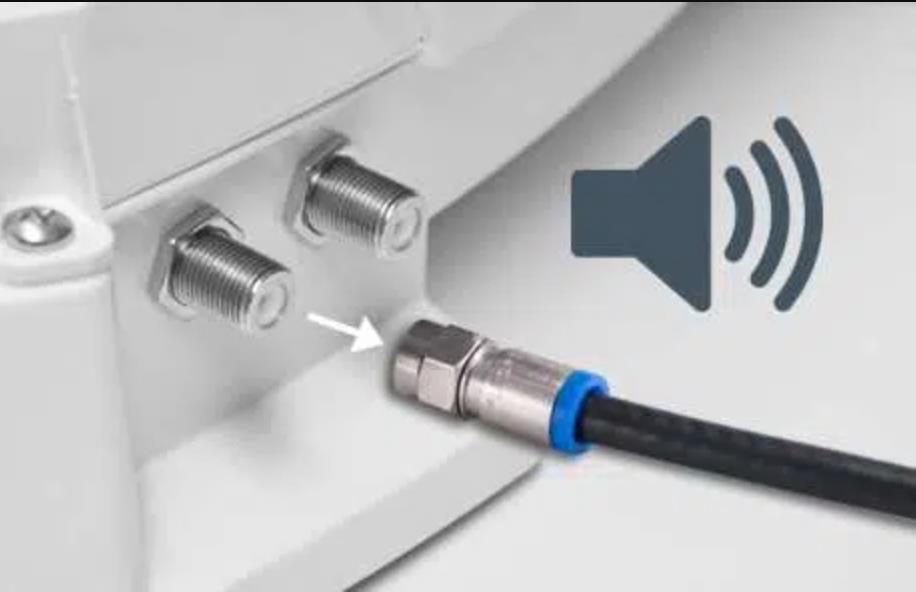

Anti-Theft DeviceAlarm sounds when coaxial cable is disconnected from the system during use. For additional peace of mind, the integrated handle can be used to chain the system to any secure object.

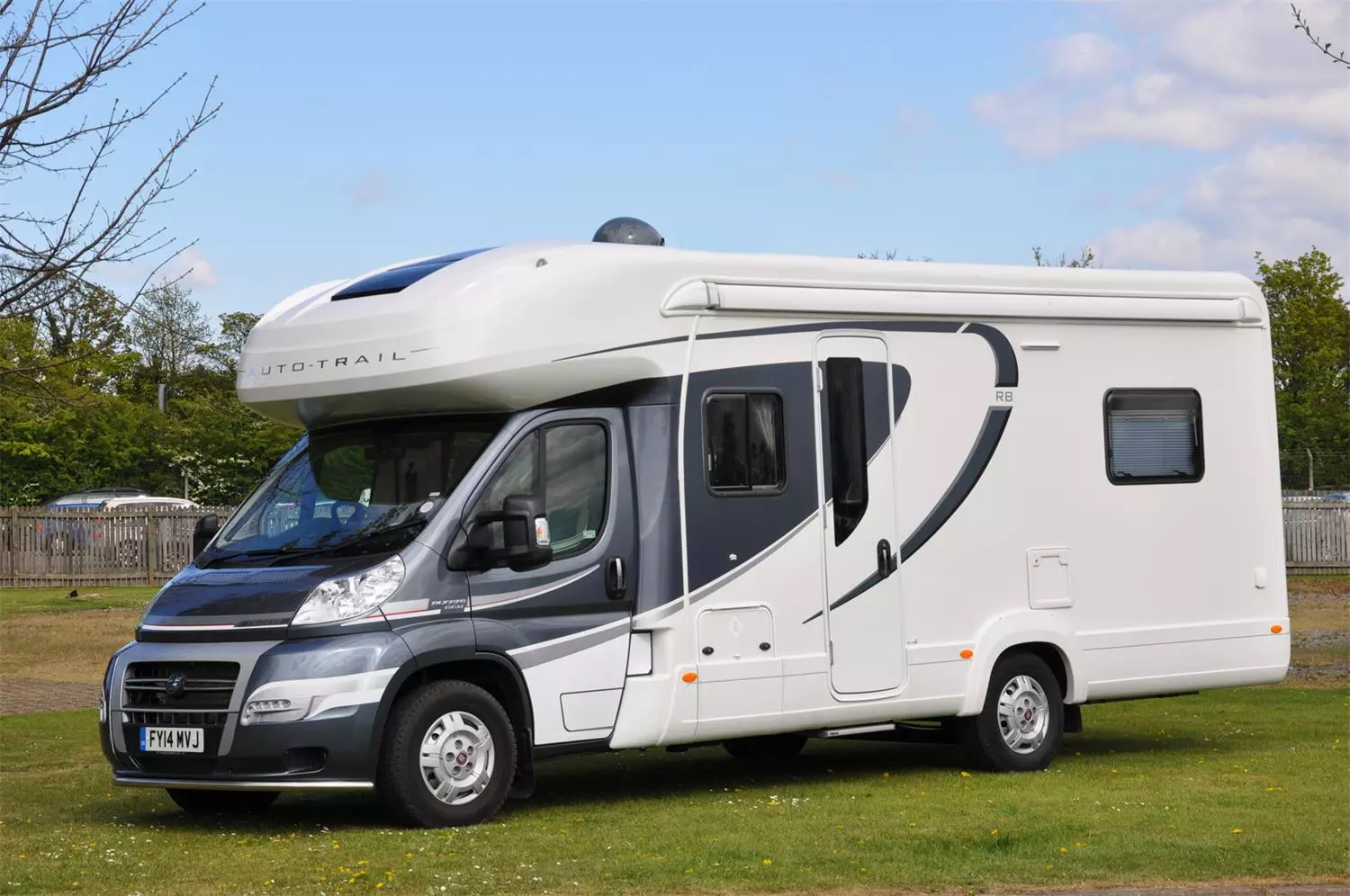

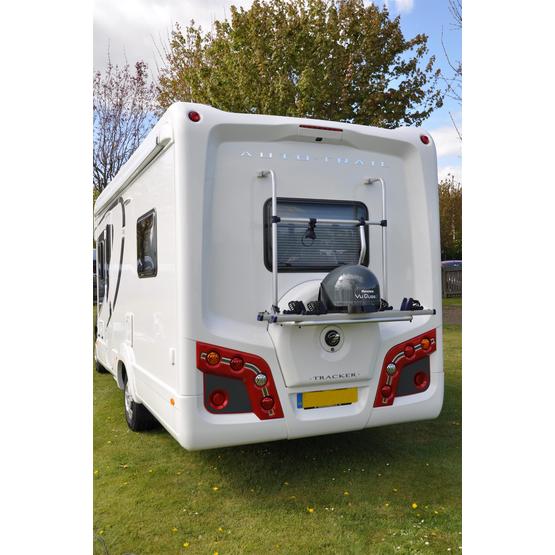

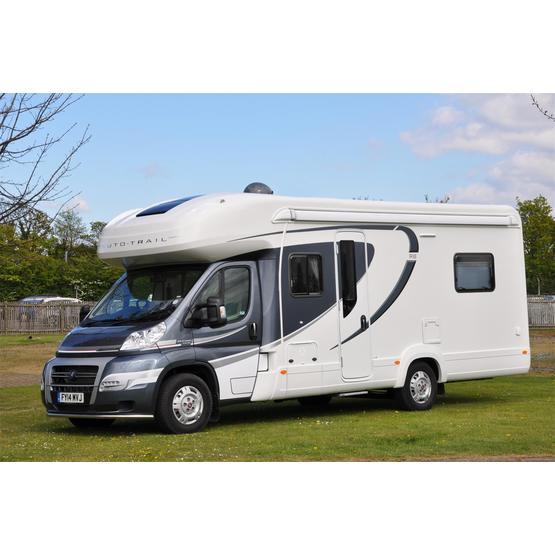

Portable use in any outdoor environment and roof mount on motorhomes, caravans and Motorhomes
Compatibility: Transmissions from satellites worldwide (EK/European satellites as standard). Compatible with all SD/HD free-to-air satellite receivers including most SKY™ receivers
Pre Programmed Satellites: Astra 1, Astra 2, Astra 3, Hotbird
Operation: Automatic
Mount Type: Portable or roof mount
Coaxial Cable Length: 10m
Head Unit Power Input: 12V passive. LNB and antenna unit powered through coaxial cable from control box
Control Box Power Input: 12V cigarette adaptor
Standby Power Consumption: 0.65A
Search Power Consumption: Up to 0.85A
Installation: DIY or professional
Elevation Range: 18° to 43°
Weight: 4.1kg

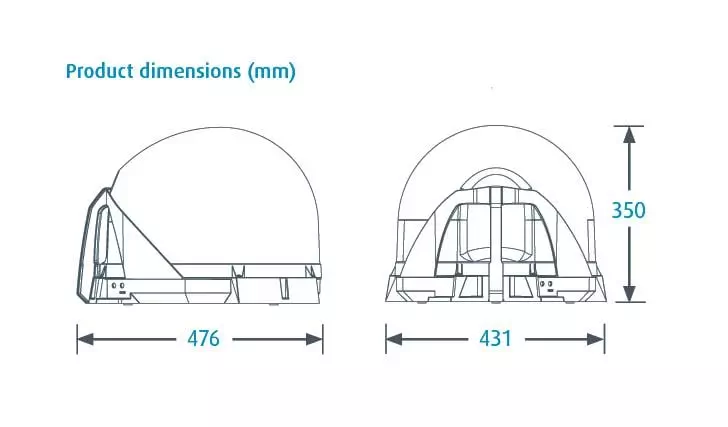

Product Dimensions: H: 350mm x W: 431mm x D: 476mm
Associated ItemUNDERSTANDING SATELLITE TVIntroductionDue to the geographic limitations of terrestrial TV, satellite TV is a popular choice for vehicles, as these transmissions serve a much larger geographic area. The below information outlines the various factors which must be considered when choosing your preferred satellite system.
Required EquipmentTo receive and watch satellite TV, you will require a TV, a satellite receiver and a satellite system. Satellite receivers are available on subscription (such as Sky®) or with Free to Air functionality, requiring no subscription. More information on Maxview’s Free to Air Receiver can be found here.
Choosing Your Satellite SystemIt is necessary to adjust the position of the dish every time the vehicle is moved; the function of the satellite system is to position the dish in the correct position.
A range of systems have been developed to offer this functionality, from completely manual systems which have a simplified alignment process, through to fully automatic systems which are capable of locating a satellite at the press of a button. Satellite systems are available in both portable and roof mount applications.
Choosing Your Dish SizeAll systems are available in a variety of dish sizes, ranging from 35cm up to 85cm. The dish size determines the geographic area from which you can receive your desired satellite, this area is known as the satellites ‘footprint’. For UK channels, we require the Astra 2 satellite.
Generally, the larger the dish, the greater the geographic area or ‘footprint’ from which you will receive satellite TV. Typically, to receive Astra 2 a 65 cm dish offers coverage into the centre of France, whilst an 85cm dish will offer coverage approaching the Spanish border.
The official Astra 2 footprint is displayed below, as well as our estimations for Maxview’s specific dish sizes. These maps are designed to help you make an informed decision on your required dish size, based on the areas you wish to travel.
