Truma Trumavent TEB2 Fan Control Switch

Product Ref: 228063
Truma Code : 40000-46000

Discontinued Product Ref: 228063
Truma Code : 40000-46000

(4.91/5) Read Reviews - Click Here (23 reviews)

View delivery optionsView product description

Discontinued

Product Description

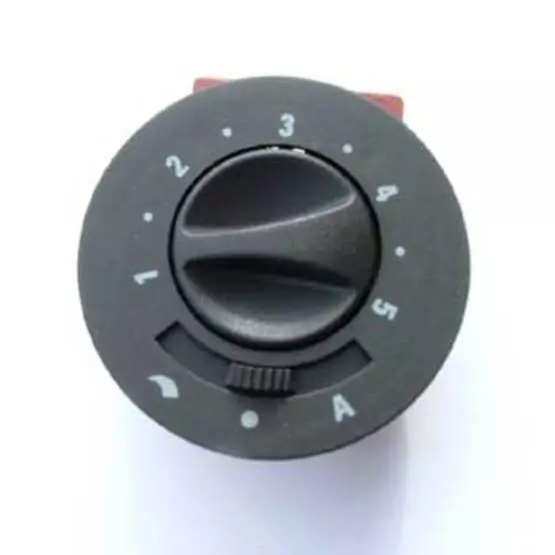

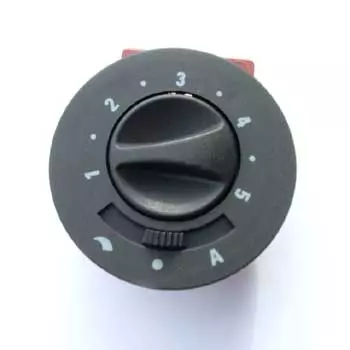

Truma Trumavent TEB2 Fan Control Switch.
Control knob for fan for Truma Fires. Switch at bottom selects manual or automatic control of fan. Dial controls speed of fan. Complete with small circuit board.

SAFETY NOTICE:

All products and parts must be installed by engineers who hold a valid certificate of competence. The installation must comply with the manufacturers instructions and local regulations. We cannot be held responsible if these instructions are not followed.

Please note we are a camping, caravan and motorhome company and NO gas product that we sell is suitable for mains (domestic) gas supply.

EAN-13 : 4052816011998

6 FAQs on the Truma Trumavent TEB2 Fan Control Switch

How do I get my heating vents working in my avondale dart 525/4 2008 please

On top of your fire you will have a fan control which is designed to control the speed of the fan that distributes the warm air around the caravan. This control panel is our ref. 128063. Positioning the switch to the left will cause the fan to run continuously. Positioning the switch to the left to the 'A' position will allow the fan to become thermostatically controlled and the fan will cut out when the room is at the desired temperature. The dial controls the speed of the fan.
If the fan fails to operate then it is normally a problem with the control switch which you may have to replace.

Parts required for Truma S3002 with auto ignition and Trumavent. Hi Tom, some kind so and so relieved my caravan of the front casing and control knobs for the above - see http://campl.us/cNbeaGZ5GeG for a photo of what's left. Please could you advise which parts I need to order to replace the missing items? Thanks.

That is not nice! the parts that you need are our ref. 128025 and 128063.

Hi we have a Truma s3002 and the gas side works and the left hand side on the switch works but when you slide the switch t a position it does not do anything. Sometimes when u put pressure on it it will come through. We have had the front off and if you put pressure on the white connecter it worked? What part do I need t get it blocking hot air through? Thanks

It sounds as if you need to replace the control switch 128063 but cannot be sure if this will solve the problem.

Our Truma fire works well but the fan has stopped working the elect cable is OK - is there a separate fuse for this?

No there is not normally a separate fuse. You may find that the control knob assembly has failed, our ref. 128063.

We have just bought an Autotrail Arapaho with a Truma S3002 blown air heating system. On the top right side is the control for the blown air system. My question is what does the arrow type symbol on the left side of this control mean?

I assume that you are referring to the fan control , our ref. 128063, This has an 'off' position in the middle. The left hand position will cause the fan to run continuously (normally used if you wish to circulate air during warm weather). The right hand position, marked 'A' is the automatic position used when the heater is operating and the fan will cut out when the vehicle temperature has reached the thermostat setting.

Truma S 3002 blower not working on auto or manual, lots of heat, what can this be?, is there a fuse? just stopped

This would normally be a problem with the control switch, our part 128063. It could also be the small printed circuit board on the fan housing or the fan itself has failed.
Firstly remove the front cover of the fire and make sure that the cable is correctly attached to the control switch.

Seen this product cheaper? We will do our best to match it!

Click Here

Reviews

23 Customer Reviews on Truma Trumavent TEB2 Fan Control Switch

Yippeeeee

by Andy (22 Sep 2020)

(5/5)

Ordered part. Which was lucky as truma didn’t answer any emails. Bit pricey , but it worked as soon as I replaced it. Heat at last.

Commutateur

by marc (14 Mar 2018)

(5/5)

parfait

Good But Expensive

by Mike Butler (16 Aug 2017)

(5/5)

Good service and product but price over the top.

Baggie Caravaner

by Baggie caravaner (10 Jun 2017)

(4/5)

I was pleasantly surprised that I could still get parts for my old caravan. This is a perfect replacement.

Gareth

by Gareth (23 Mar 2017)

(5/5)

Exactly as expected - great service too !

TRES BIEN

by Fabrice (15 Feb 2017)

(5/5)

PRODUIT IDENTIQUE LIVRAISON RAPIDE

Caravan Parts

by mr davey (10 Feb 2016)

(5/5)

good packing good time thankyou

Very Good Product...

by Mr MIEVIS (16 Oct 2015)

(5/5)

just the good part to repair my Trumavent for S5002 (11years old)

Heater Blower Failed On Motorhome

by Mr Boundy (23 Apr 2015)

(5/5)

The heater blower failed on our motorhome one cold night and looking on leisure shops website the next day found on their blogs that it was most likely the fan control switch. I took a chance and ordered one which arrived the next day and fitted it to our trumavent heater after looking at diagram on the site and low and behold it worked immediately. I suggest anyone with any truma problems to look on the site before booking into a dealer. Many thanks

Trumavent Control Switch

by Yesman (30 May 2014)

(5/5)

Our Trumavent blower developed a 12volt problem and was blowing its 5 amp fuse everytime we went to use it until it got to the point it was blowing the fuse even with the switch in the off position, Ordered a new switch as it was the cheapest on the net I could find, it was delivered within 2 days, fitting was simple, didn't even have to remove the fire front. sorted the problem and now we have the blower working again, Great service by Leisureshopdirect as usual.

Does The Job

by Caravaner (25 Feb 2014)

(5/5)

Truma heating /fan control Having read your help FAQ's bought one of these it worked straight away we now have a toasty caravan thanks

Excellent Service

by Mr Fazal (01 Feb 2014)

(5/5)

Had a problem with the caravan heater not switching on properly. Staff knew immediately that it was a Trumavent Fan Control Switch that I needed and it arrived within 48 hours. Fitting it was easy and took less than five minutes. Truma heater now working perfectly. Was quoted over £100 by a local caravan repair shop to fix the problem - solved for £26.22! (cost of part). Will definately buy from this company again.

Fan Controller

by s campbell (12 May 2013)

(5/5)

excellent replacement matching original that lasted over 10 years of permanent use...highly recommended

TEB2 Fan Control Switch

by Mr Wilson (16 Apr 2013)

(5/5)

I ordered one of these to try and sort out the fan not operating at anything other than the slowest speed. Very easy to fit once the fire front has been removed. Unfortunately the problem continues so back to the drawing board.......

Truma Control Knob

by Mr hagen (13 Apr 2013)

(5/5)

5 star product.

Truman Heater Control

by Telnilz (13 Jul 2012)

(5/5)

Good quality replacement and easy to fit.

Fast Service And Easy Fit

by Mr Woodcock (21 Mar 2012)

(5/5)

"Truma Control Knob" (actually an assembly including printed circuit board for the control of the heater's fan speed) - delivered on second morning after ordering in the evening - fitting it a doddle - back in control!

Truma Control Knob

by Dalesmanbod (23 Feb 2012)

(5/5)

Very helpful when contacted Leisureshop by phone regarding my Truma Heater fan switch. Part arrived next ..Part easy to fit and works fine.Thank you for your help.

Truma Control Knob

by RexH (11 Jan 2012)

(5/5)

Prompt delivery, easy to fit, solved the problem that the fan only ran to manual settings, not auto. One piece of track burnt out on the PCB. Too lazy to fix it and not sure of the implications to the electronics if I mucked it up. All works fine now.

Truma Contro Knob

by mags (11 May 2011)

(5/5)

we needed a new one. Excellent worked fine. Excellent service thank you

Truma Control Knob For Fan

by Dave the rave (28 Jan 2011)

(4/5)

Prompt delivery, easy to install, works okay, hope it stays that way for some time.

Truma Control Knob

by Marjy (19 Sep 2010)

(5/5)

Item despatched very promptly. Kept well informed of delivery progress. This switch has now solved the problem of an uncertain connection which would only work occasionally because one of the metal pins was cracked in the switch supplied with the caravan when new.

Truma Control Knob

by Caravaner (12 Aug 2010)

(5/5)

This product seems to be the high quality that I expected and was it easy to replace the old one which had broken probably due to misuse. So far it seems to be working perfectly and I have no reason to suspect that it's performance will continue to be excellent in the future.

Videos

Exploded Diagrams

Trumavent TEB 2

Trumavent TEBT
