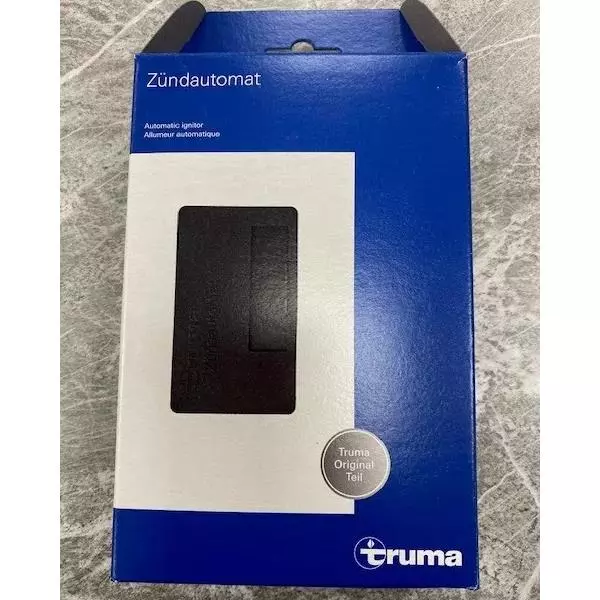

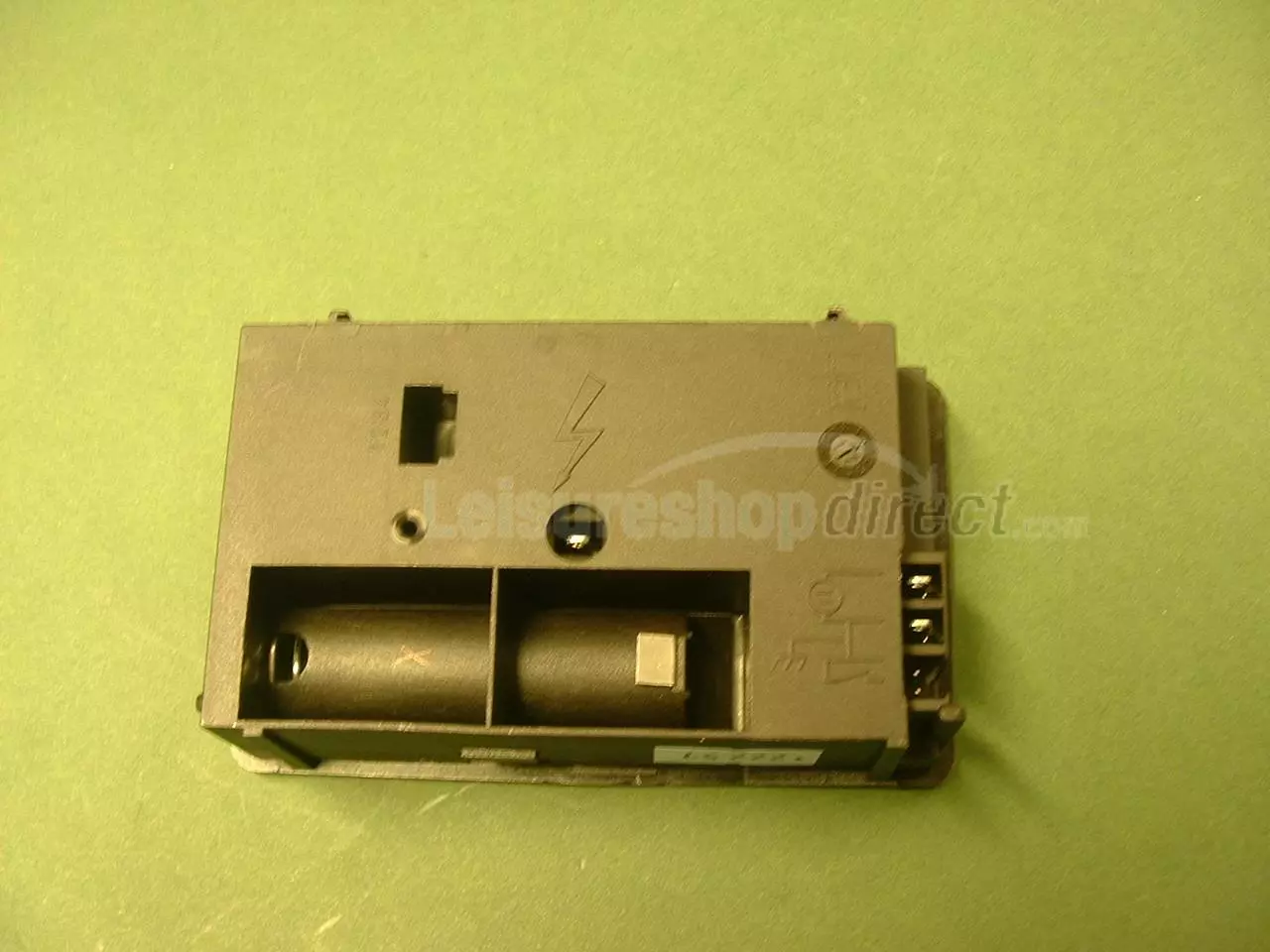

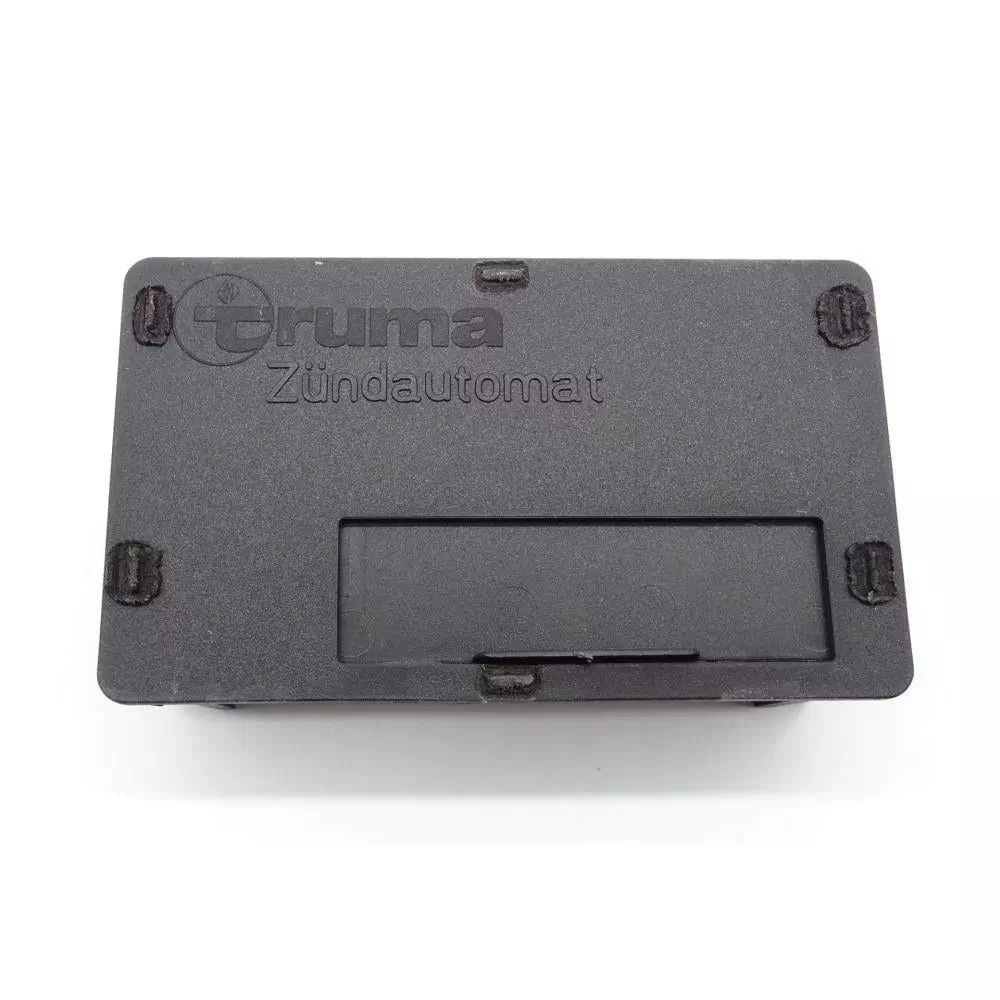

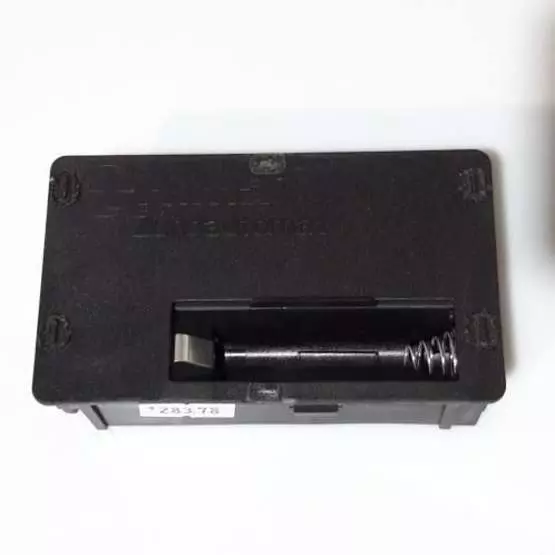

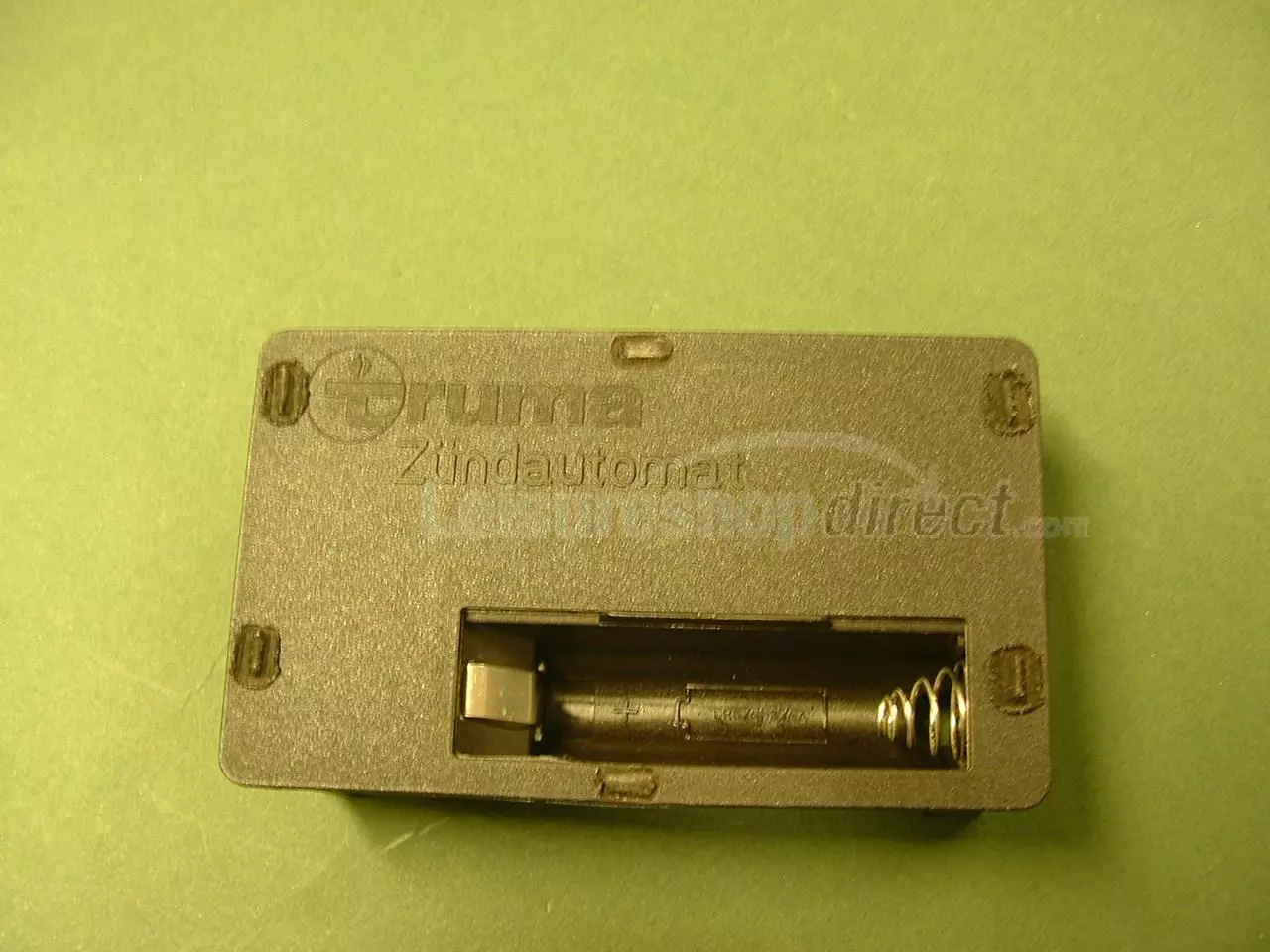

Truma / Carver Auto igniter box only - for Trumatic S3002/S3004 & S5002/S5004

Product Ref: 228051
Truma Code : 30050-53000

£99.45(inc VAT) £113.99Product Ref: 228051
Truma Code : 30050-53000

(4.67/5) Read Reviews - Click Here (15 reviews)

View delivery optionsView product description

Delivery from £7.49
Loading stock details...

Seen this product cheaper? We will do our best to match it!

Click Here

Product Description

Auto igniter for Trumatic S3002. Fitted after 07/99 but can be adapted for earlier fires. Does not include battery. Also for S2200, S3004 and S5002/S5004.

Compatible with the earlier SL3002

SAFETY NOTICE:

All products and parts must be installed by engineers who hold a valid certificate of competence. The installation must comply with the manufacturers instructions and local regulations. We cannot be held responsible if these instructions are not followed.

Please note we are a camping, caravan and motorhome company and NO gas product that we sell is suitable for mains (domestic) gas supply.

EAN-13 : 4052816033679

8 FAQs on the Truma / Carver Auto igniter box only - for Trumatic S3002/S3004 & S5002/S5004

hi tom is it normal for the ignition to stay on on a truma s5002 heater after the main burners are lit mine stays on all the time

No, the igniter should cut our once the flame is lit. It is likely that you have a faulty igniter. Our ref. 228051

I have replaced the battery for my caravan's Truma heater; it lights the fire but when turned off the igniter continually clicks; please can you advise?

This either a problem with the igniter box itself or a problem with the microswitch in the gas valve. There is a brown and black wire that connects the gas valve to the igniter and these wires can be unplugged from the igniter. If when unplugged you still have the problem then you will need to replace the igniter box, our ref. 128051. If however the sparking stops when you unplug the wires then you will need to replace the microswitch and this is a workshop job as gas connections need to be broken.

I have a truma 3002 ultraheat fire ,after lighting the gas fire the ignition keeps on sparking but the fire can be adjusted and the controlled, can you please solve this for me. Barry

You have a problem with the igniter box which almost certainly needs replacing. Our ref. 128051.

Good day. Having problems with non functioning automatic igniter in S3002/S heater, have read your replies to similar queries. Battery OK. Wise initially to perhaps change the igniter box if so do you stock them and ? price. Look forward to hearing from you, Alan Seaton.

If you are getting no 'clicking' from the igniter then it could be a faulty igniter or perhaps a faulty switch in the gas valve. To check if the switch is faulty disconnect the brown and black wires from the igniter and connect the two terminals together. If the igniter starts clicking then the switch is the problem. If not then replace the igniter.
The igniter is our part 128051 at £50.99.

Truma ultra heat fire, works fine but the piezo ignition is constantly clicking once it has warmed up. The fire is used a lot. What do I need? Many thanks Kevin ex mechanic

I assume that you have the automatic igniter box fitted to your fire which can be the problem if the ignition is constantly clicking. Alternatively the ignition electrode could be at fault. Easiest to change the igniter box first as the fire has to be removed to change the electrode.

My truma heater has auto ign and its not working can can you supply me with a new one it has a battery in it bottom left of heater. s3002- s5002 I believe. please email me back and i will buy it , I cant open your parts list.

The part that you require is our part 128051. please telephone to order.

Hi, Truma S3002 piezo igniter is continually sparking even when not being used .Will only stop when battery is removed hope you can help

This problem can have two causes. Firstly the igniter itself could be faulty. Secondly the switch in the gas valve, that is 'made' when the knob is depressed, may have gone 'short circuit'. There is a thin brown and black wire that leads from the switch to the igniter. If you unplug this from the igniter and the clicking continues then it is a problem with the igniter. If the clicking stops then the switch is the problem. (not easy to replace).

I have a Trumatic S3002 heater with auto igniter, on Saturday the igniter stopped (no clicking noise), replacing the battery did not make any difference. I tried it many times Saturday and Sunday but without success, this morning I tried again and it worked but with quite a limp sounding click. Which part usually fails ? Thanks

First try another battery, the one that you have fitted may be faulty - best to use a duracell or equivalent. If the problem persists then there is probably a fault with the igniter itself or these may be some debris or condensation on the gas burner preventing the igniter's path to earth which creates the spark.

Seen this product cheaper? We will do our best to match it!

Click Here

Reviews

15 Customer Reviews on Truma / Carver Auto igniter box only - for Trumatic S3002/S3004 & S5002/S5004

Truma Spare

by Hugh Foley (13 Oct 2024)

(5/5)

As expected

Truma Igniter Box

by Brian Thompson (06 May 2024)

(5/5)

Very fast efficient service

Very Happy With The Service

by Graeme (05 May 2024)

(5/5)

Dispatched promptly and charged a realistic amount for P&P. Would definitely use again. Thanks

Great Service.

by Mr cronin (16 Mar 2023)

(5/5)

Ordered an ignition switch for gas heater in my autotrail, prompt delivery to Southern Ireland, Fitted it and works perfectly. Thanks Benny

Replacement Trumatic Igniter Box.

by John Kendall (03 Dec 2019)

(5/5)

Swift delivery. Excellent service.

Igniter Box For Truma Heater

by Lorraine Milford (10 May 2019)

(5/5)

Thanks to the internet, I determined the igniter box for the Truma heater needed replacing, in a hurry. Leisure shop direct could meet the deadline. I was kept informed of the order progress, the igniter arrived in time for me to fit it. This replacement one is slightly better than the original, inasmuch there is sliding cover over the battery (which I did not even know was there!). Works perfectly.

Truma Igniter Box S3002/S3004 & S5002/S5004

by Sarah Glavin (24 Oct 2018)

(5/5)

When we lit our gas fire, it would continue to click unless you took the battery out. We emailed Leisureshopdirect and they were brilliant and recommended that we buy the above unit. It was delivered really quickly, installed really easily and no more clicking when the heating is on. Really pleased.

Truma Auto Igniter Box

by Ronald winwood (16 Oct 2018)

(5/5)

Product very good - just had a problem with delivery my parcel came with just my postcode on - had deal with Royal mail - my urgently needed part came very close to being returned to sender.

Truma S3002 Auto Igniter

by Mr Wright (12 Nov 2016)

(5/5)

I had a problem with my Truma heater, not igniting, sent an email to Leisuredirect and they suggested a solution, i.e. replacing the igniter. I live in Spain and I received the replacement igniter within 7 days. First class service

Good Service And It Works

by K Allan (06 Jul 2016)

(3/5)

It arrived within a week of order and it works ok.

Broken Fire

by Mr S (31 Mar 2016)

(5/5)

Fixed the fire

Good Service

by Andy Sweetman (09 Mar 2016)

(4/5)

A new part required due to failure of the original at 13 years old. A direct replacement, therefore easy fit and it works. All I could ask for

Auto Ignighter

by BobbyB (31 Oct 2013)

(4/5)

Good quick fix.

Wilkins Motorcaravans

by Mr Wilkins (24 Jul 2012)

(4/5)

Fast efficient service at the right price

Mr Williams

by Mr williams (05 Jan 2012)

(5/5)

this product has solved a big problem i was having with my caravan fire
