Caravan & motorhome technical questions

Question

Hi tom just wondered if you can help I bought a 1993/4 bailey pageant imperial and the toilet wont work checked the fuse its ok changed the pump but cant get any power to it many thanks nigel.

Answer

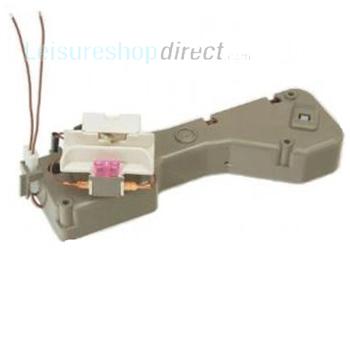

It is likely that one of the switches that controls the pump is faulty. These are included in the toilet mechanism, our ref. 137147.
To remove firstly remove the centre part of the flush knob. At the bottom of the flush knob there is a cross headed screw that you must remove.
The mechanism is on the roof of the cassette chamber and is held in place by four screws. A mirror is handy to locate the screws. Drop the mechanism down and detach the electrical connection. Check the continuity of the two micro switches. One of the switches is 'made' when you operate the flush knob. The second switch is 'made' when the waste cassette is inserted and is to ensure that the toilet cannot be flushed when the cassette is removed.
