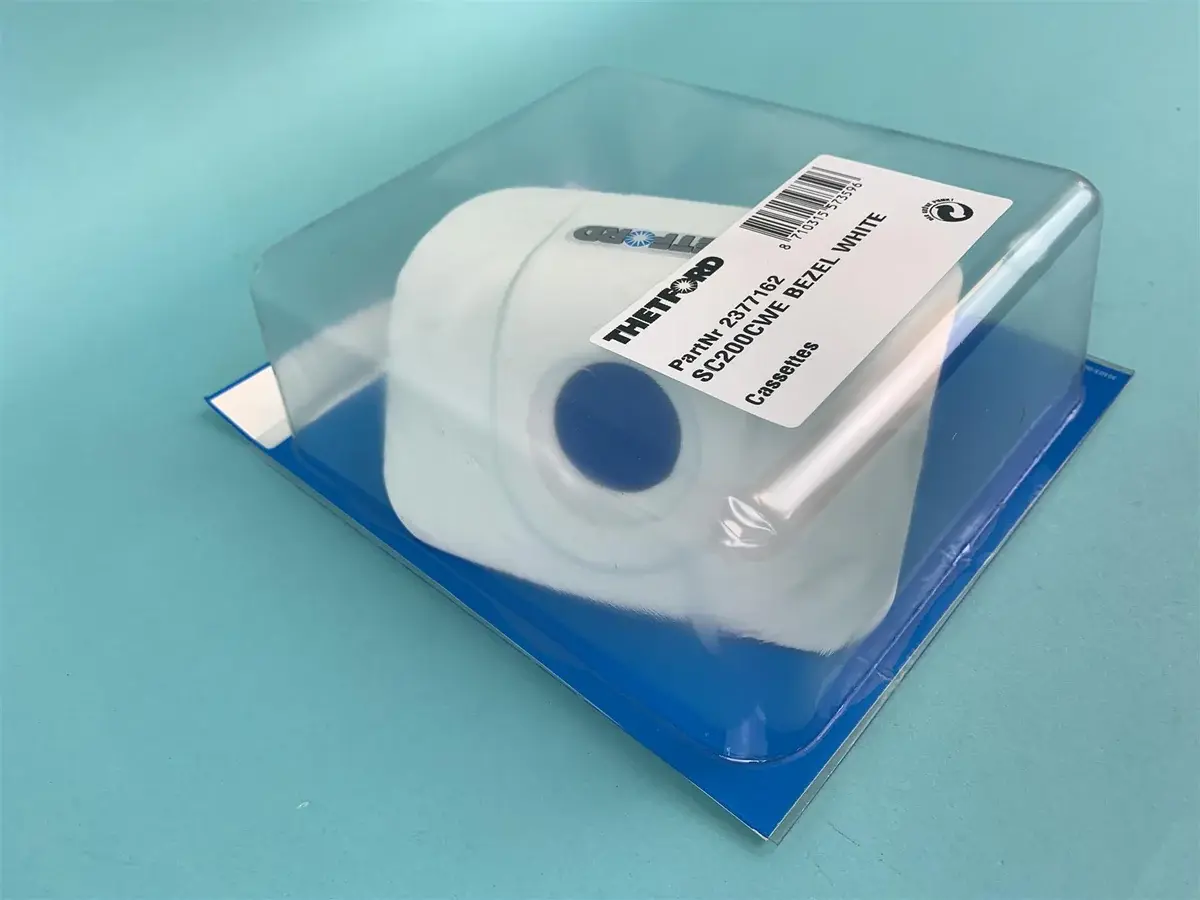

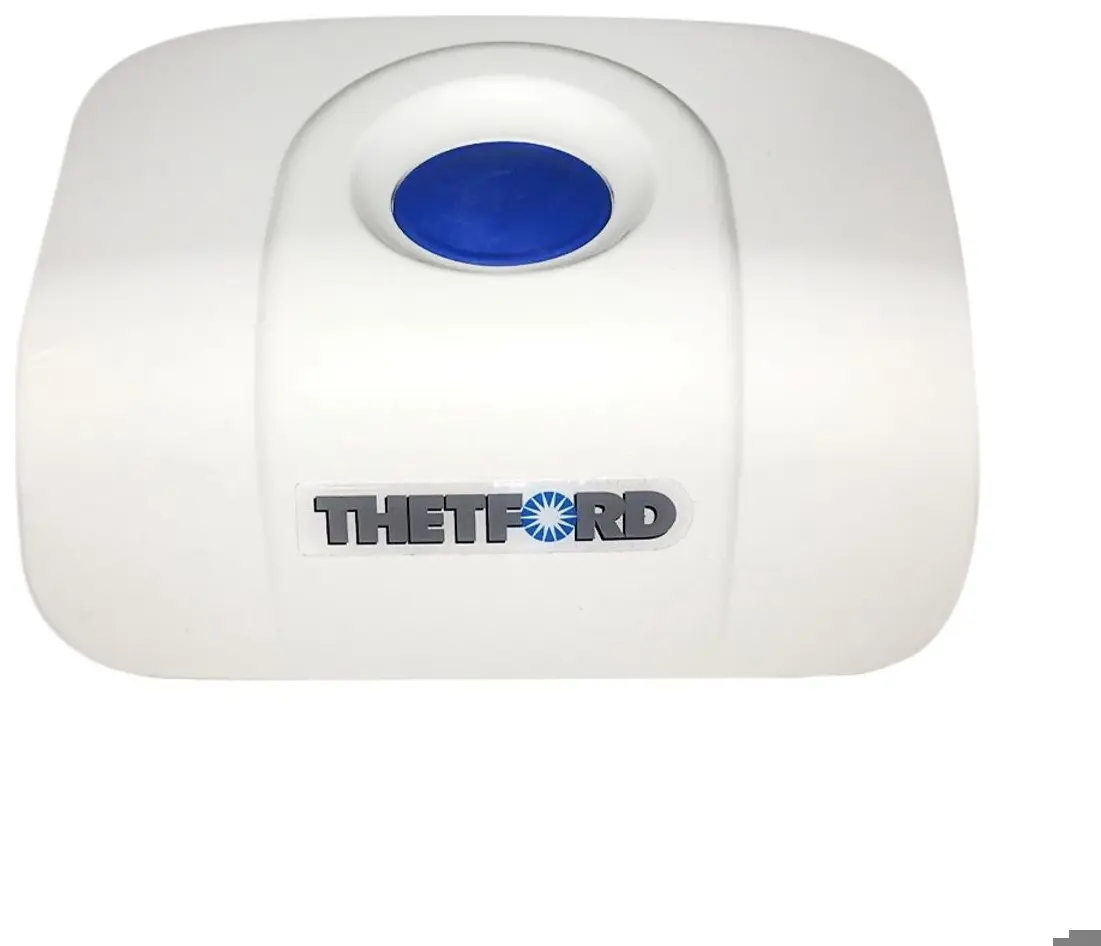

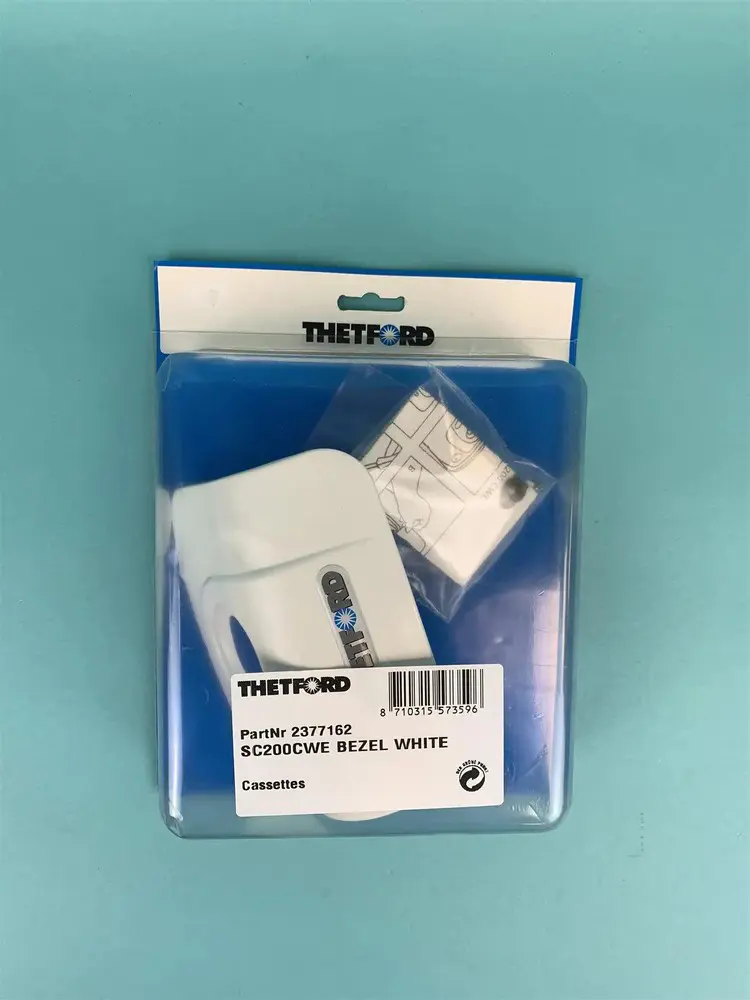

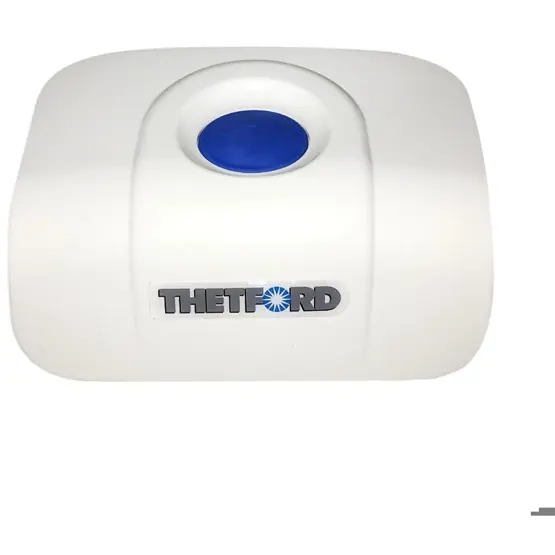

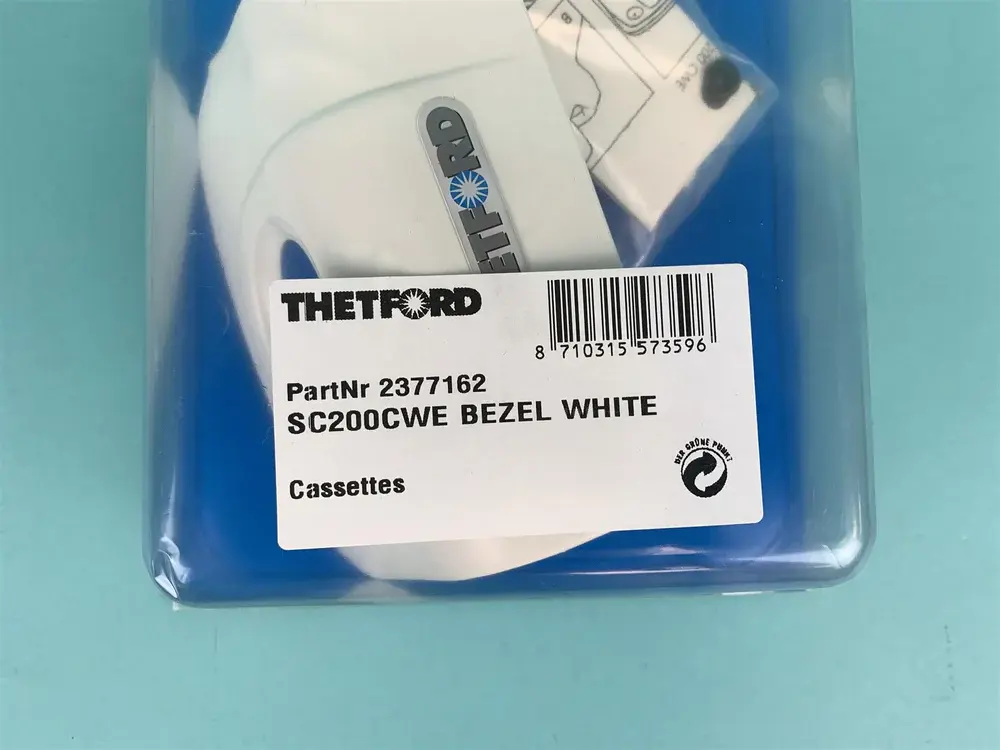

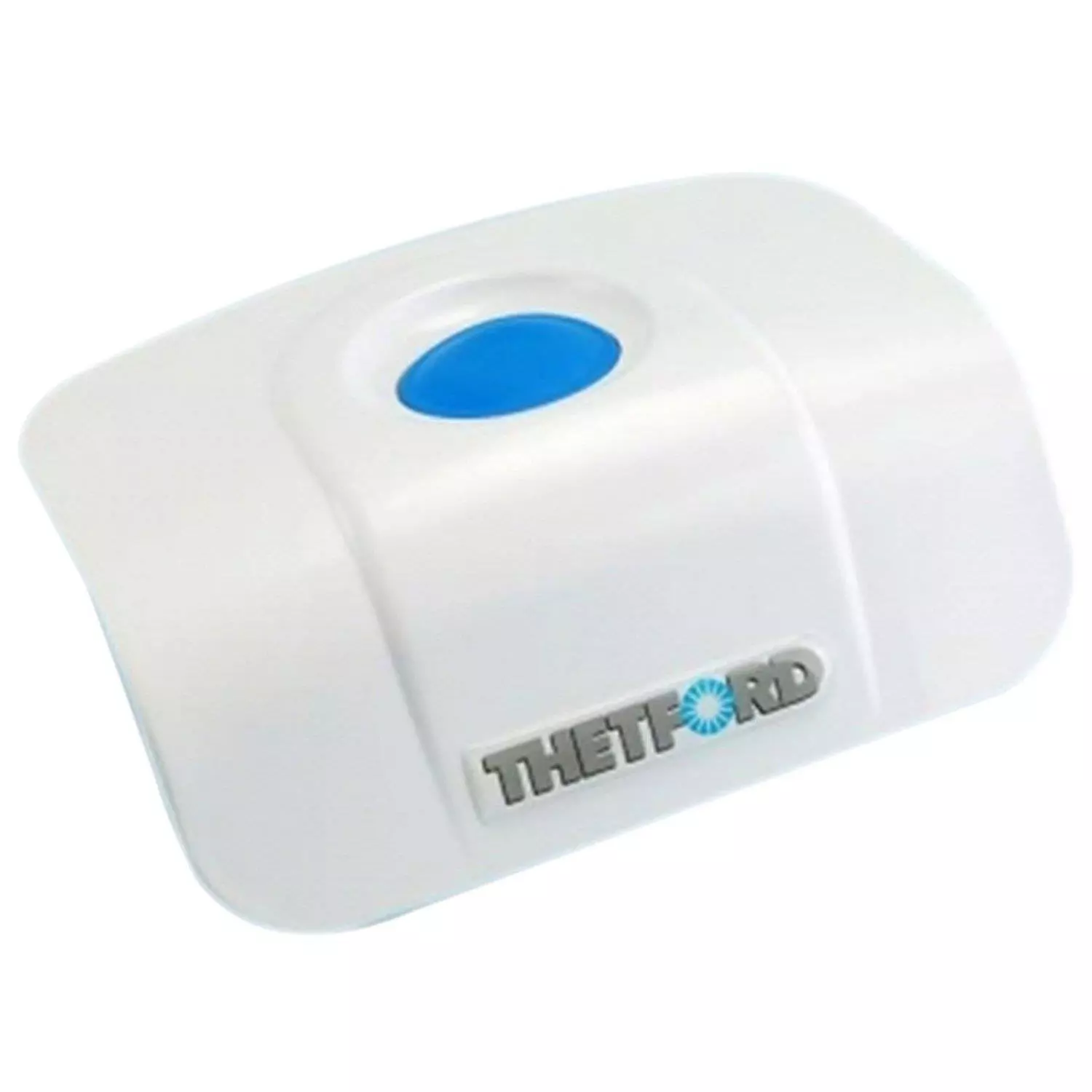

Thetford Bezel with push button 2377162 Thetford 200CWE image 1

Thetford Bezel with push button 2377162 Thetford 200CWE

£21.99(inc VAT) £29.99
?
View delivery optionsView product description

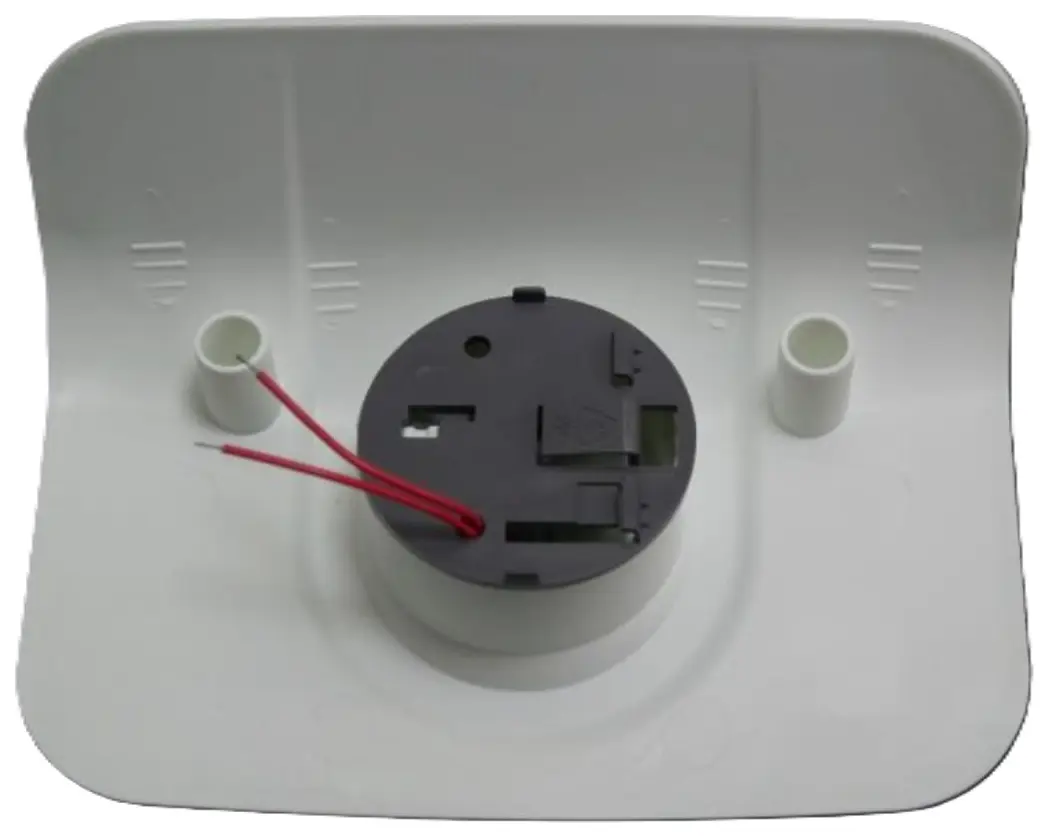

Bezel with pushbutton for the Thetford 200CWE cassette toilet. Thetford part number 23771. This part is complete with the push button and switch and supercedes the separate push button and switch. Bezel with push button and flush switch replacement for the Thetford 200CWE cassette toilet.

Thetford Bezel with push button 2377162 Thetford 200CWE Features


  • Size: 140mm (L) x 110mm (W)
  • Colour: White

EAN-13 : 8710315573596

5 FAQs on the Thetford Bezel with push button 2377162 Thetford 200CWE

Hi I have a thetford c200 cw/cwe toilet and the pump will not stop running how do I fix this.
It appears the the push button has gone 'short circuit' and will need replacing. Our ref. 237090
Hi, i Have a Thetford 200CWE In My Elddis Crusader 2008, 1st Changed The Switch Just 6 Months Ago Due To It Not Working At All. That Sorted a Few Weeks Ago The Flush Was Intermittent And Slow/Reduced Water Flow, The Old Pump Was Removed And a New Pump Fitted But When The Switch Is Activated There Is Nothing Only The Click Of The Switch. The Pump Does Not Run. There Is Current To The Wiring To The Pump And To The Switch, The Fuse Is Good, And The Battery Shows That It Is Ok And Charging Well. The Pump Has Been Tested On a 12v Battery And It Whizzed Round, Could You Throw Any Light On This Pls. It Seams To Make No Sense As All Was Ok All But Sluggish Then As Soon As The Wiring Was Cut To Attach New Pump It Wont Work. Is There Something i'm Missing ?? Help ....... :-)
I Think That The First Thing To Do Is To By-Pass The Switch By Connecting Together The Two Wires Leading To The Switch. If The Pump Runs Then You Have a Faulty Switch And I Would Suggest Replacing This With The Updated Version, Our Ref. 237090.


I Am Puzzled. I Have a Thetford C200CWE I Have Checked The Switch Part Number 23792 And Discovered It To Be Faulty. There Seems To Be Another Part 23771 Which Appears To Be a Replacement Bezel Which Seems To Includes The Switch Listed At a Lower Price??? Which One Should I Be Looking At. ???
The Bezel, Part 23771, Our Ref. 237090 Does Include The Switch And You Have Correctly Identified That The Price Is Lower Than The Separate Switch Unit. Part 237090 Is The Obvious Choice.
My Thetford Cassette Toilet C200CWE has just stop working. i can hear the click when i press the button on the toilet but it just stop flushing. i have open the cassette toilet door checked the fuse which is good, well tried to check the wiring. i cant seems to see the problem but it will not flush. I don't know how you get to the pump or even the water tank. can you please advise what i can do to check this out many thanks. Daryl
Either the switch is faulty or the pump is faulty. To access the pump you need to lift the blue button and undo the two screws underneath. Lift off the panel and undo a further two screws to lift out the pump. Check the continuity of the switch and if this is OK then you will need to apply 12 volts directly to the pump to check if it is faulty.
Toilet Electric Flush Will Not Work On a C200cwe
If you have checked the fuses it is likely that the electric pump has failed and will need to be replaced. Remove the blue operating button to access two screws. Remove the screws and lift the assembly ( held only by mastic ) to access the switch and pump. Before changing the pump make sure that you have continuity through the switch when depressed. If no continuity then the switch may be at fault. If you do have continuity then replace the pump. Replacement pump is our part 229418.
Switch part is 237090

Quick View     Thetford Bezel with push button 2377162 Thetford 200CWE

29 Customer Reviews on Thetford Bezel with push button 2377162 Thetford 200CWE

Thetford Bezel With Push Button

by Larry H (12 May 2024)
5 star review(5/5)
Exactly as described, came with screws new clips and sealant which was a added bonus. Fitted easily and worked first time. Delivery was prompt and on time. Toilet kept flushing so needed to replace the push button and this was the ideal replacement

Richard Lacey

by Richard Lacey (19 Jul 2023)
5 star review(5/5)
Perfect for what I ordered. Well described.

Thetford Bezel Complete With Switch

by Jackson (27 Sep 2022)
5 star review(5/5)
Works a treat easy to fit everything you need to replace your old one

Exact Replacement For Original

by John M (22 Jun 2021)
4 star review(4/5)
Does exactly as you would expect although the button only comes with about 2" of wire, so don't cut any off when you remove the old one. Also, Thetford have supplied a strip of gooey grey sealer to replace the original gooey grey sealer (what a mess) so just beware.

Thetford Loo Switch

by Mr Willis (13 Oct 2020)
5 star review(5/5)
I can't get too excited about a switch - it's now up and running. THanx

Thetford Flush Button

by Mr Maynard (06 Sep 2020)
5 star review(5/5)
Very good service

Great Price & Service

by Mr Walker (18 Aug 2020)
5 star review(5/5)
Cassette toilet broke while on holiday to Loch Ness and we got this delivered to site next day. It is an original Thetford part at a great price. Will use Leisure Shop Direct again.

Good Service

by Mr L Collins (02 Nov 2019)
5 star review(5/5)
Bought as a replacement

Great Replacement Item For Thetford C2

by Mr Stancliffe (09 Aug 2019)
5 star review(5/5)
Comes with all components required including mastic sealant for re-securing into place on the pegs. You will need 2 x red crimps to re-attach to the main wires in the toilet body. The wires are very thin so recommend stripping off a bit more insulation, bending over on themselves to get best grip possible in crimps.

Mr

by MacKay (25 Jun 2019)
4 star review(4/5)
Top product, supplied and delivered quickly.

All Round Great Peace Of Equipment

by Geoff Parr (23 May 2019)
5 star review(5/5)
Superfast Dilivery.11 Out Of 10 Highly Recommended, Many Thanks. Parrzo

Toilet Flish

by George McCarron (24 Feb 2019)
5 star review(5/5)
All it took was five minutes to sort out a problem toilet flush that has been intermittent for several months. Well done for the prompt service.

Great Service

by Richard B (29 Aug 2018)
5 star review(5/5)
great price good communication . perfect

Thetford Bezel Push Button 2377162

by .I Fox (29 May 2018)
5 star review(5/5)
Our one in the caravan broke when we were away. Ordered when we got home and it came the following week (ordered on the Saturday). Easy to find on the web site. Fitted easy and all working fine.

Used To Replace Mnual System

by SJ (27 Apr 2018)
5 star review(5/5)
Excellent product which I used with other items available from Leisureshop to convert my manual system to electric

Easy PeasyRepair

by Andy Wilson (13 Mar 2018)
5 star review(5/5)
Having watched the “how to” video on Utube the repair was simple with this replacement part

Excellent Service Provider

by Amazon Customer (24 May 2017)
5 star review(5/5)
Perfect speciation and description.

Toilet Flush Not Working.

by Mr Perrin (07 May 2017)
5 star review(5/5)
Toilet flush not working, kept blowing the fuse. Could only be the switch or pump so I replaced them both. Excellent products with complete and easy to follow instructions. Brilliant, job well done and now good as new. Great prices by the way!!

Thetford Toilet Button

by Tracey (07 Mar 2017)
5 star review(5/5)
Excellent company. Fair prices. Took a little longer to arrive, but was in no hurry to repair. Would buy from this company again.

Bezel With Pushbutton Thetford 200cwe

by Alan Dean (30 Oct 2016)
5 star review(5/5)
Great Item and a great price compared to the old switch unit. The installation was so easy just remove the old one (you just carefully ease it out with a blunt wide blade knife no screws) then cut the two wires and connect them to the new one. I found the best way was to use small block connectors put the new putty round the edge and replace the unit. Simple the only thing I would like to see in the kit was the small block connectors.

Thetford Pushbutton 200CWE

by Mr Thorp (27 Sep 2016)
5 star review(5/5)
So much cheaper than just the new microswitch. Fitting was simple.

BEZEL WITH PUSHBUTTON THETFORD 200CWE

by Alison (16 Jun 2016)
5 star review(5/5)
far better option than just replacing the small black contacts below the blue button, and easier!!...and cheaper!!!

Excellent

by Steve poulter (31 May 2016)
5 star review(5/5)
Did the job. Perfect

Bezel Toilet Switch

by steve (06 May 2016)
4 star review(4/5)
Bought this as a replacement as I was having problems with mine.easy to install just two wires to a connecter block.whole unit was cheaper than just the switch.works perfect.

Thetford Toilet Spares

by Mike Johnson (06 May 2016)
5 star review(5/5)
Does exactly what it needs to. Genuine Thetford spare part with full instructions and everything that is needed to make the repair

Five Stars

by Jim Green (24 Jan 2016)
5 star review(5/5)
GOOD VALUE

Cheaper Than Getting A Service Installation To Fix Your Flush By Far. Excellent.

by Alexena Greenwood (22 Mar 2015)
5 star review(5/5)
ahhh exactly what it says it is, took a while to figure out why the wires were different but a little bit of common got it sorted out, toilet flush fixed, very happy

Excellent & Very Easy To Fit

by Mrs Arthur (01 Aug 2013)
5 star review(5/5)
Got this as switch was broken on flusher........can't believe this whole part was cheaper than buying a new switch unit alone.......great value - arrived very promptly too.......instructions easy to follow & my flusher now works a treat. Thanks guys

Thetford C200 CWE Toilet Switch Panel

by Mr Barker (27 Jun 2013)
5 star review(5/5)
Exact replacement switch easily fitted by following Thetford's instructions on this site.
