Thetford Spinflo 420 Oven

£349.95(inc VAT) £399.99
?
View delivery optionsView product description
  Product Description
The Thetford Spinflo 420 Oven is perfect for the smaller motorhome or caravan with its compact design. Due to it's size, it can be installed in numerous places such as under the worktop or above a Thetford N3140 series fridge. It is designed specifically to match the Thetford slim fridges such as the N3140 series.
Please check data plate information before ordering to confirm correct door.

Thetford Spinflo 420 Oven Features
  • Made to match the slim refrigerators of 420mm width (N3140 series)
  • Easy maintenance with removable fascia
  • Protruding or flush installation
  • Stand alone installation

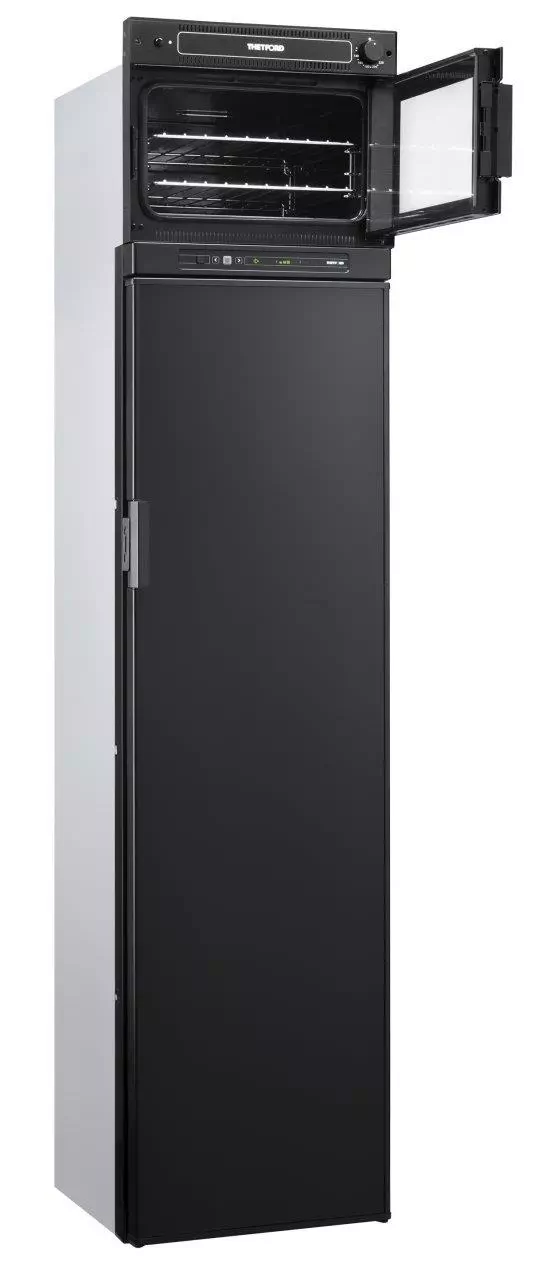

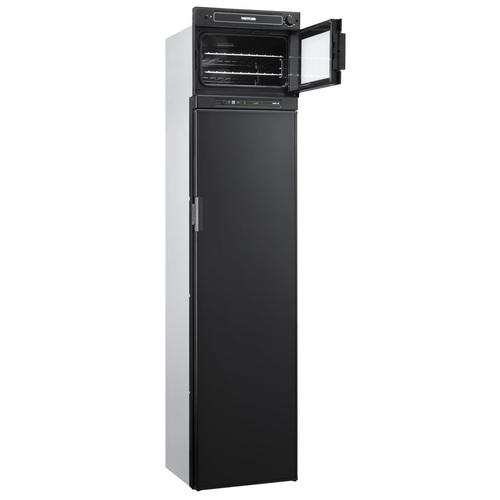

  • Easy installation on top of a slim refrigerator
  • 2 oven shelves
  • Oven light
  • Left hand hung door – can be swapped to right hand
  • High quality materials and components
  • Contemporary home like design
  • Domestic size knobs and handles
  • Superior cooking performance
  • Easy to clean
  • Optimal use of space
  • Excellent finishing
  • 3 year warranty

Specifications
  • Overall dimensions (HxWxD) : 335 x 418 x 440
  • Build-in dimensions (WxD) : 336 x 440 x 580
  • Total heat input (gas) : 1Kw
  • Fuel : all gas
  • Gas burner : n/a
  • Oven burner : 1Kw
  • Ignition : 12v
  • Oven capacity : 23L
  • Grill capacity : n/a
  • Knobs : chrome and black cylinder
  • Net weight : 10.5Kg


SAFETY NOTICE:

All products and parts must be installed by engineers who hold a valid certificate of competence. The installation must comply with the manufacturers instructions and local regulations. We cannot be held responsible if these instructions are not followed.

Please note we are a camping, caravan and motorhome company and NO gas product that we sell is suitable for mains (domestic) gas supply.
EAN-13 : 5060252080897

21 FAQs on the Thetford Spinflo 420 Oven

What is the maximum pan size?
Please use the correct recommended sizes of pans and position them centrally over the burners. Do not allow cooking vessels to overlap the edges of the appliance. Please refer to your user manual.
How do I identify my appliance?
Each appliance is labelled with a data badge that gives the correct information.
What happens if the oven/grill doesn't work?
If burner has not lit within 15 seconds, release knob and wait at least 1 minute before repeating operation. If it still fails to ignite, contact your dealer.
What can I do when the bump-stop is melting?
Please use the correct recommended sizes of pans and position them centrally over the burners. Do not allow cooking vessels to overlap the edges of the appliance. Please refer to your user manual.
Why do I need to keep the door open for grilling?
The grill burner works efficiently with the correct circulation of gas and ambient air. Closing the door prevents the circulation of this air and can result in dangerous products of combustion.
What are the requirements for installing the cooker?
The cooker should be installaed as per the manufactures recommended installation instructions and should only be installed by competent qualified persons. Local laws should be adhered to when installing gas appliances.
Why do the knobs fall off?
There may be a flat metal retaining clip that has broken from the knob. Please contact your dealer who can replace under warranty or supply this if the appliance is outside the 3 year warranty.
What type of gas do I need?
The appliance is manufactured to be used with LPG at the correct operating pressure as outlined on your data label.
What can I do when the flame goes off after igniting the oven?
If the burner has not lit within 15 seconds, release the knob and wait at least 1 minute before repeating the operation. If it still fails to ignite contact your dealer.
Why is the cooking appliance too hot to touch?
The appliance is manufactured to heat food and as a result certain areas will become hot. Touchable surfaces like knobs and handles should remain within a safe touchable temperature. If you are concerned about these temperatures, please contact your dealer who can measure the temperatures to ensure they are correct.
My grill doesn't appear to light in the middle.
It shouldn’t. This is the design to promote even cooking.
My grill pan handle gets hot, what can I do?
The handle is detachable. It should be removed whilst the grill is in use.
Can I change my current pan rests into cast iron pan rests?
We do not recommend modifying the appliance in anyway this includes changing the pan rests and shelves.
Is it possible to make my burners more powerful?
We do not recommend modifying the appliance in anyway.
Where can I get an extra shelf for my oven?
Spares are available from your local dealer or service centre. Spares are also available from a range of wholesaler outlets including Leisure Spares 01423 320009.
Does Thetford have microwaves in the assortment?
No, we don't have any microwaves in the portfolio yet.
Where can I buy spares?
Spares are available from your local dealer or service centre.
How can I clean my cooking appliance (stainless Steel)?
Always remove any spills or contamination immediately after use with soap and hot water. Towel dry the surface with a soft cloth. Use a non-abrasive multi-purpose cream cleaner and a nylon scourer pad to clean more stubborn dirt or grease. Use a proprietary stainless steel cleaner or polish to remove superficial surface scratching.
How can I clean my cooking appliance (the glass (lid))?
Always remove any spills or contamination immediately after use with soap and hot water. Towel dry the surface with a soft cloth. Use a special glass cleanerto clean more stubborn dirt or grease.
How can I clean my cooking appliance (enamelled)?
Always remove any spills or contamination immediately after use with soap and hot water. Towel dry the surface with a soft cloth. Use a non-abrasive multi-purpose cream cleaner to clean more stubborn dirt or grease.
What can I use to clean my hob / sink?
We generally recommend you use warm, soapy water rinse, and dry thoroughly. For further information please refer to your owner’s manual.
