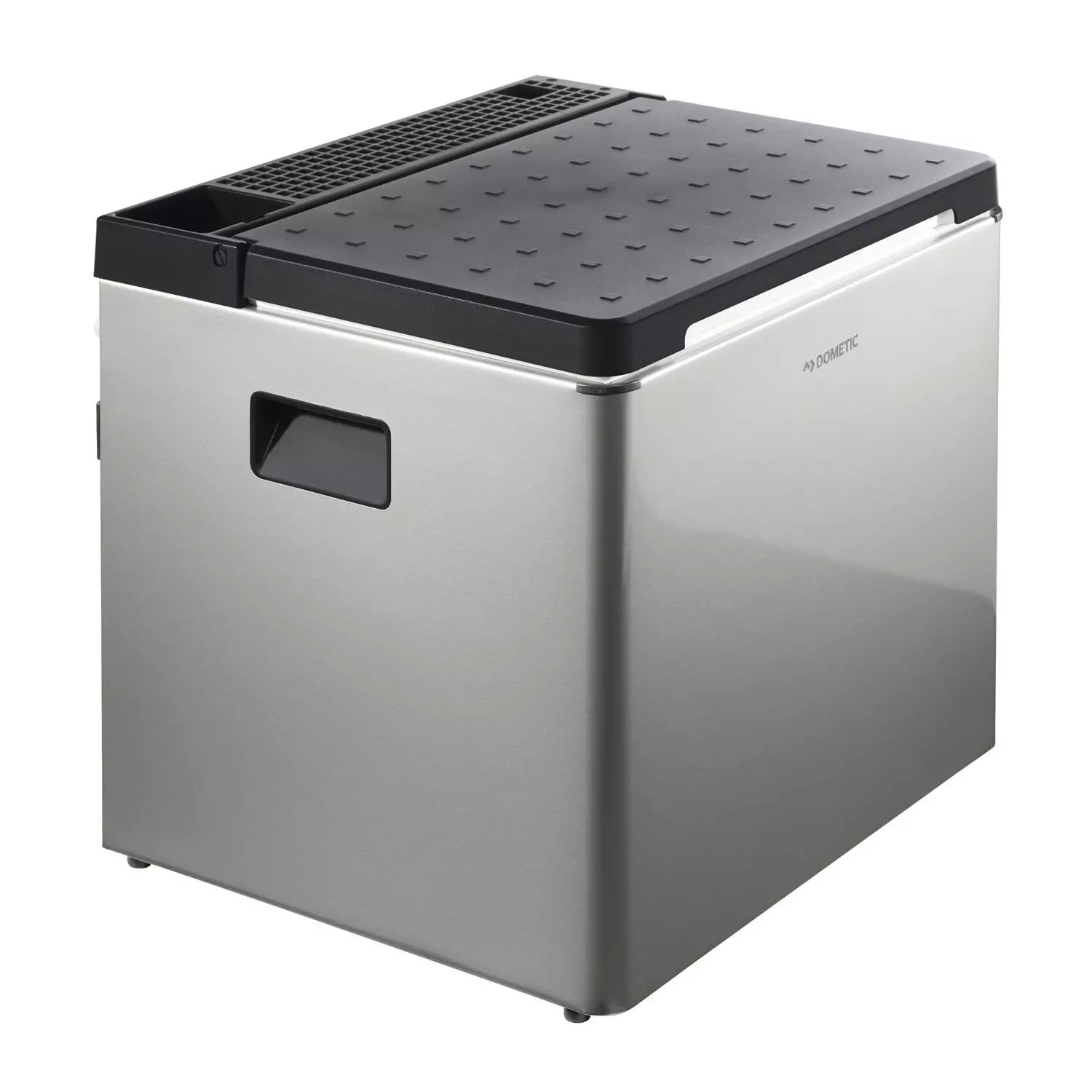

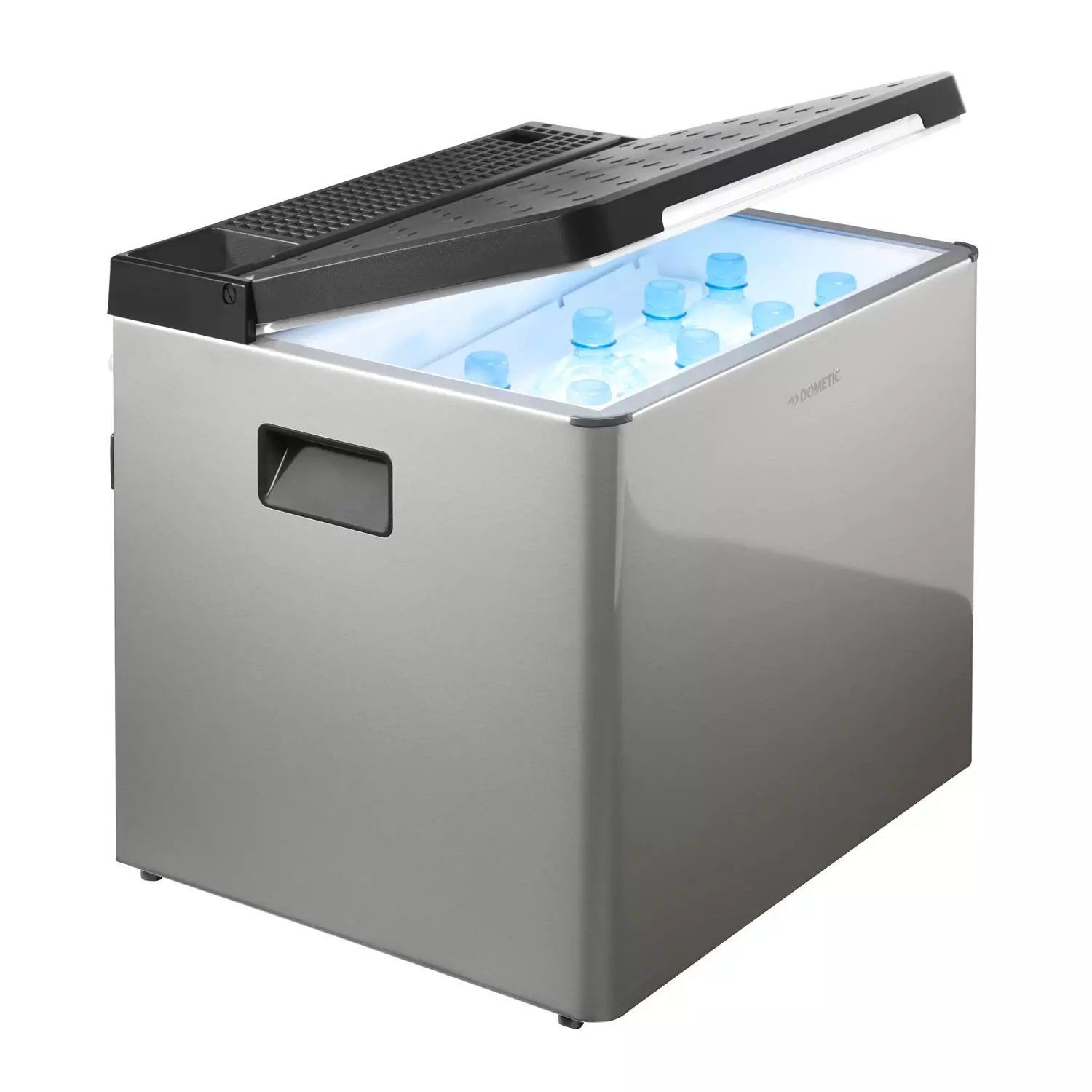

Dometic ACX3 30 Combicool Coolbox (12V/240V/Gas)

Product Ref: 277412
Brand : Dometic

Discontinued Product Ref: 277412
Brand : Dometic

View delivery optionsView product description

Discontinued

This product has been discontinued.

However, this is the suggested alternative product that we can recommend:

Quick View

Mestic MAC-40 Cool Box Absorption (AC/DC/Gas)

Product Description

This product has been discontinued.

However, this is the suggested alternative product that we can recommend:

Quick View

Mestic MAC-40 Cool Box Absorption (AC/DC/Gas)

Enjoy the great outdoors even more with the Dometic CombiCool ACX3 30. It runs on 12 V DC or on 230 V AC in the vehicle or on the campsite. In the great outdoors you simply switch over to gas mode. The cooler comes in an attractive yet sturdy design with a distinctive lid, while the silent operation means it won't disturb you! The evaporator provides space for an ice cube tray (included).

COOLING WHEREVER YOU WANT!
You’ve found a dream place to stay but there’s no way to get there with the vehicle and no mains hook-up either... Don’t worry, Dometic CombiCool ACX3 absorption cool boxes give you maximum freedom in choosing your picnic site. They run on 12 V DC in the vehicle and on 230 V AC at home or at a campsite. In the great outdoors you simply switch over to gas mode. The ACX 40G even makes do with a standard gas cartridge. All ACX3 models provide cooling up to 30 °C below the ambient temperature. Another common feature of the ACX3 family is the sturdy housing with an attractive design and a distinctive lid.

Dometic ACX3 30 Combicool Coolbox (12V/240V/Gas) Features

Powered by gas, 12 V DC and 230 V AC – guaranteed energy supply, maximizes freedom!
Silent operation means no disturbance
Attractive design
Ice cube tray included
Cooling up to 30 °C below ambient temperature
Sturdy housing with space for up to 53 cans or eight 1.5 l bottles standing upright

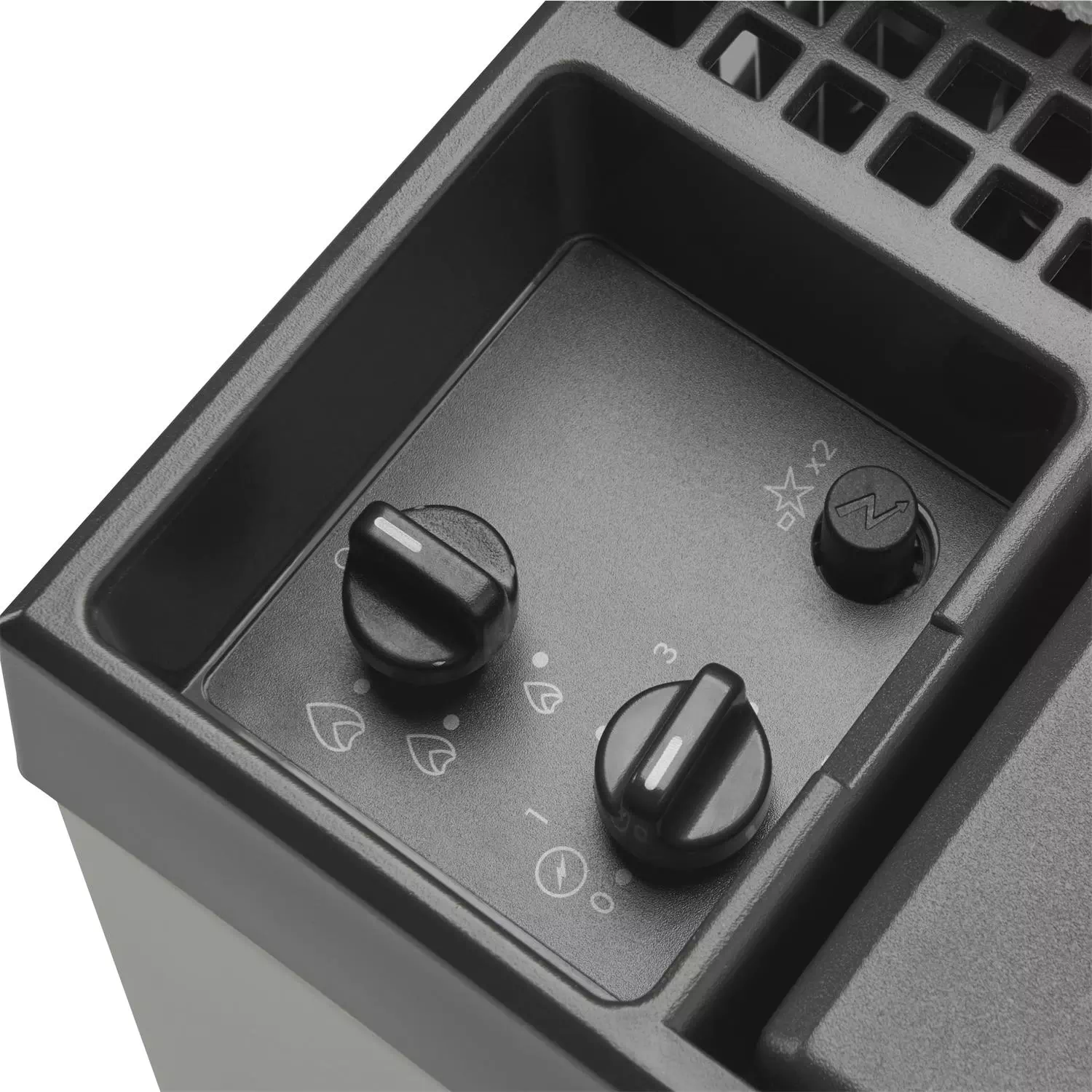

Three-stage flame regulation in gas mode, thermostat regulation on 230 V

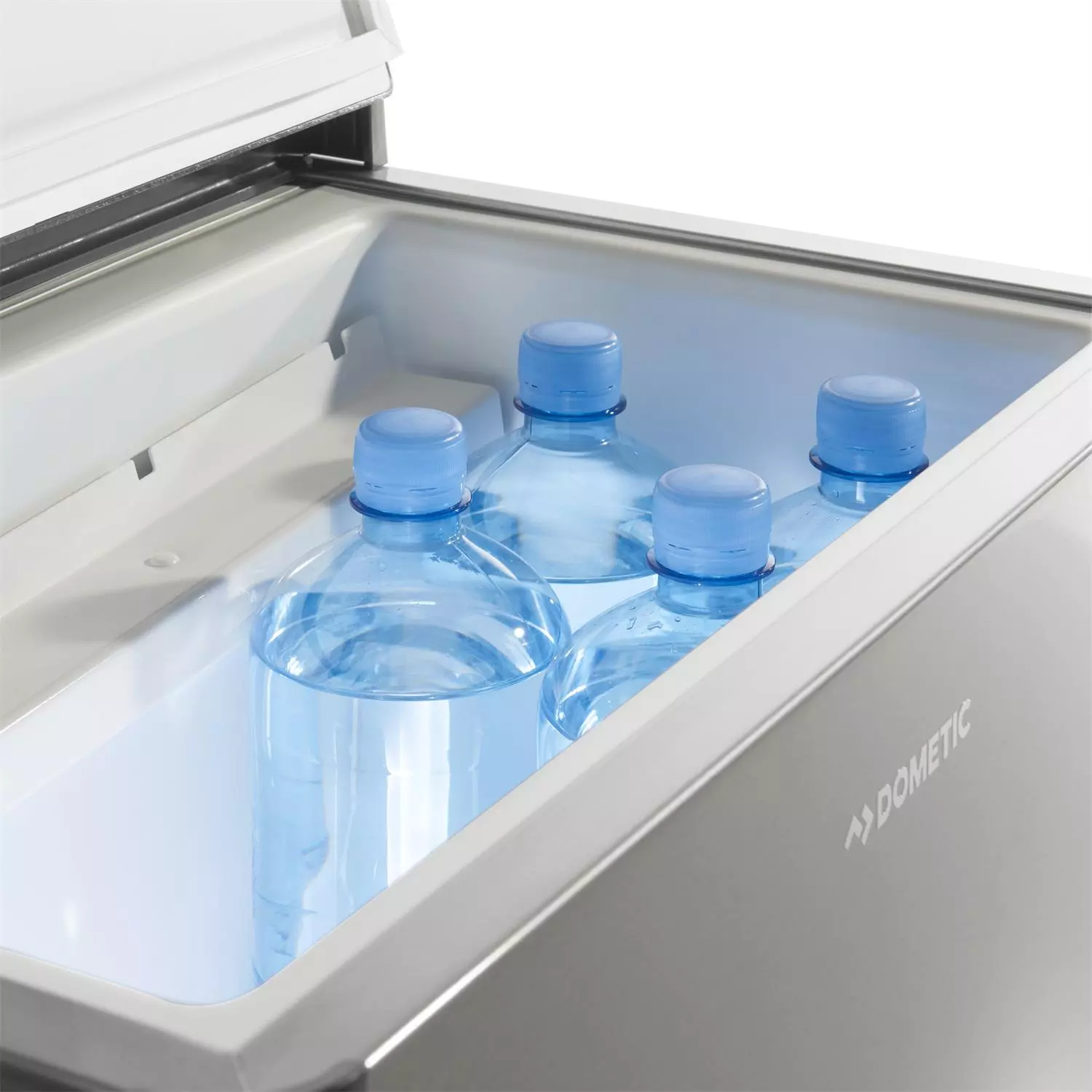

INNER VOLUME
Provides space for 1.5 l bottles

STURDY HOUSING
Robust construction with useful details

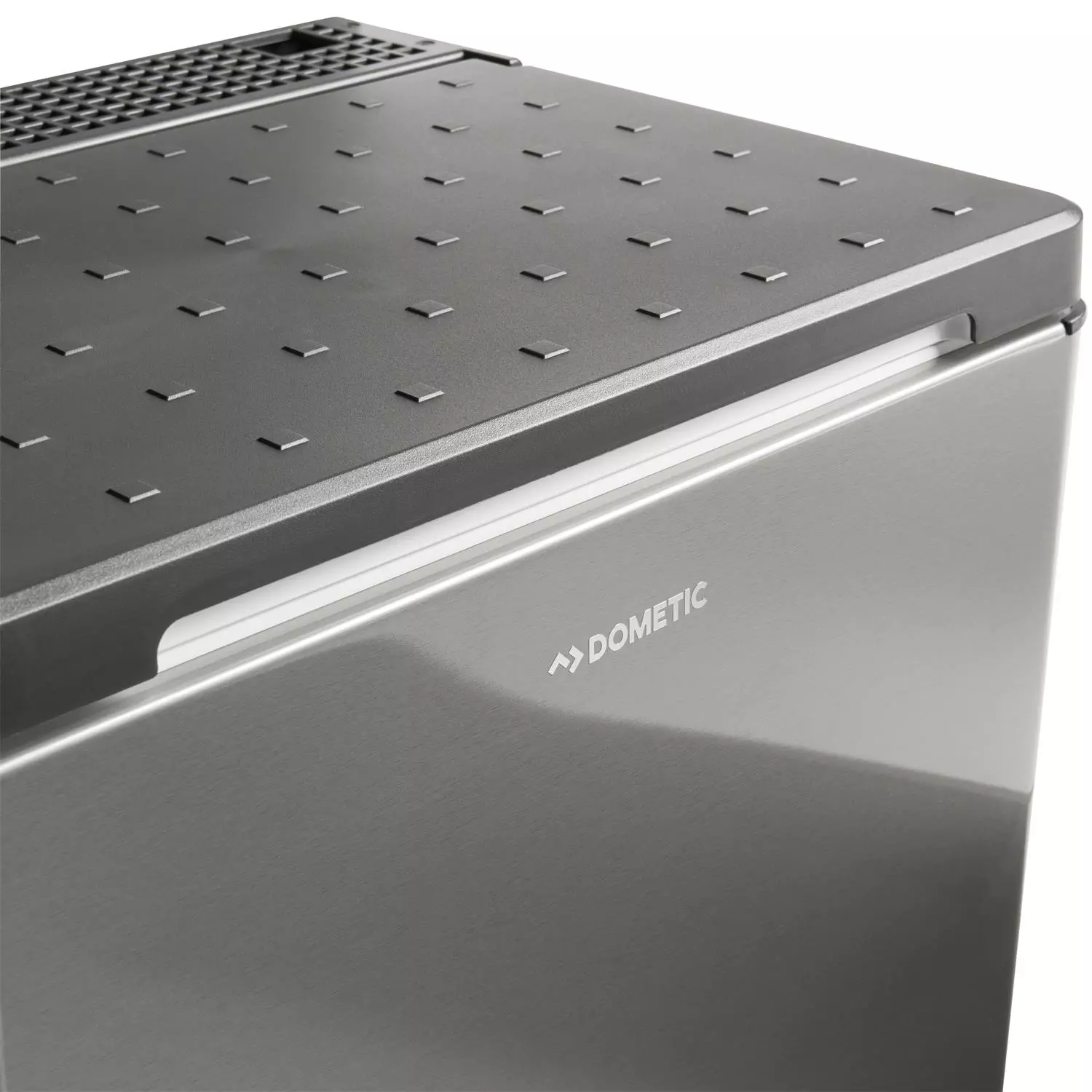

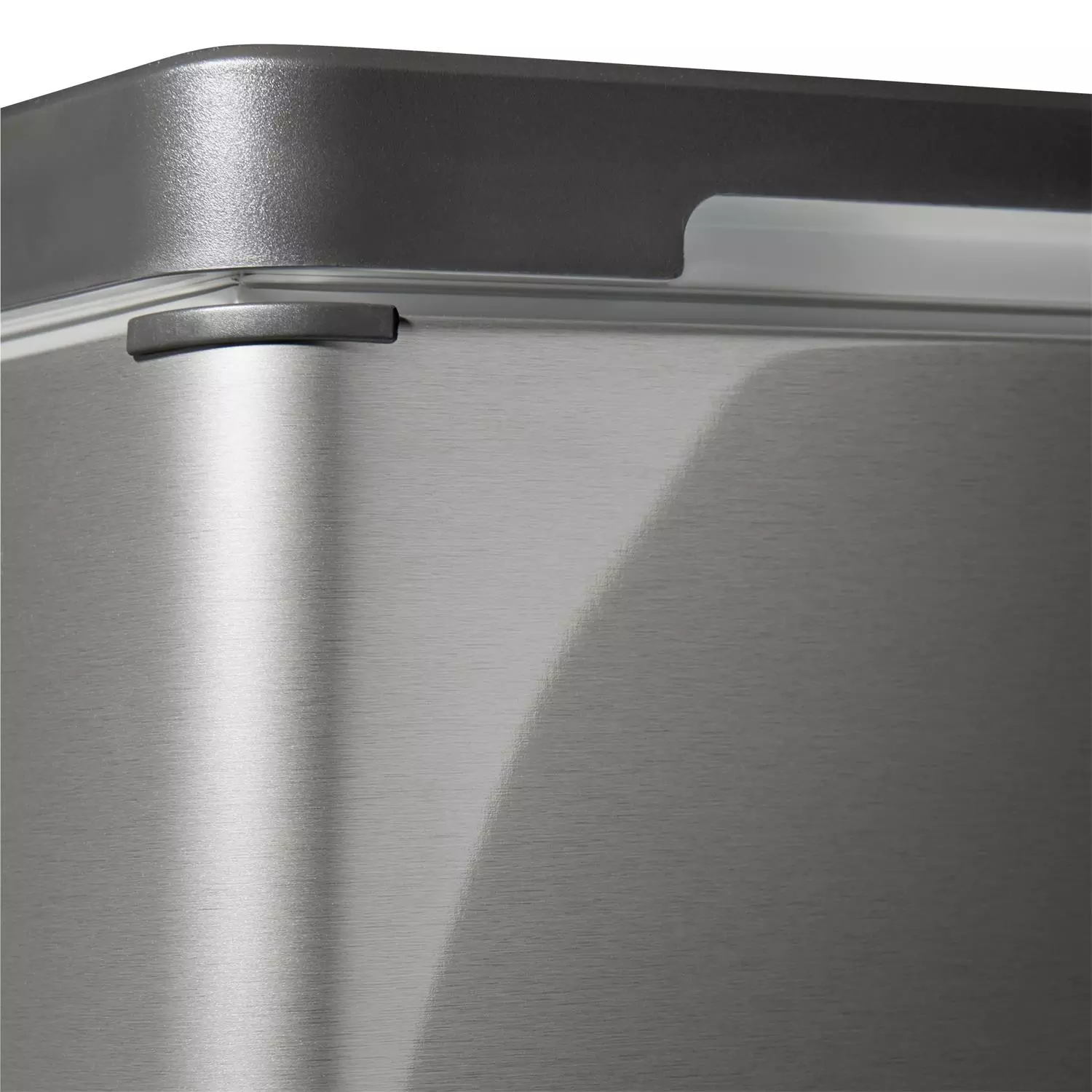

ELEGANT DESIGN
High quality surface with an eye-catching design

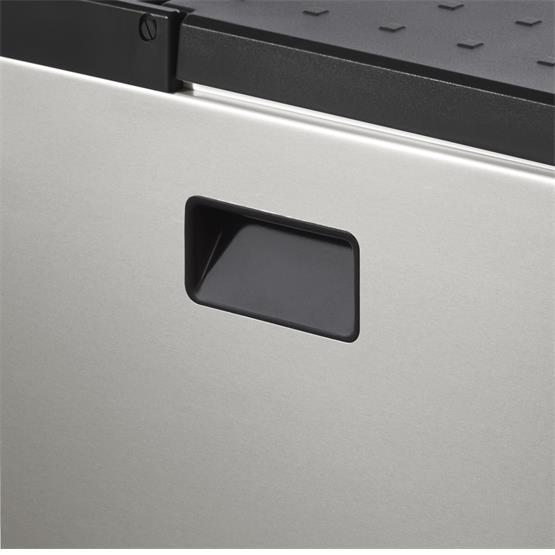

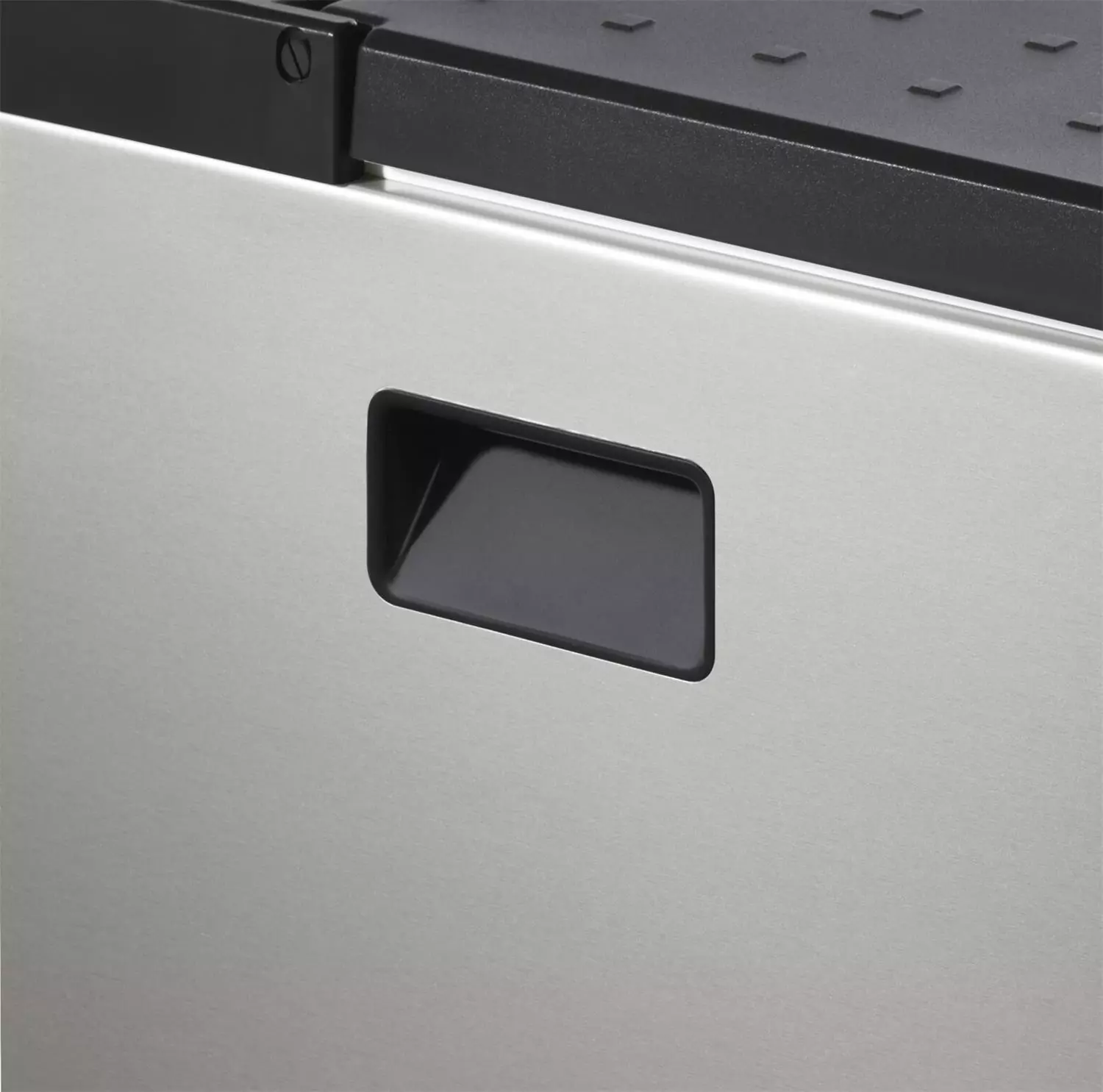

INTEGRATED HANDLES
Elegant look, provides convenient carrying

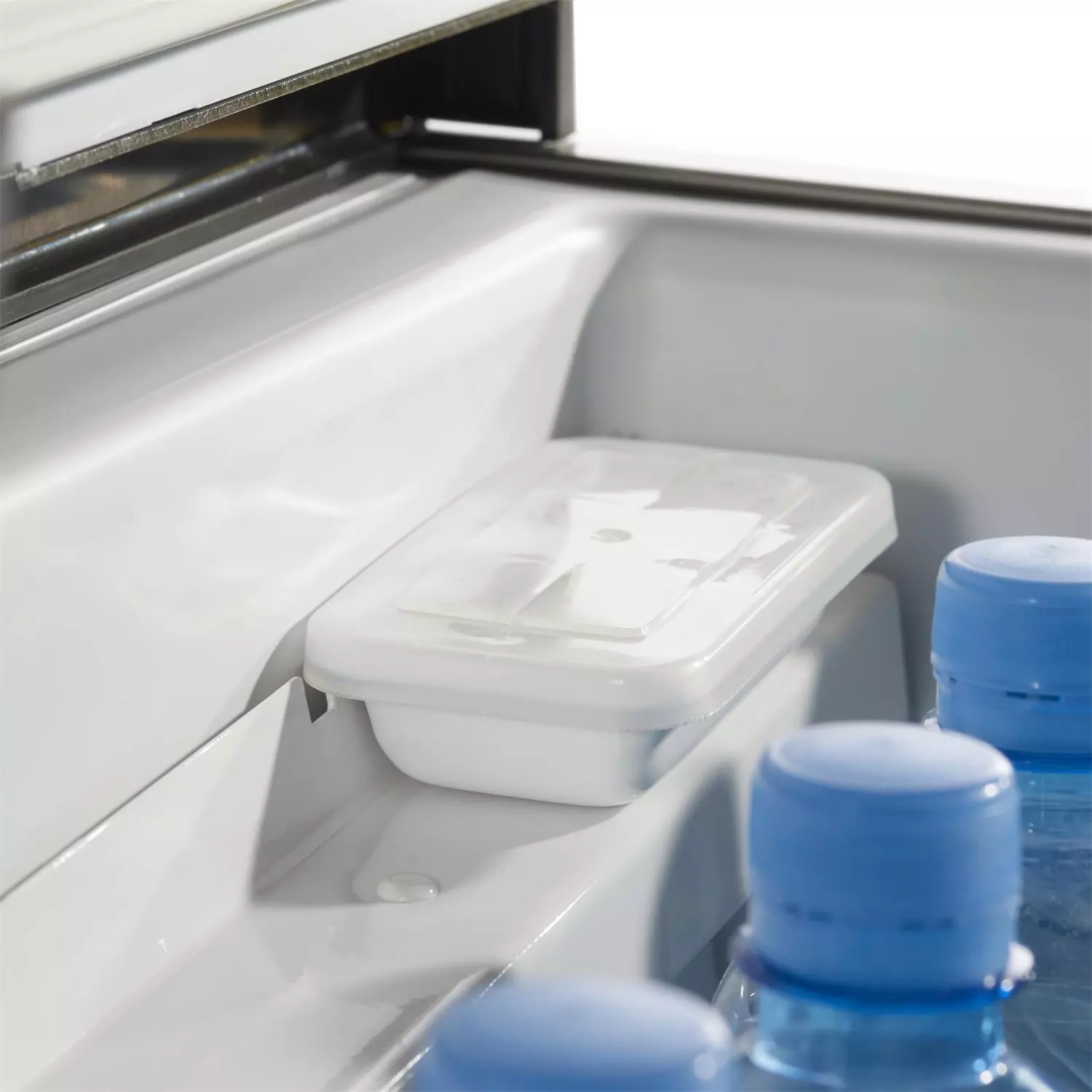

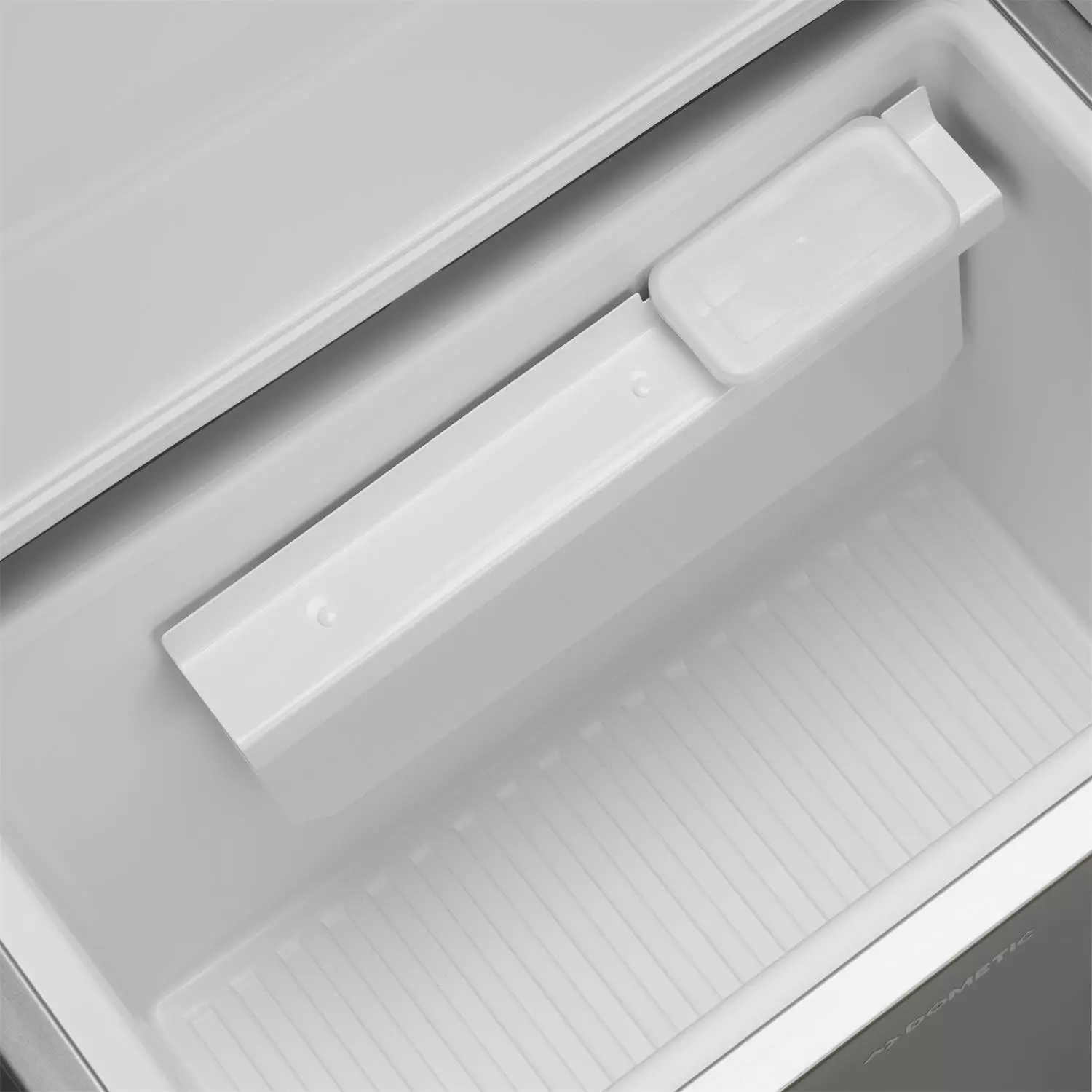

ICE CUBE BOX INCLUDED
Create your own ice cubes with the included ice cube box

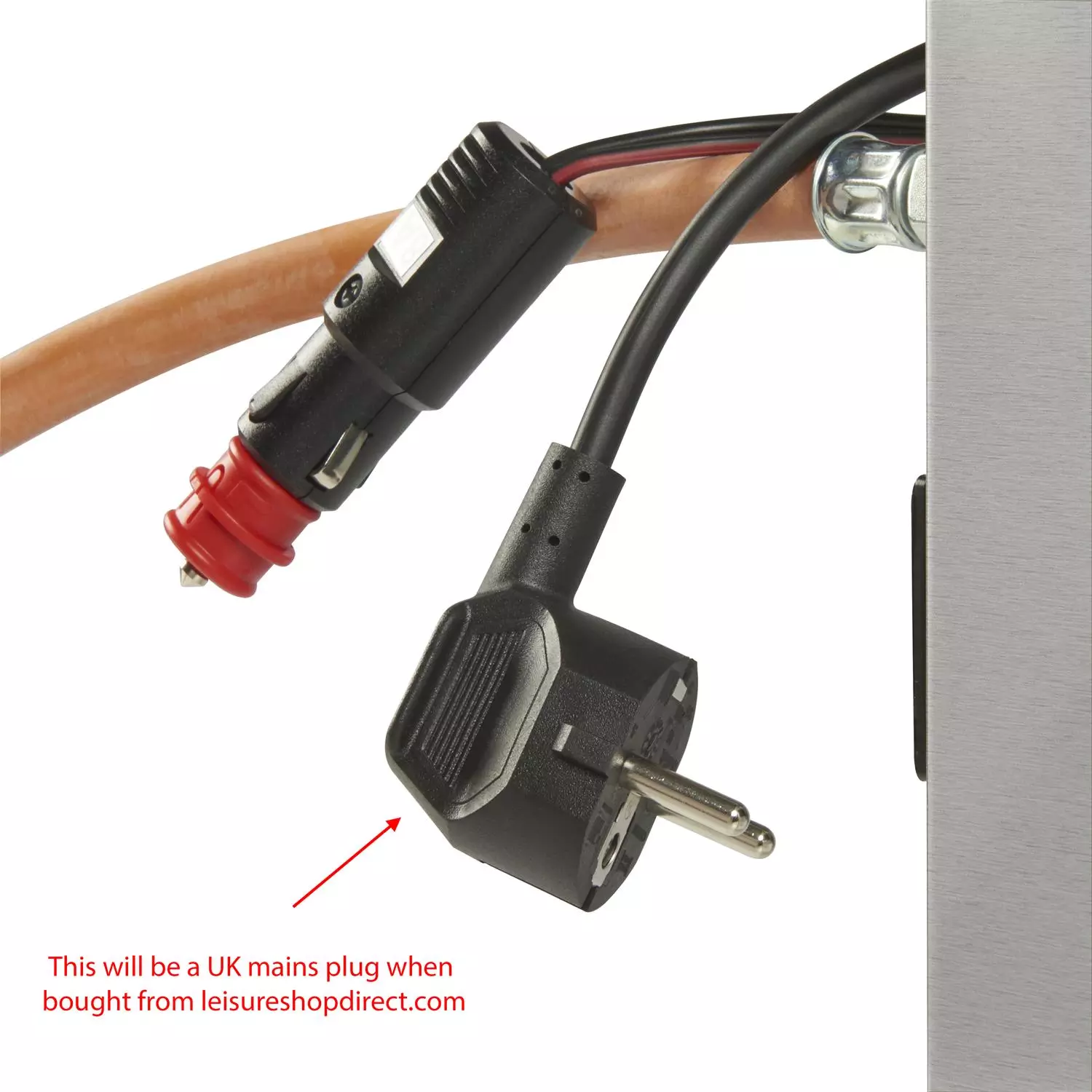

POWERED BY 12/230 V OR GAS
Connect your cool box to 12 V DC, 230 V AC or gas

Specifications

Refrigeration technology Absorption
Dimensions product depth : 420 mm
Dimensions product height : 442 mm
Dimensions product width : 500 mm
Net weight : 14 kg
Total volume (IEC 62552-3) : 33.00 l
Input voltage (AC) : 230 V
Input voltage (DC) : 12 V
Rated input current (AC) : 0,33 A
Rated input current (DC) : 6,25 A
Rated input power (AC) : 75 W
Rated input power (DC) : 75 W
Noise (EN60704-1 & 60704-2-14) : 0.00 dB(A)
Noise Class EU20192016 : A
Climate class (EN62552) : N
Gas pressure (DIN732) : 30 mbar
Gas category : ULPG (Universal LPG AUS(NZ))
Colour : Aluminium
Interior light : No
Certificates : CB, CE

THIS COOLBOX USES ABSORPTION TECHNOLOGY

What is the difference between the cooling technologies?
ABSORPTION COOLING
Details of distinguishing features:

Gas-powered cooling independent of electricity
Three way cooling – Gas, 12 volts DC or 230 volts AC
Silent operation
Cooling performance depending on the ambient temperature

The Technical Bit
A concentrated ammonia solution is heated in a boiler and expelled as vapour. The pressurised ammonia gas is then liquefied in a condenser. Supplied with hydrogen, it evaporates and in the process extracts heat from the storage container. The ammonia gas then enters the absorber where it is reabsorbed in a weak solution of ammonia. Finally, the saturated solution flows back to the boiler where the whole cycle starts again.

THERMOELECTRIC TECHNOLOGY
Details of distinguishing features:

12 / 24 / 230 Volt
Independent of inclination
Lightweight and low-cost
Cooling performance depending on the ambient temperature

The Technical Bit
The thermoelectric principle was discovered by J. C. A. Peltier, which is why the temperature generating parts of thermoelectric systems are referred to as Peltier elements. Thermoelectrics are based on the fact that cold or heat energy (depending on the polarity) is generated when a DC current is conducted between different types of metal. The heating or cooling capacity is further enhanced by heat exchangers and air fans. Ideal for low and medium cooling volumes.

COMPRESSOR TECHNOLOGY
Details of distinguishing features:

Excellent cooling performance even at extreme ambient temperatures
Refrigeration and deep-freezing
12 / 24 / 100 – 240 volts
Low power consumption – suitable for solar operation
Battery protection
Quiet operation with little vibration
Independent of inclination

The Technical Bit
Compressor units operate using a refrigerant that changes from liquid to gaseous state in the evaporator. The evaporation extracts heat from the interior of the cooling unit – the temperature drops. The compressor draws in the refrigerant, compresses it and passes it on to the condenser. Here, the absorbed heat is released to the atmosphere. The refrigerant liquefies again and flows to the evaporator, where the cycle begins again.

EAN-13 : 5999024868237

Seen this product cheaper? We will do our best to match it!

Click Here

Reviews

Videos

Exploded Diagrams

Instructions

Dometic ACX3 30 Operating Manual
