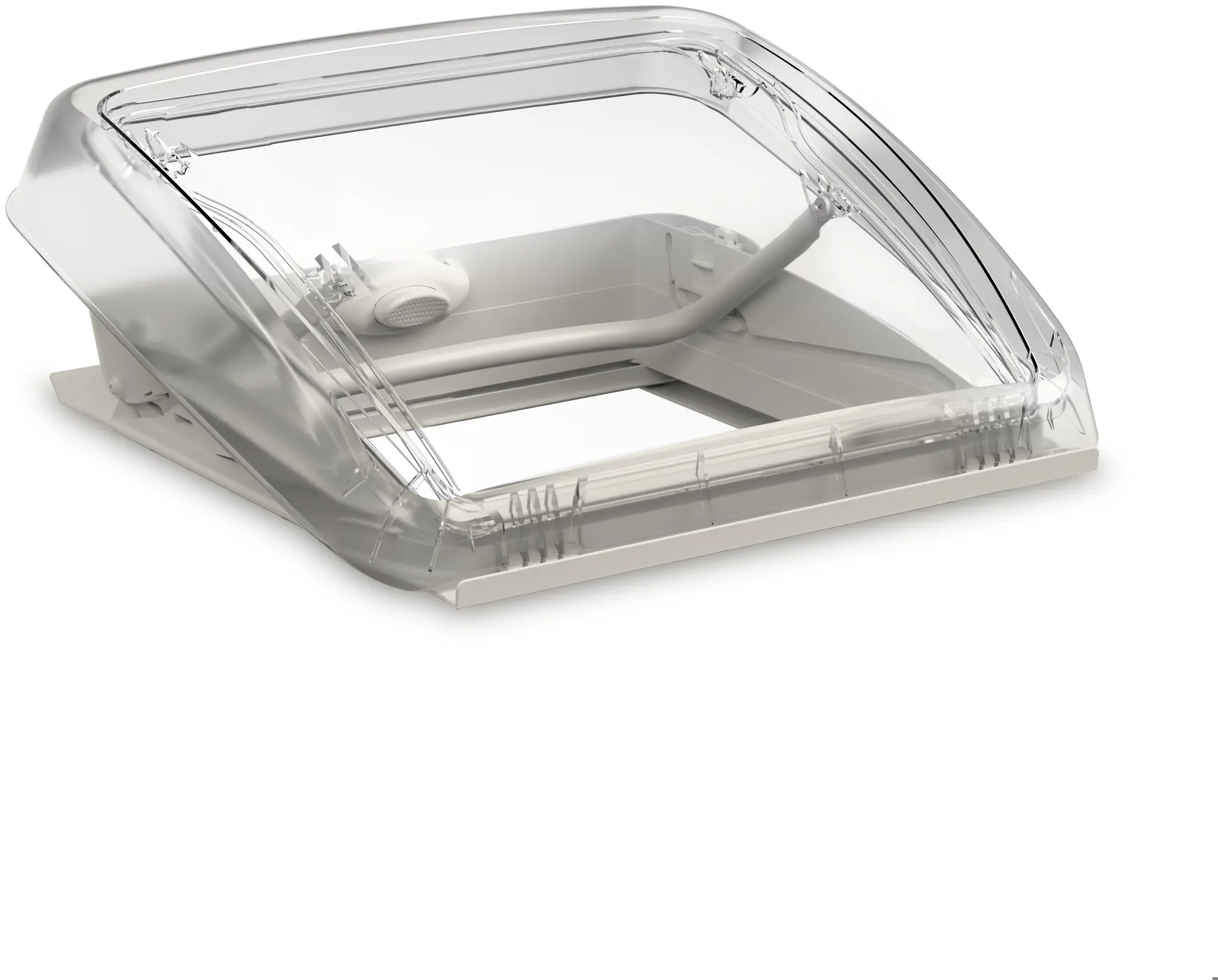

Dometic Mini Heki Style Rooflight - with fixed ventilation for roof thickness 25 - 42mm

£143.99(inc VAT) £188.99
?
View delivery optionsView product description
  Product Description

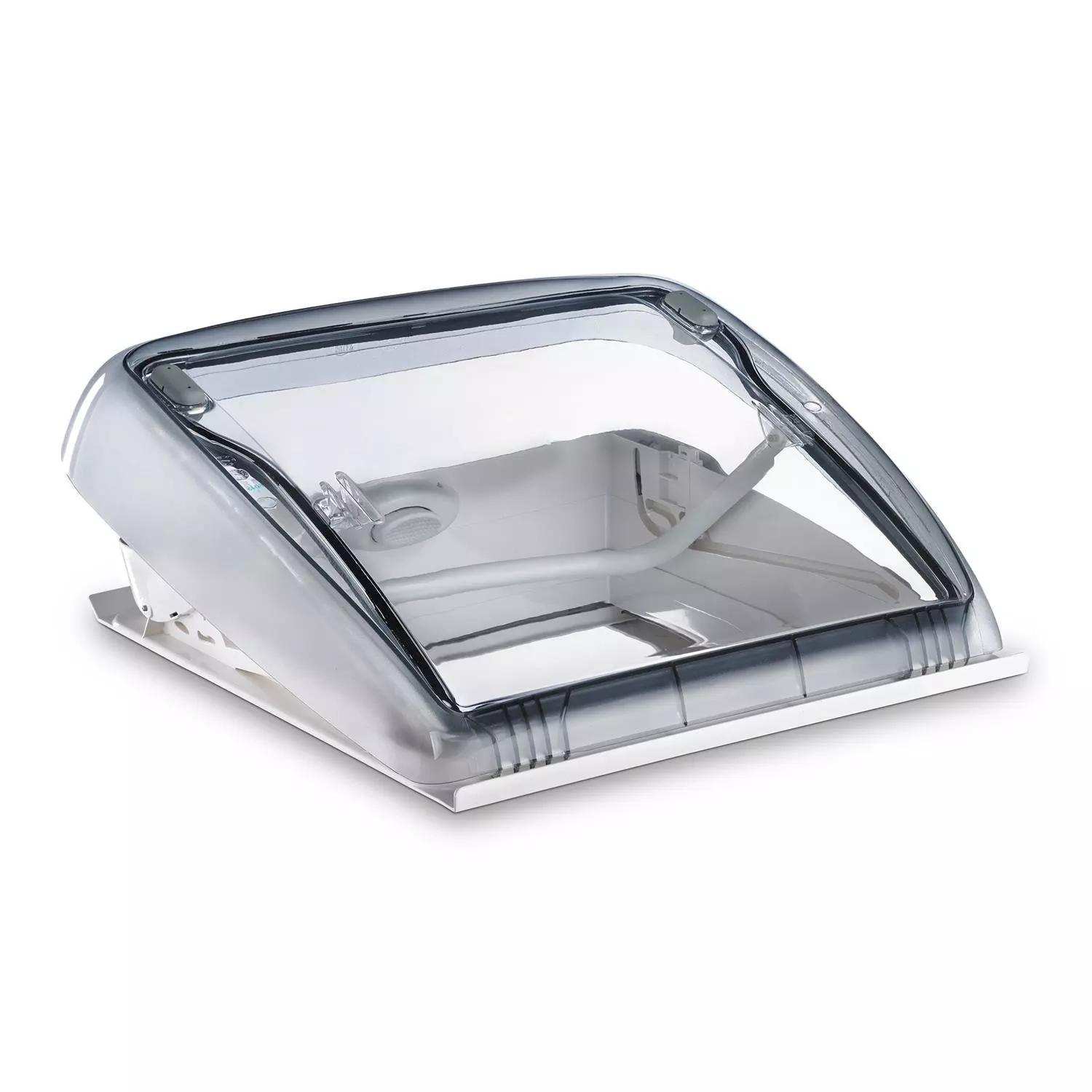

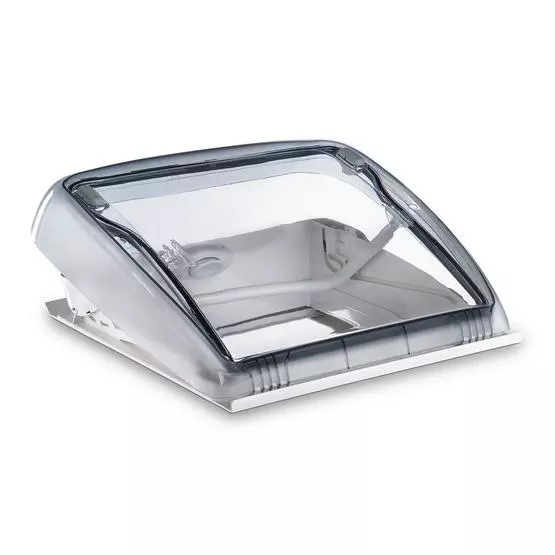

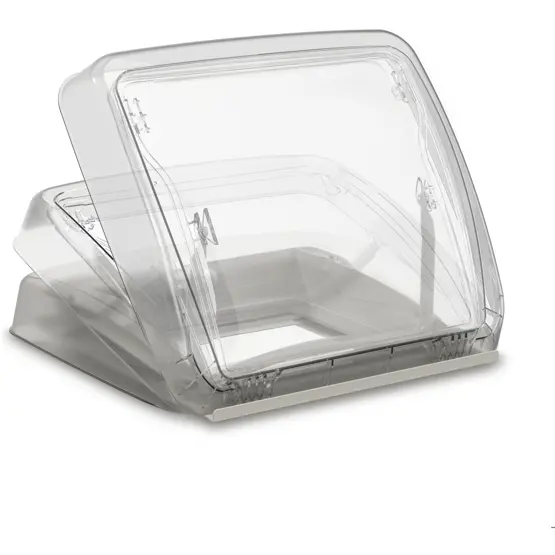

Every vehicle instantly seems so much more inviting when equipped with this compact roof light, which admits just the right amount of light into the interior. The Dometic Mini Heki Style Rooflight (25-42mm roof thickness) opens to three positions: fully open, half-open and bad-weather position.

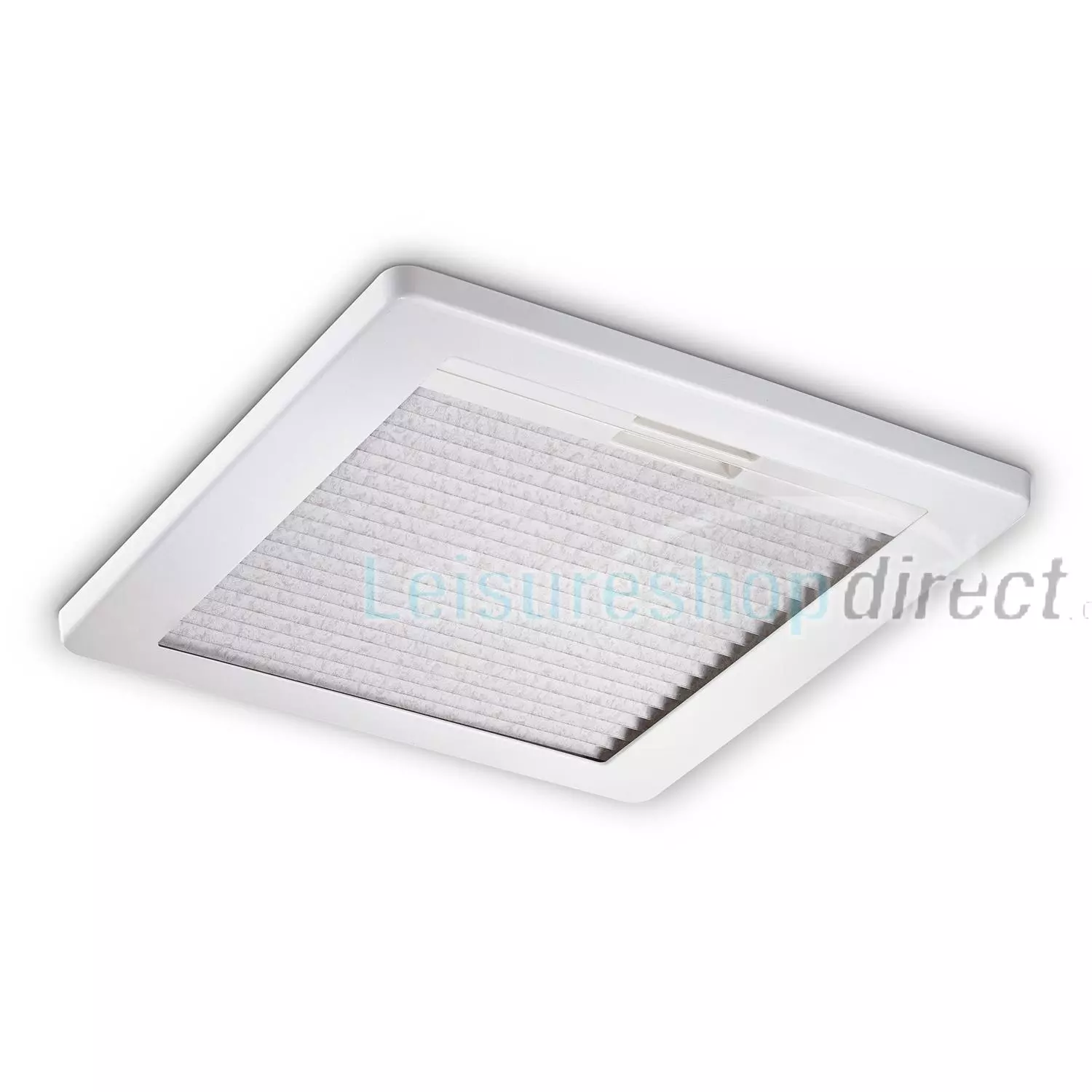

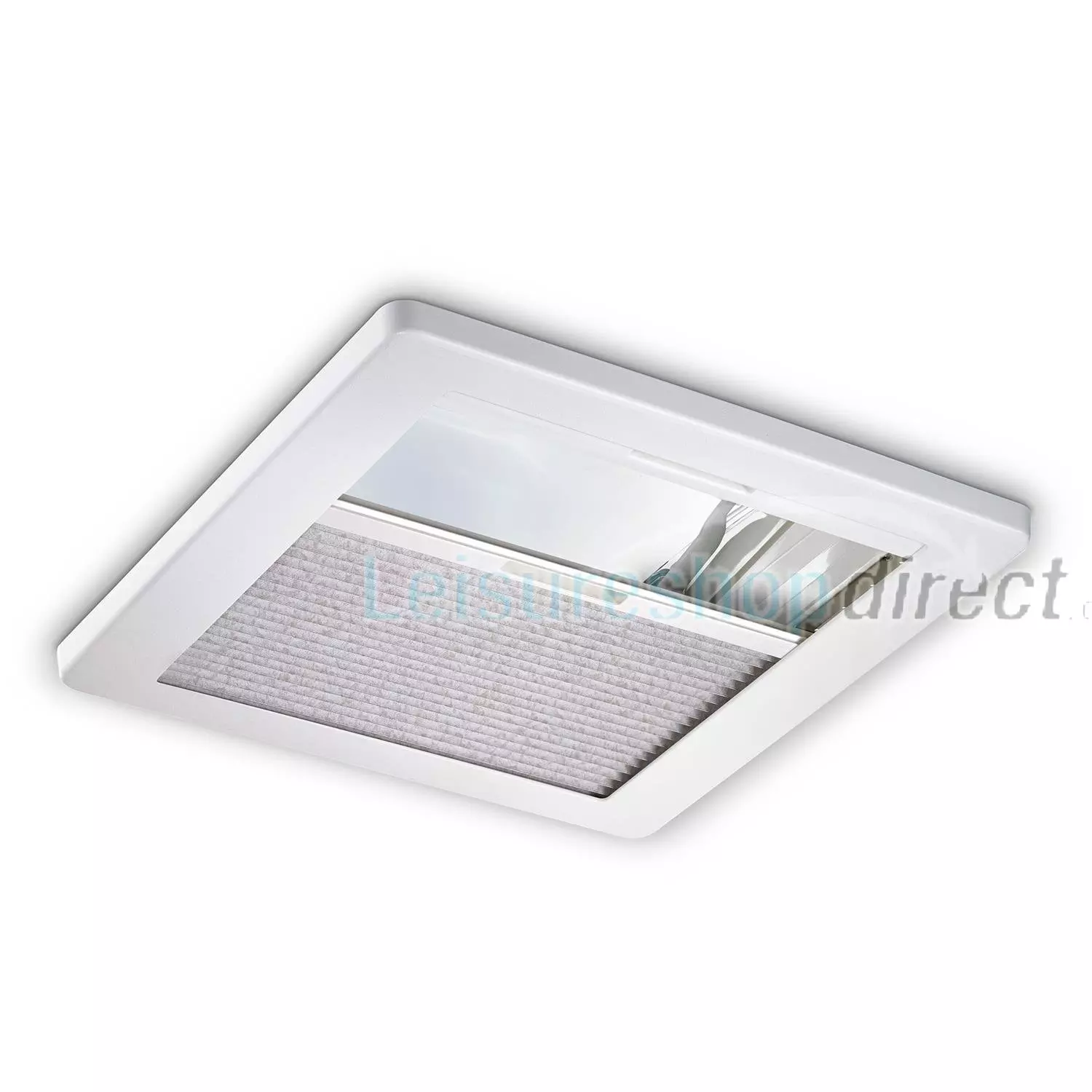

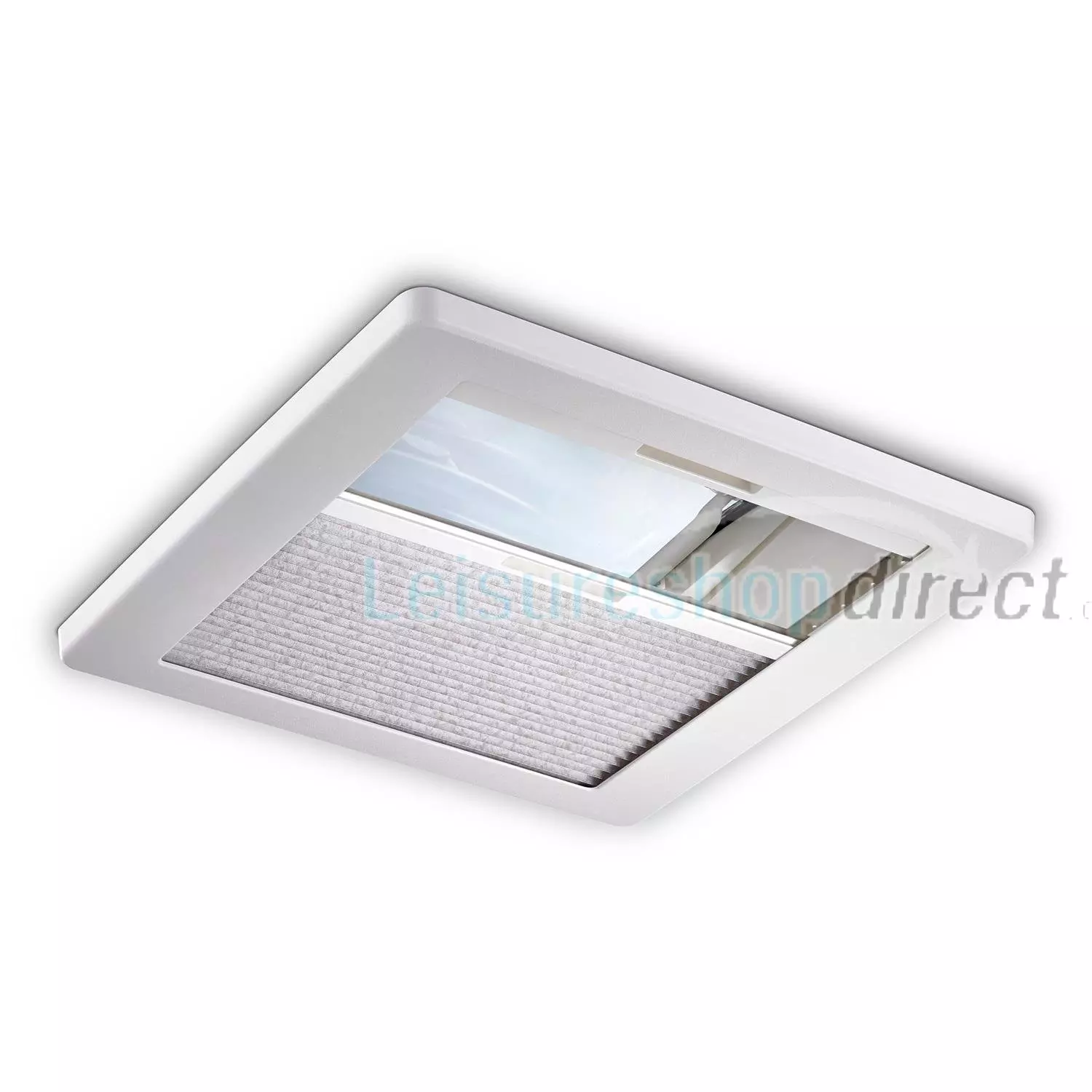

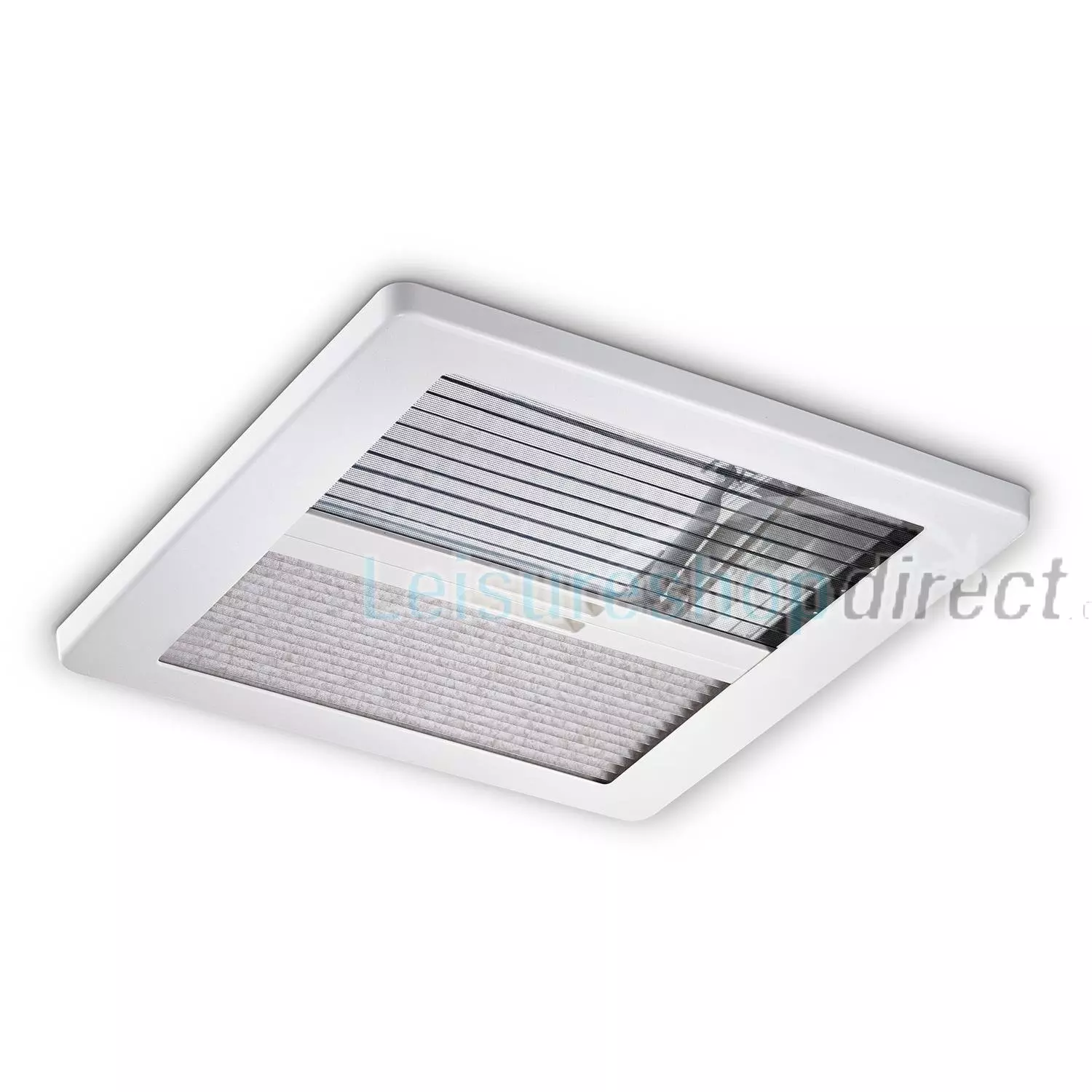

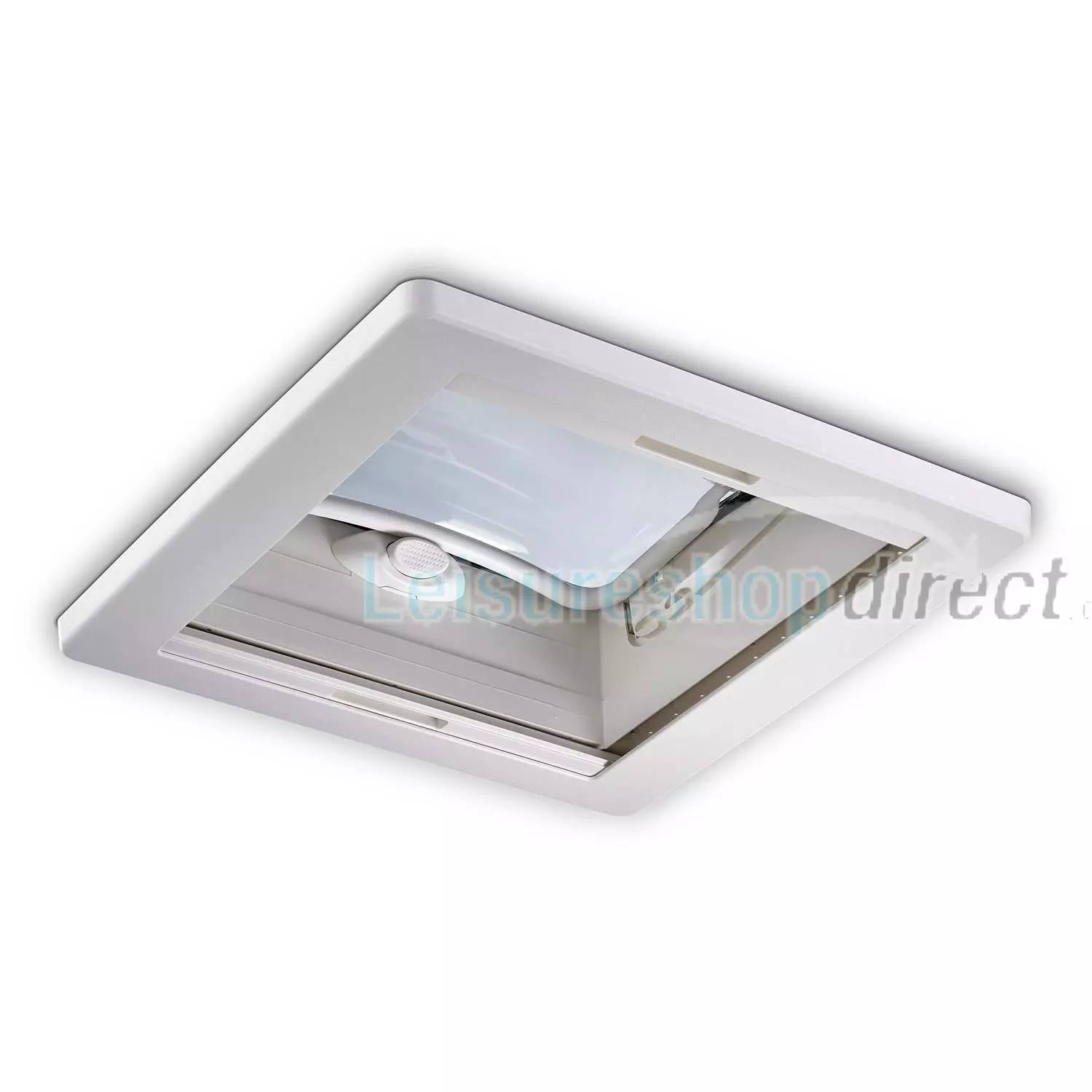

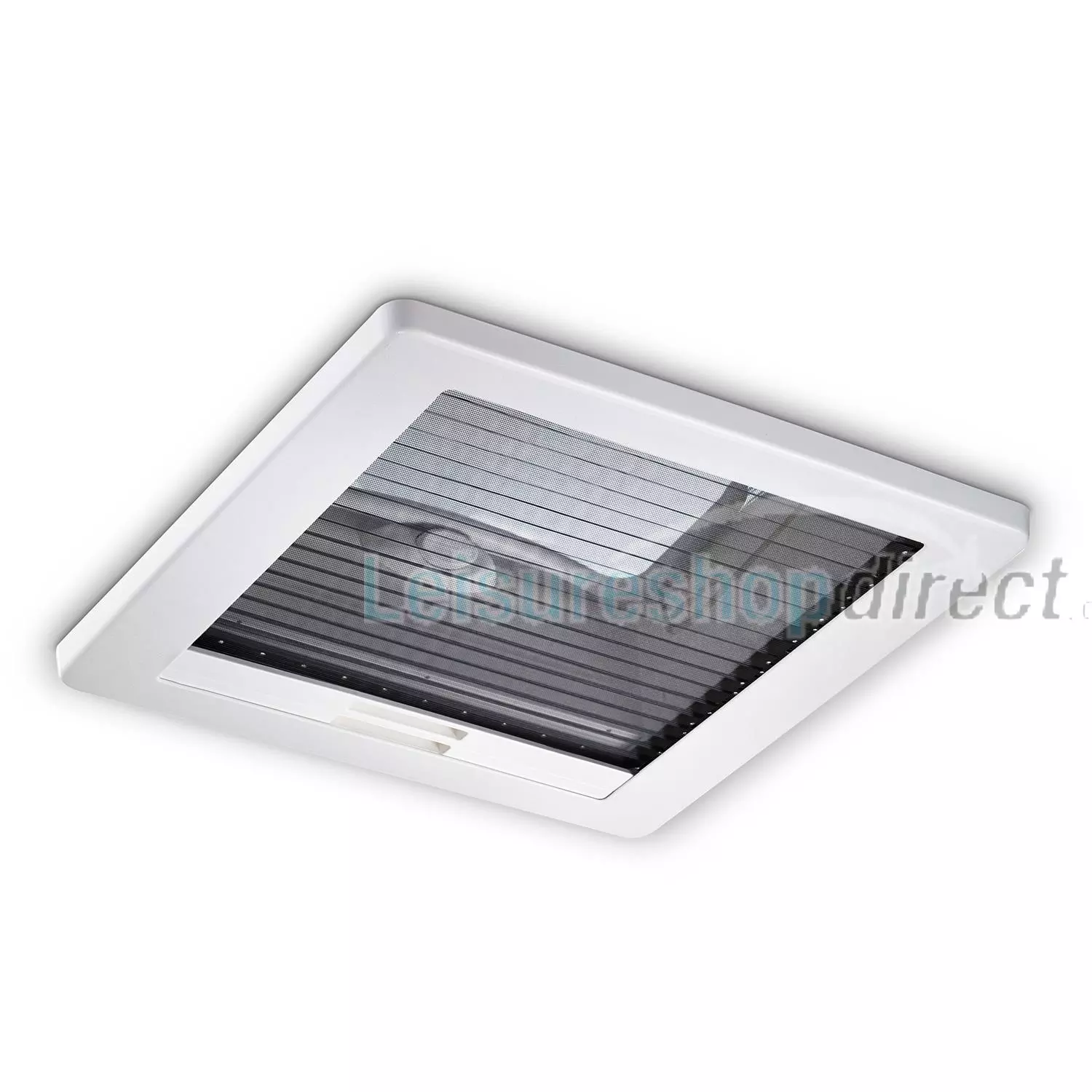

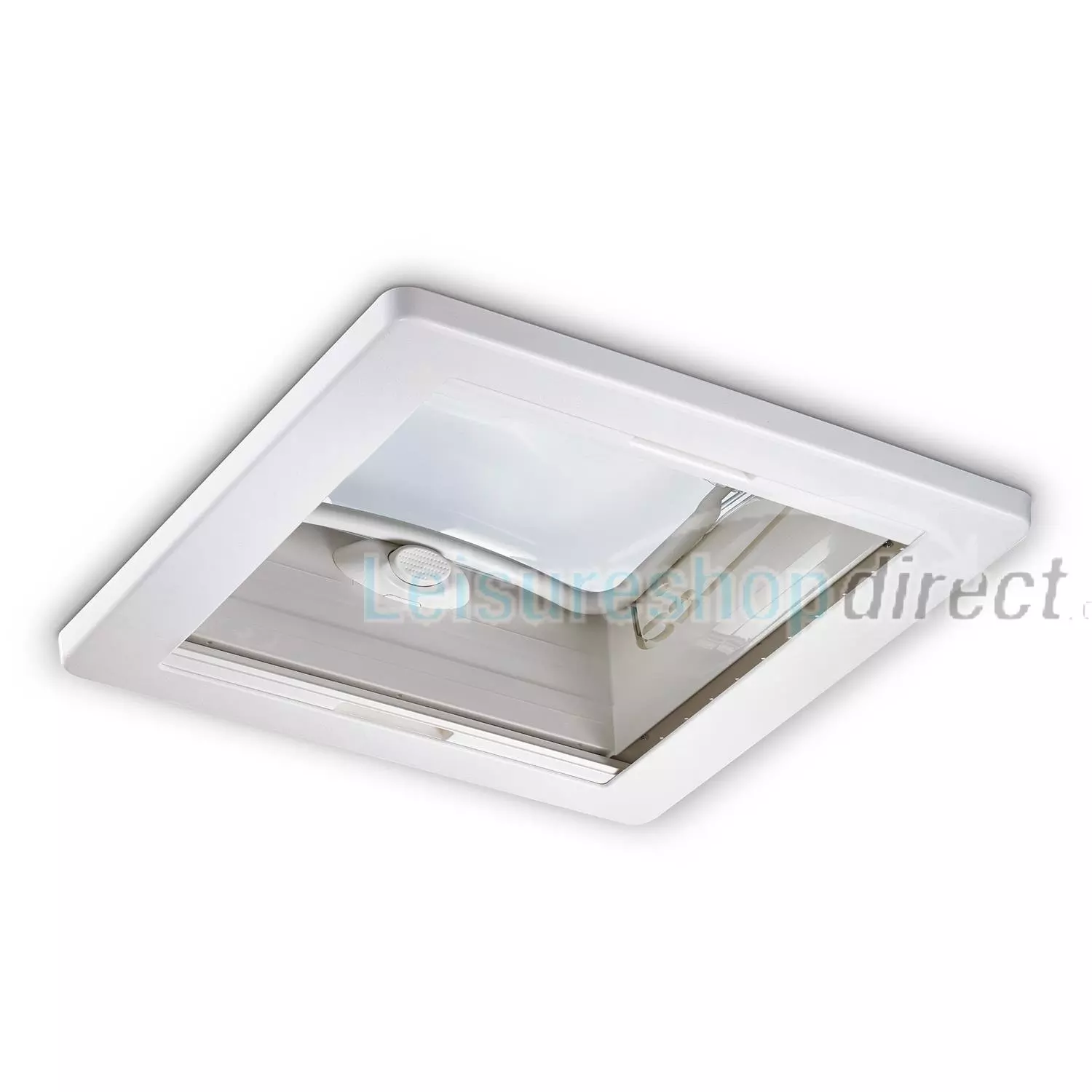

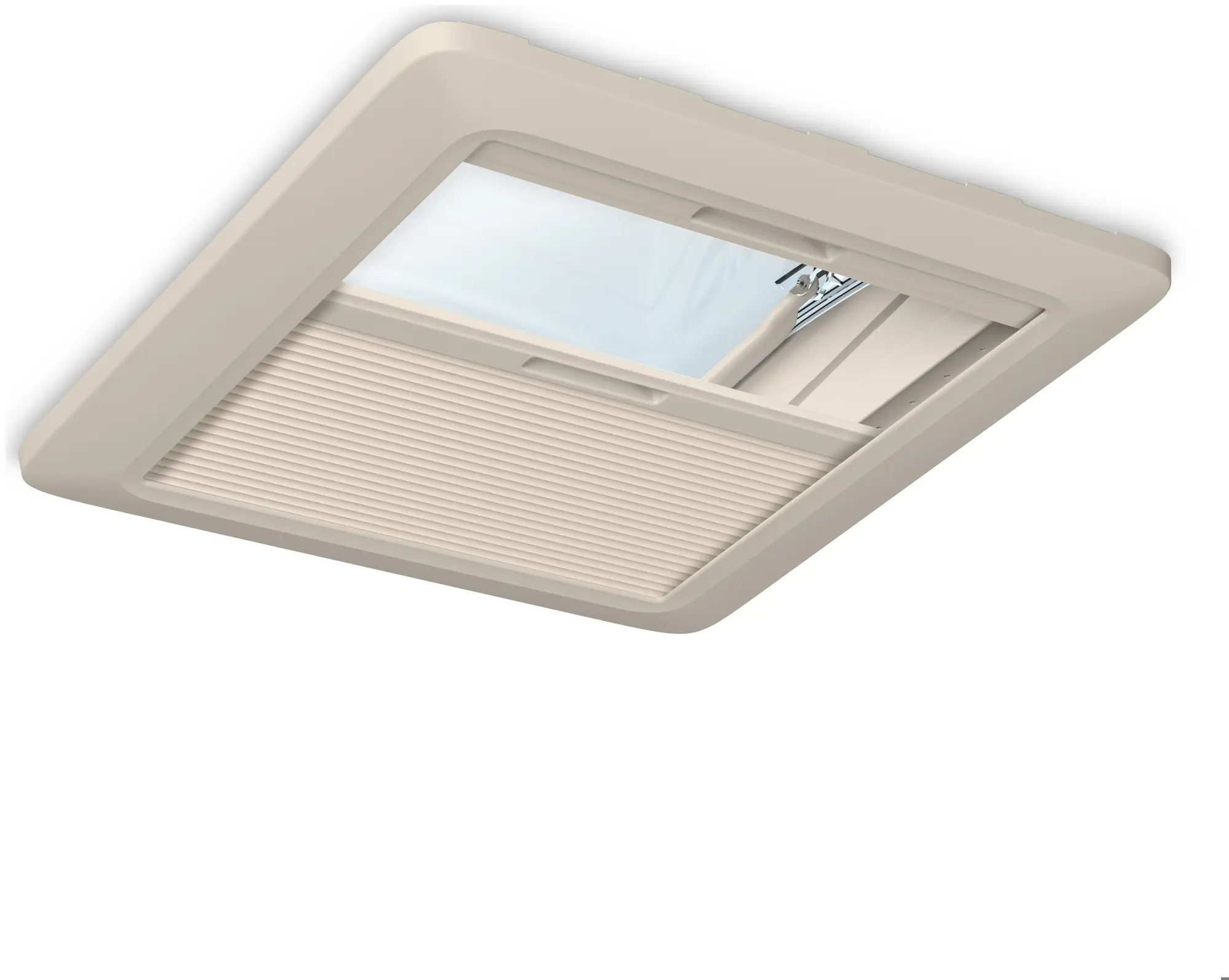

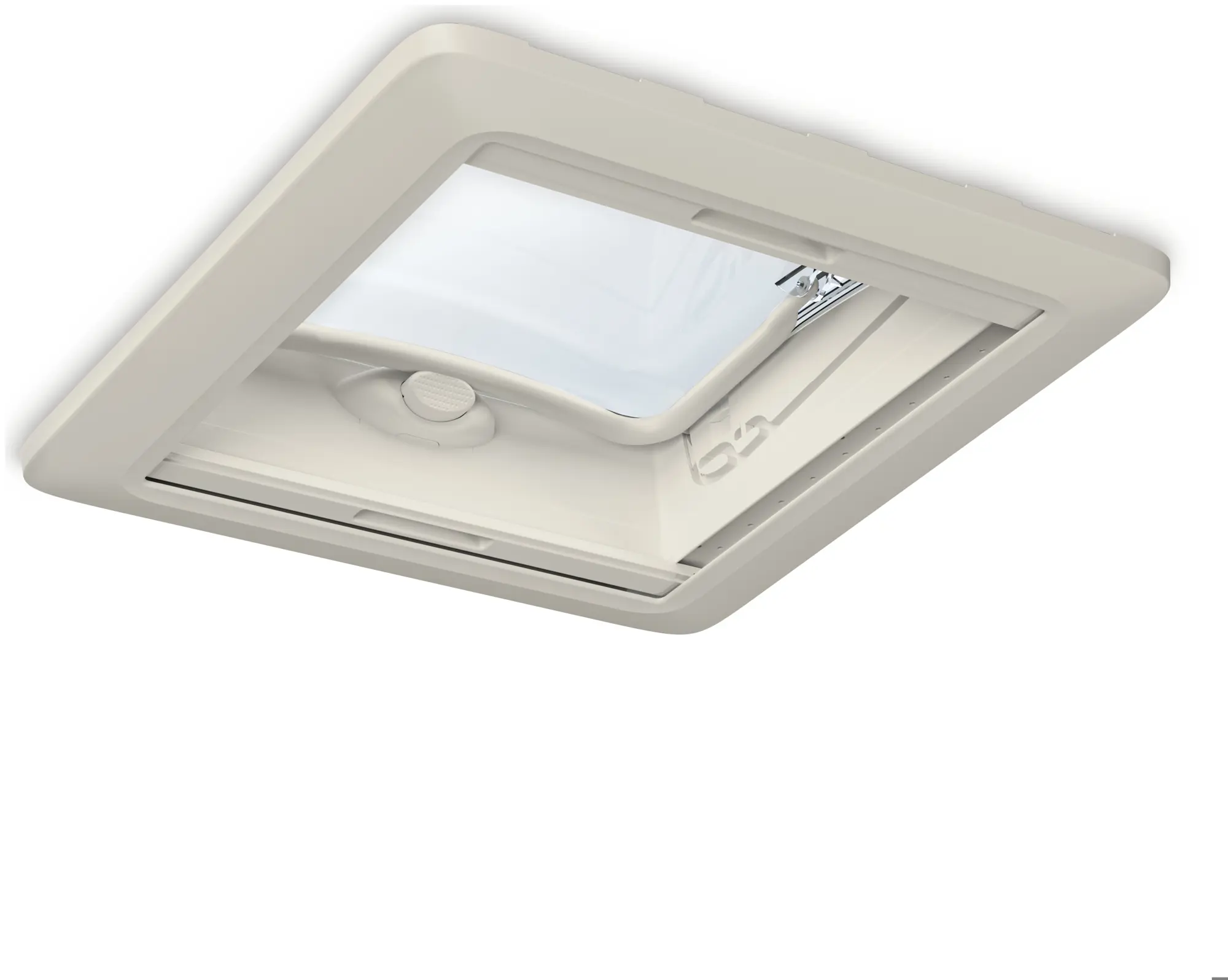

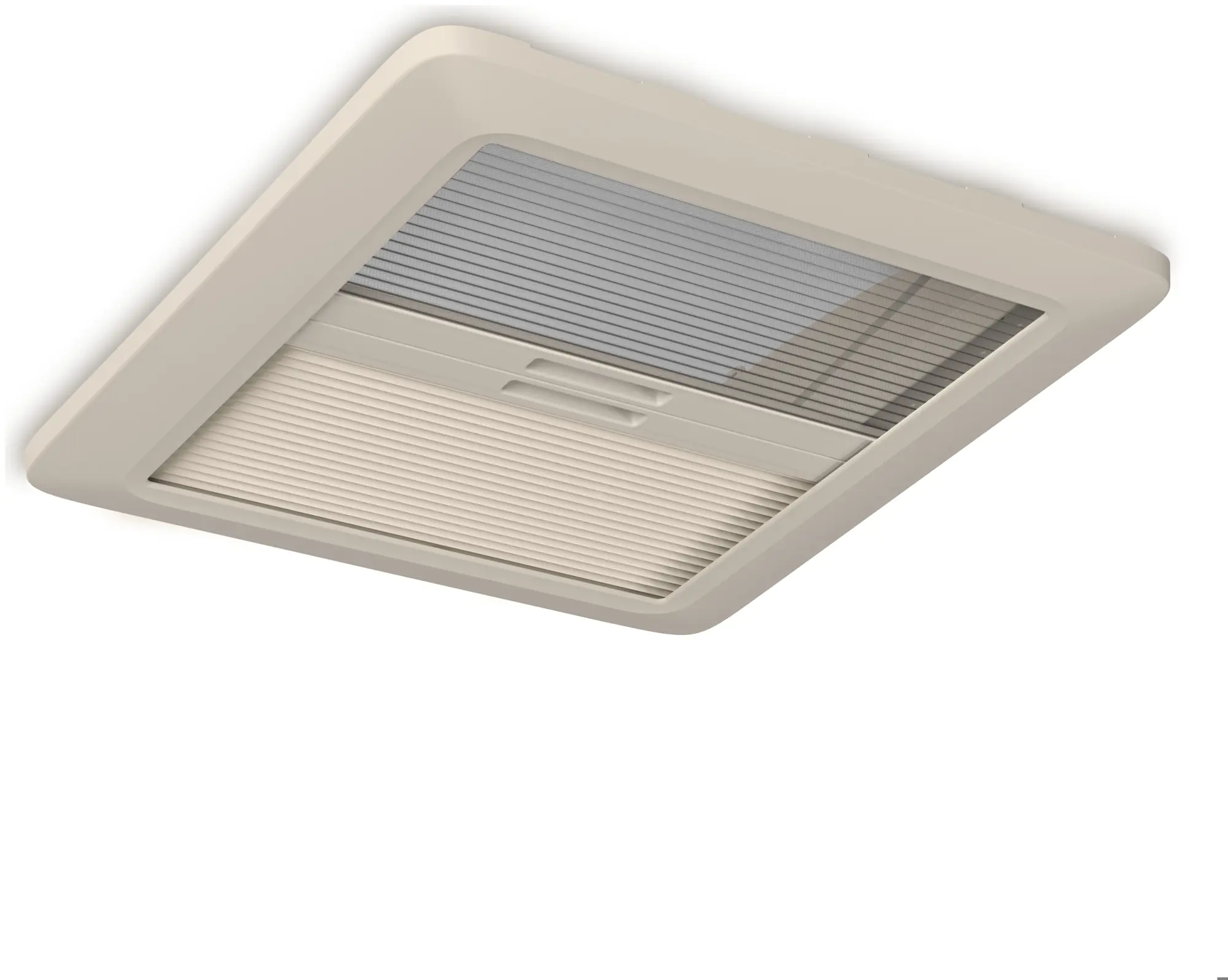

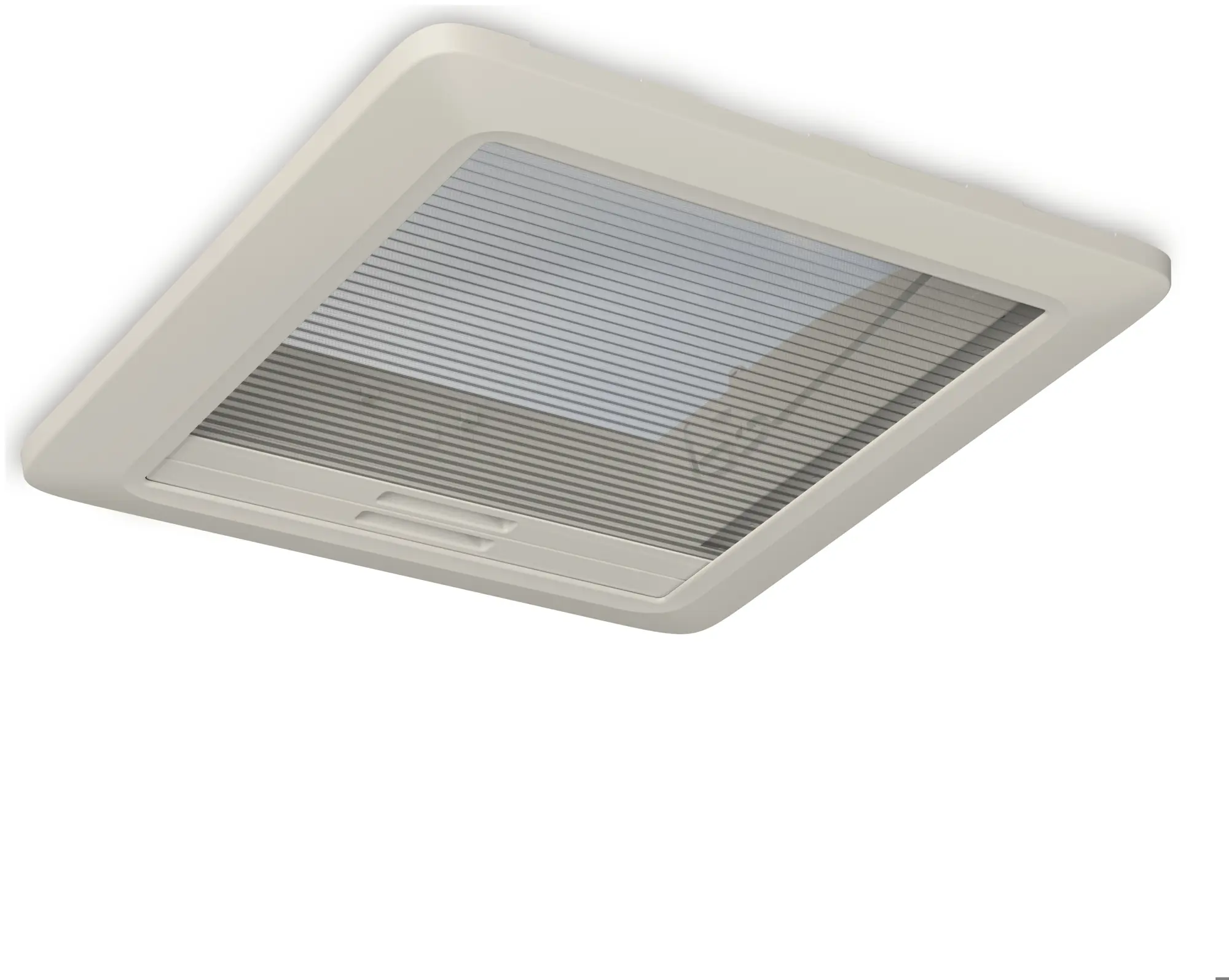

This handle-operated, double acrylic glazed Mini Heki Style roof light for motorhomes and caravans fits neatly into a standard 400 x 400 mm aperture. An inner frame holds a darkening blind and fly screen (separately adjustable) for shade, privacy and freedom from insects! Operated by a hand-lever, the dome can be opened to three different positions: fully open, half-open and bad-weather position.

The Mini-Heki style (formerly Plus) is suited exceptionally well for installation in standard-sized dome lights (400 x 400 mm). With a black flyscreen and a pleated fabric blind to guarantee efficient dimming.

This rooflight is with fixed ventilation of 15 sq cm for roof thickness 25 - 42mm.

What's the difference between with or without fixed ventilation?
Without Fixed Ventilation
This means when the Dometic Mini Heki Style is closed it is completely sealed. There is no ventilation. This is the best option for a motorhome. If a motorhome owner decided to fit a "with fixed ventilation" rooflight, the air would flow through the ventilation gap whilst driving and likely cause a wind noise or whistling. This obviously doesn't matter in a caravan!

With Fixed Ventilation
When the rooflight is completely closed there is still a small amount of ventilation. This helps prevent damp and is the option that should be used in caravans.


Other options:

Quick View     Dometic Mini Heki Style Rooflight - with fixed ventilation for roof thickness 43 - 60mm
Quick View     Dometic Mini Heki Style Rooflight - without fixed ventilation for roof thickness 43 - 60mm
Quick View     Dometic Mini Heki Style Rooflight - without fixed ventilation for roof thickness 25 - 42mm


Specifications

  • Installation area: : 535 x 520mm (d x w)
  • Hole (aperture) required in roof : 400 x 400mm
  • Overall dimension over dome : 530mm square
  • Internal dimensions : 510mm square
  • Weight : 3.3kg

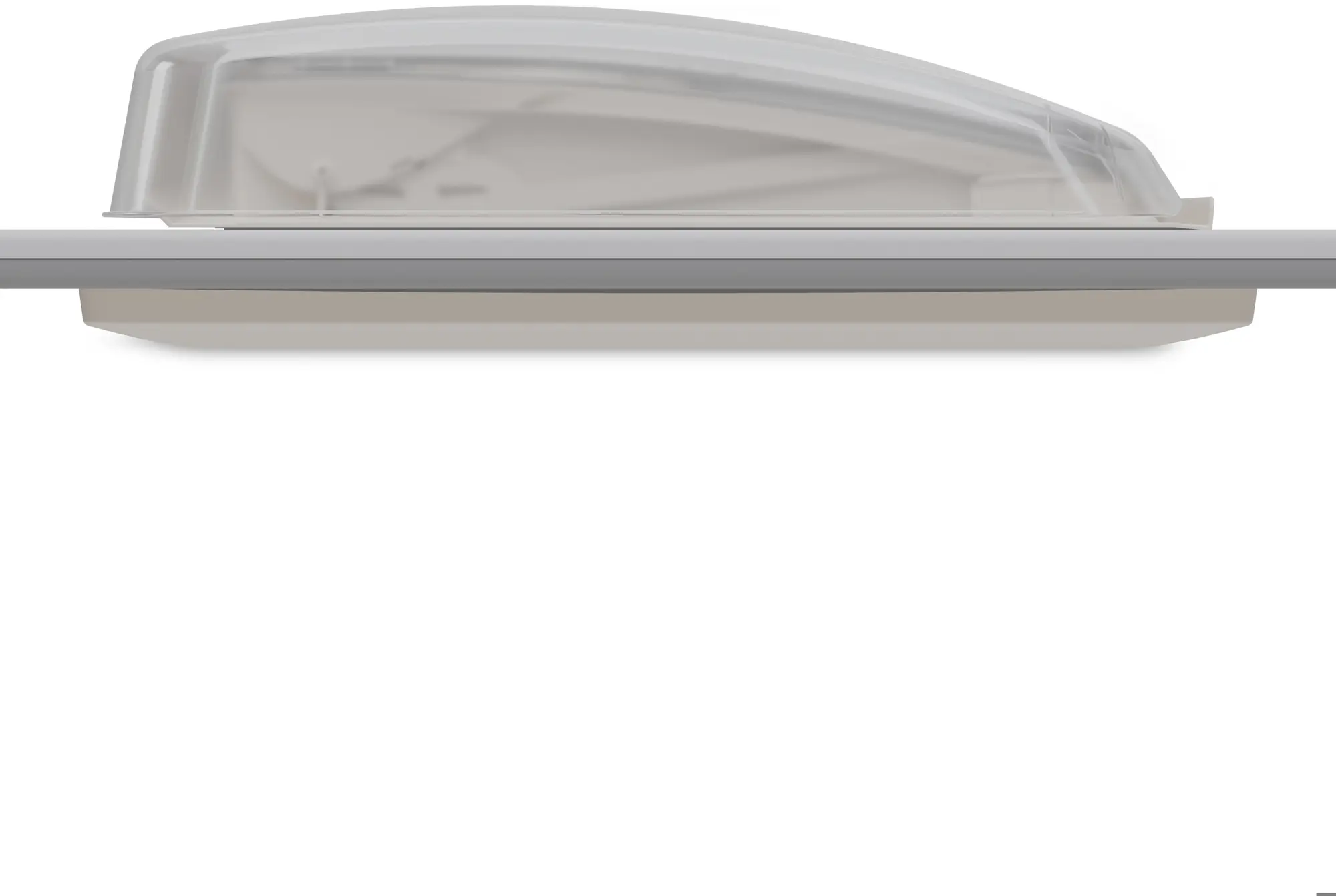

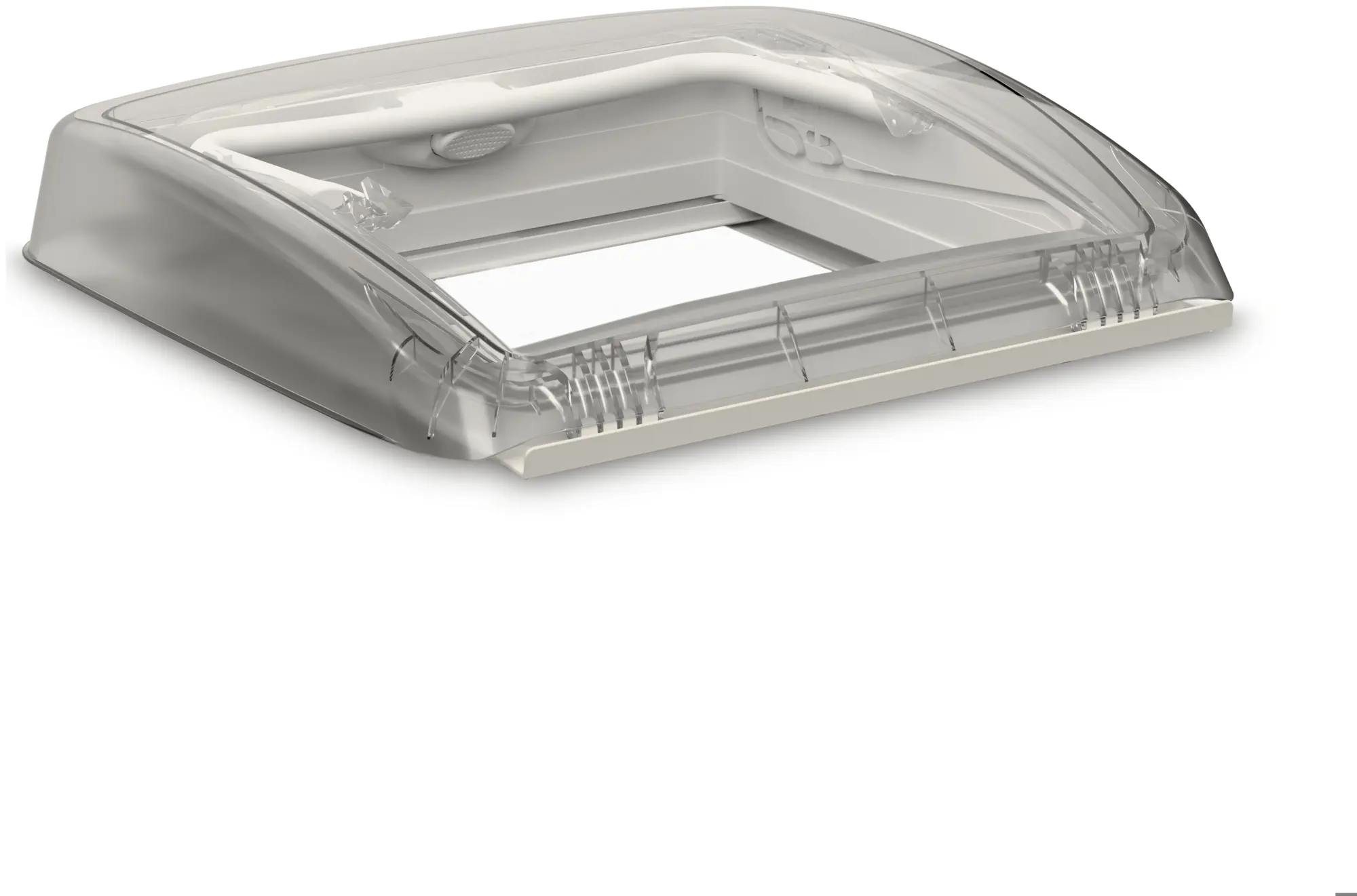

  • Double-glazed, aerodynamically shaped glass dome made of unbreakable Polycarbonate and tinted light grey.
  • Frame made of durable, weatherproof ASA.
  • The inner and outer pane are glued together which makes them dustproof and easy to clean.

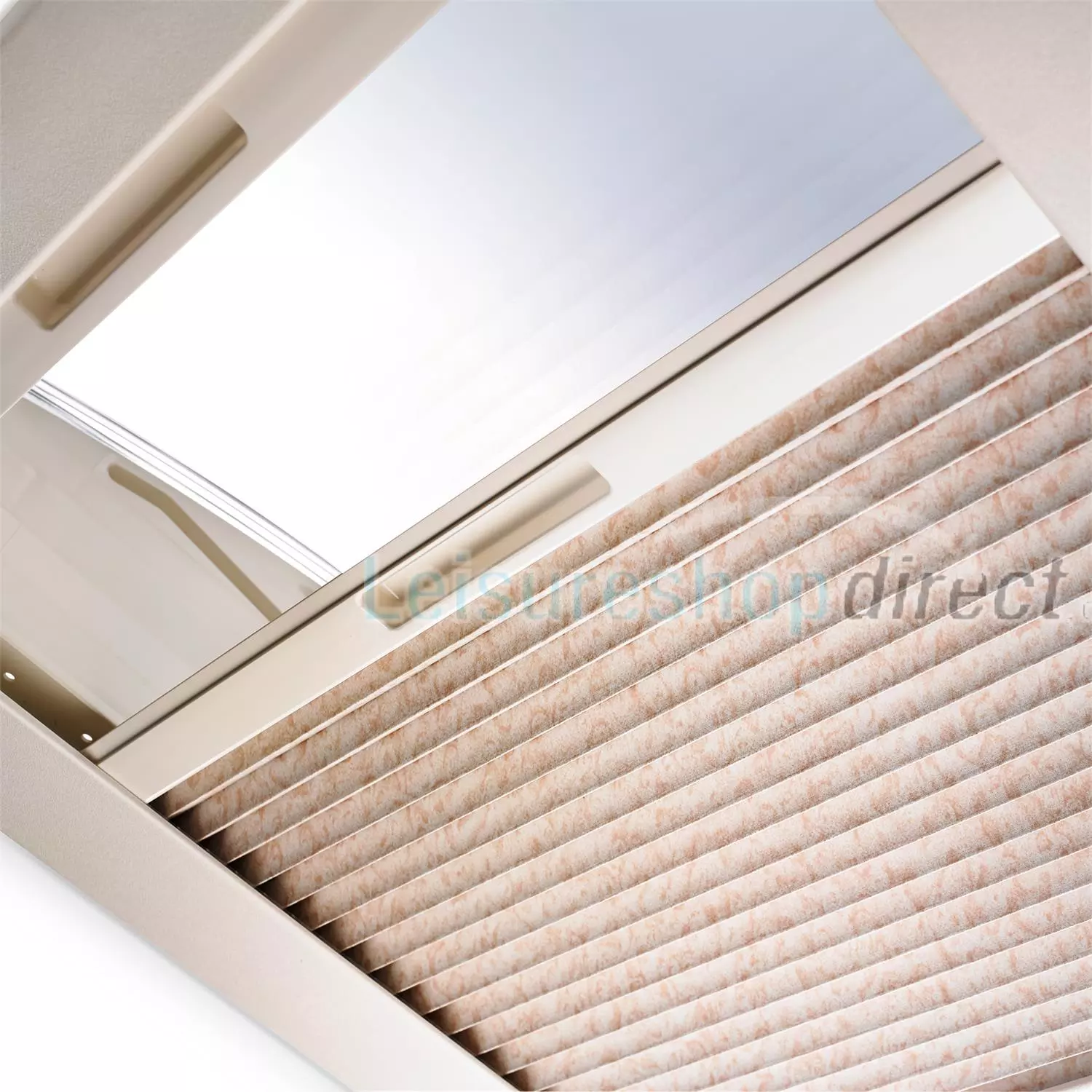

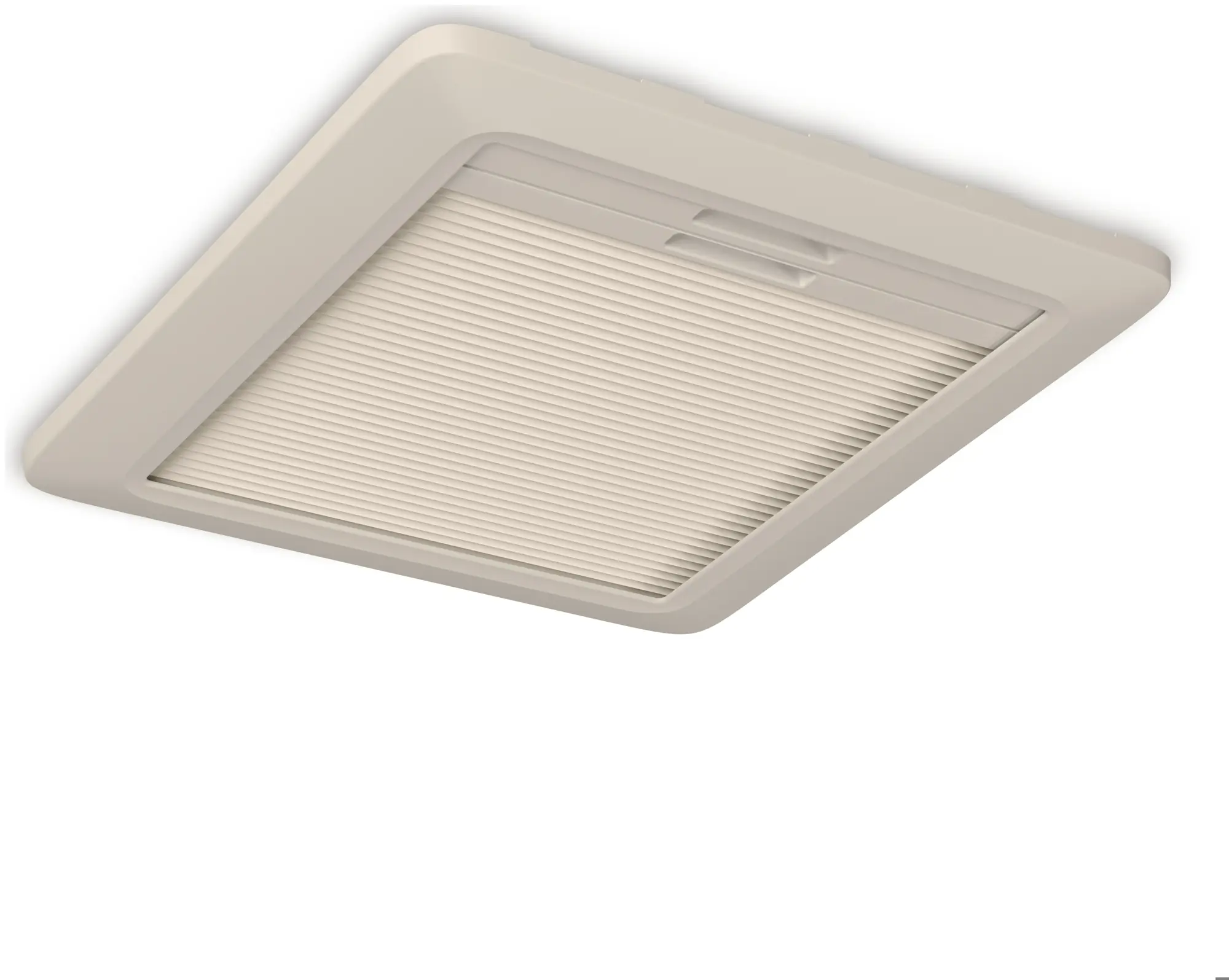

  • The fabric is aluminium coated on the outside to reflect infrared rays and non-transparent to protect your privacy.

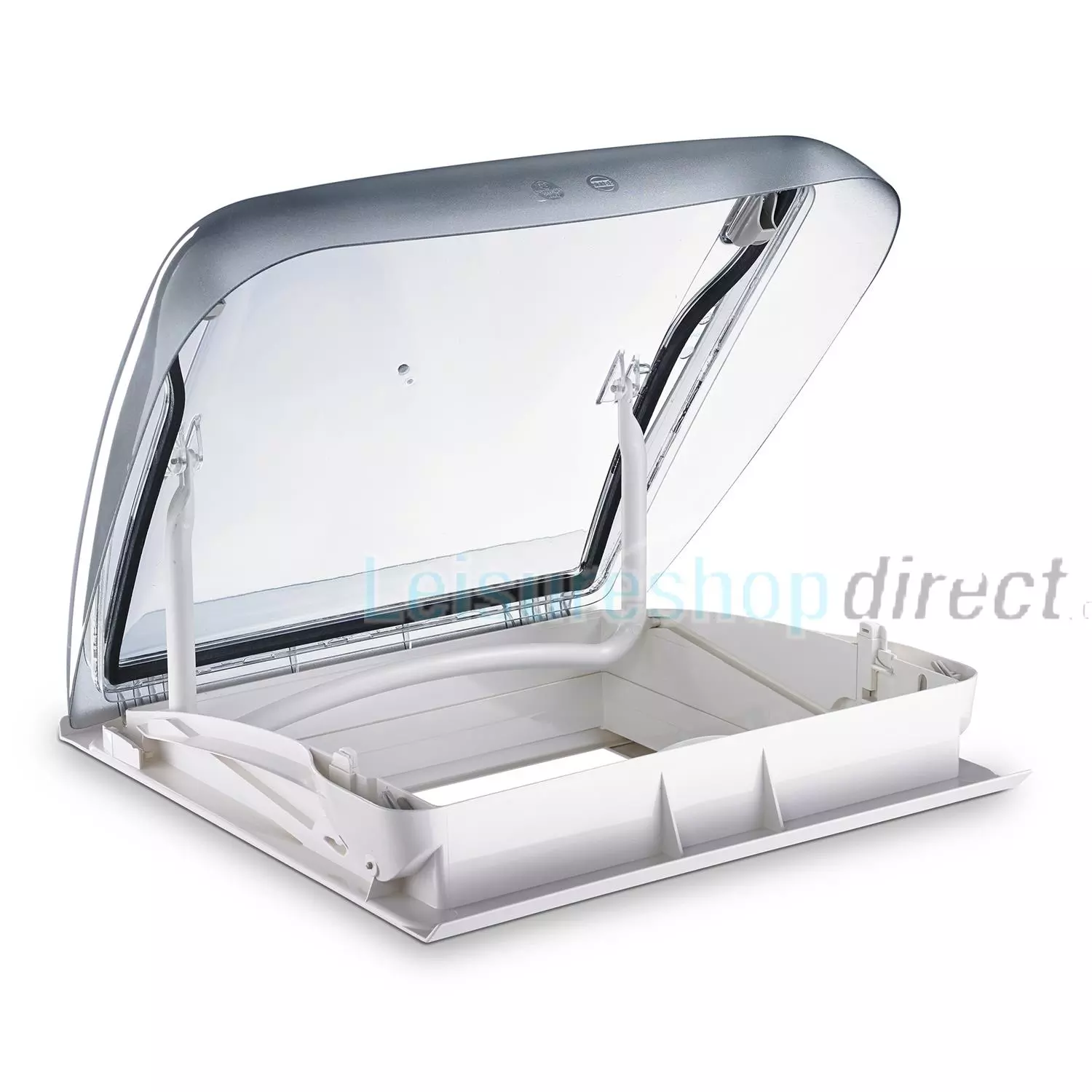

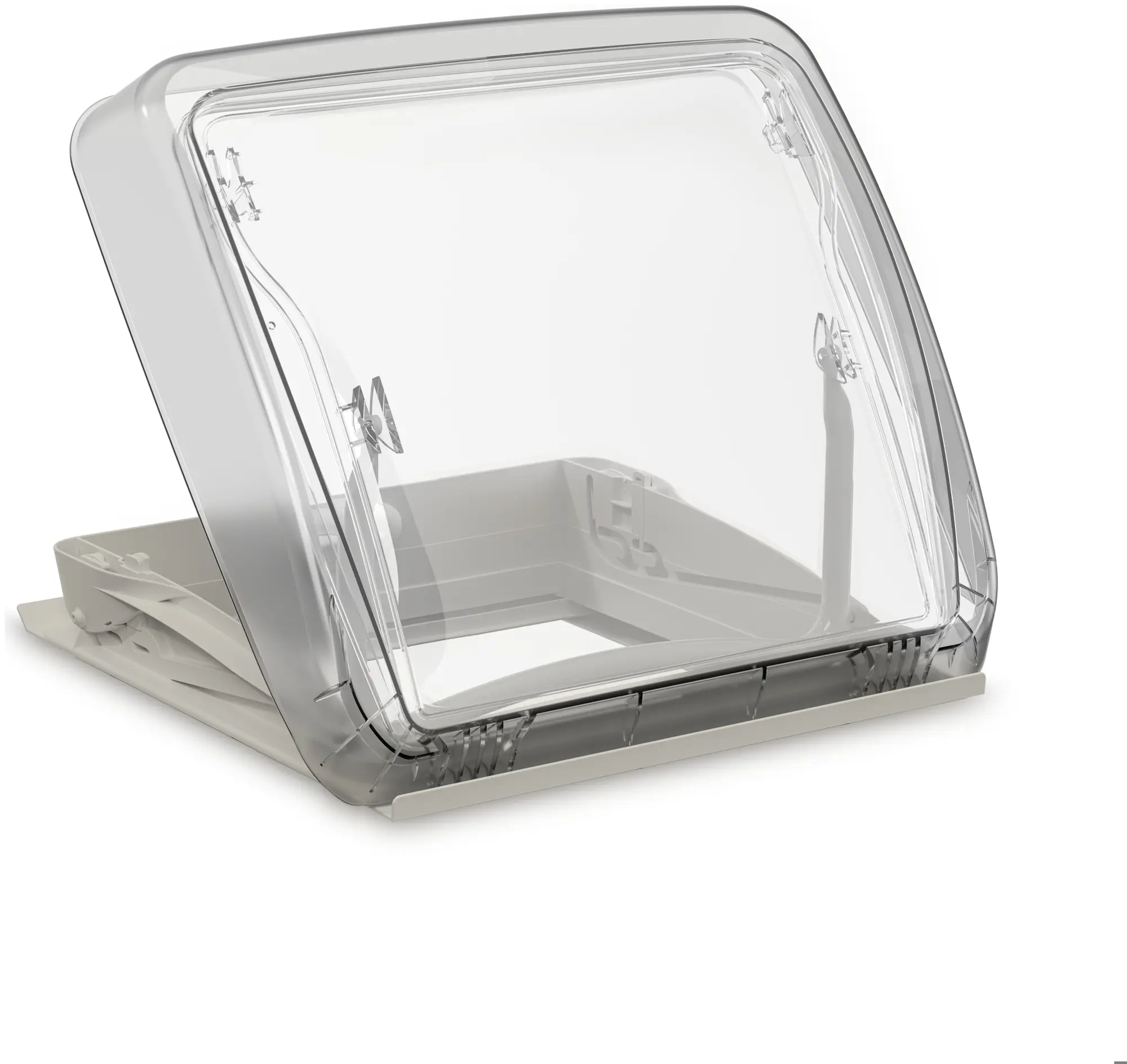

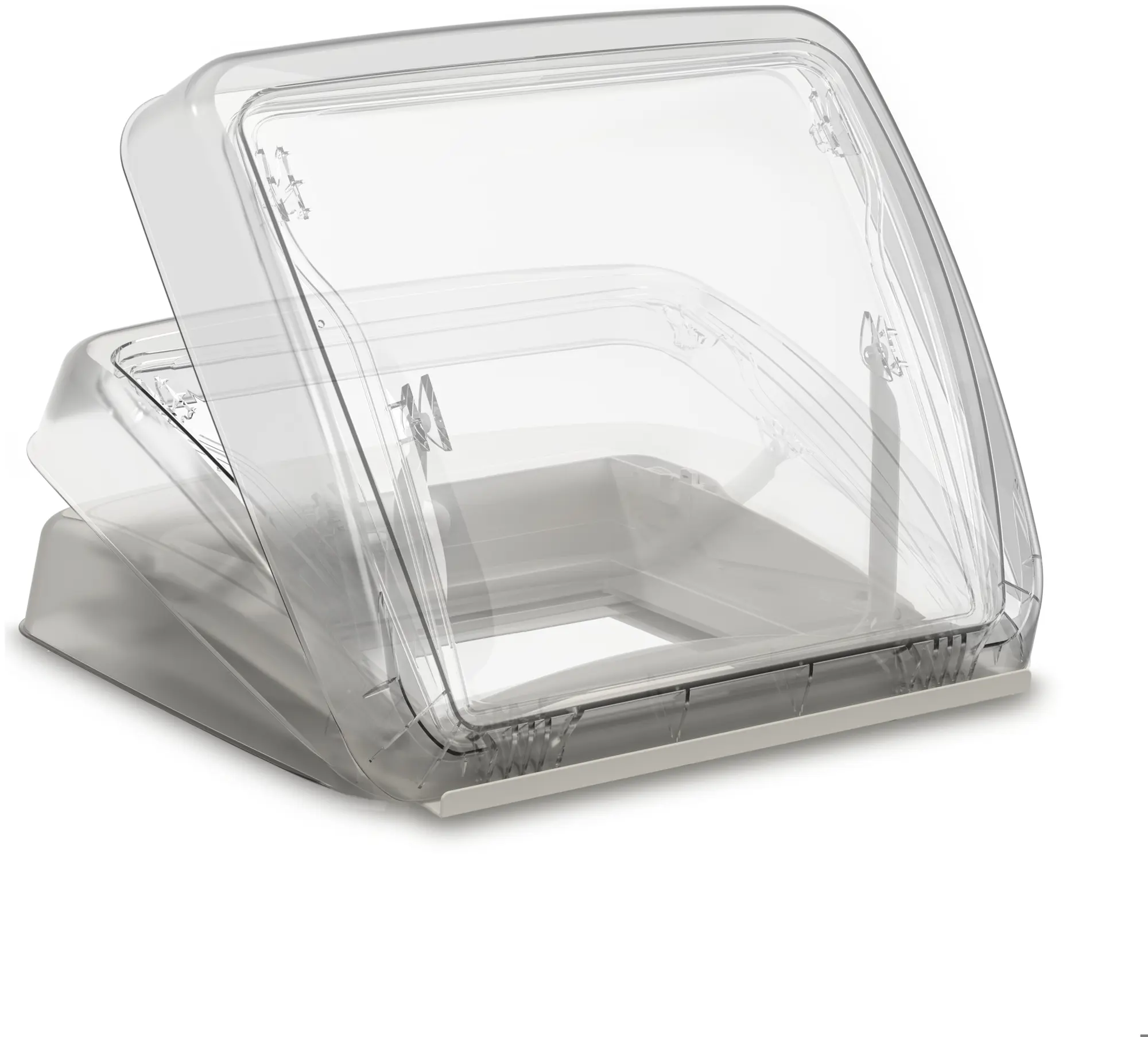

  • Opens in three positions: completely open, half open and bad weather position. The special design guarantees that no water can splash inside when the glass dome is in bad weather position.

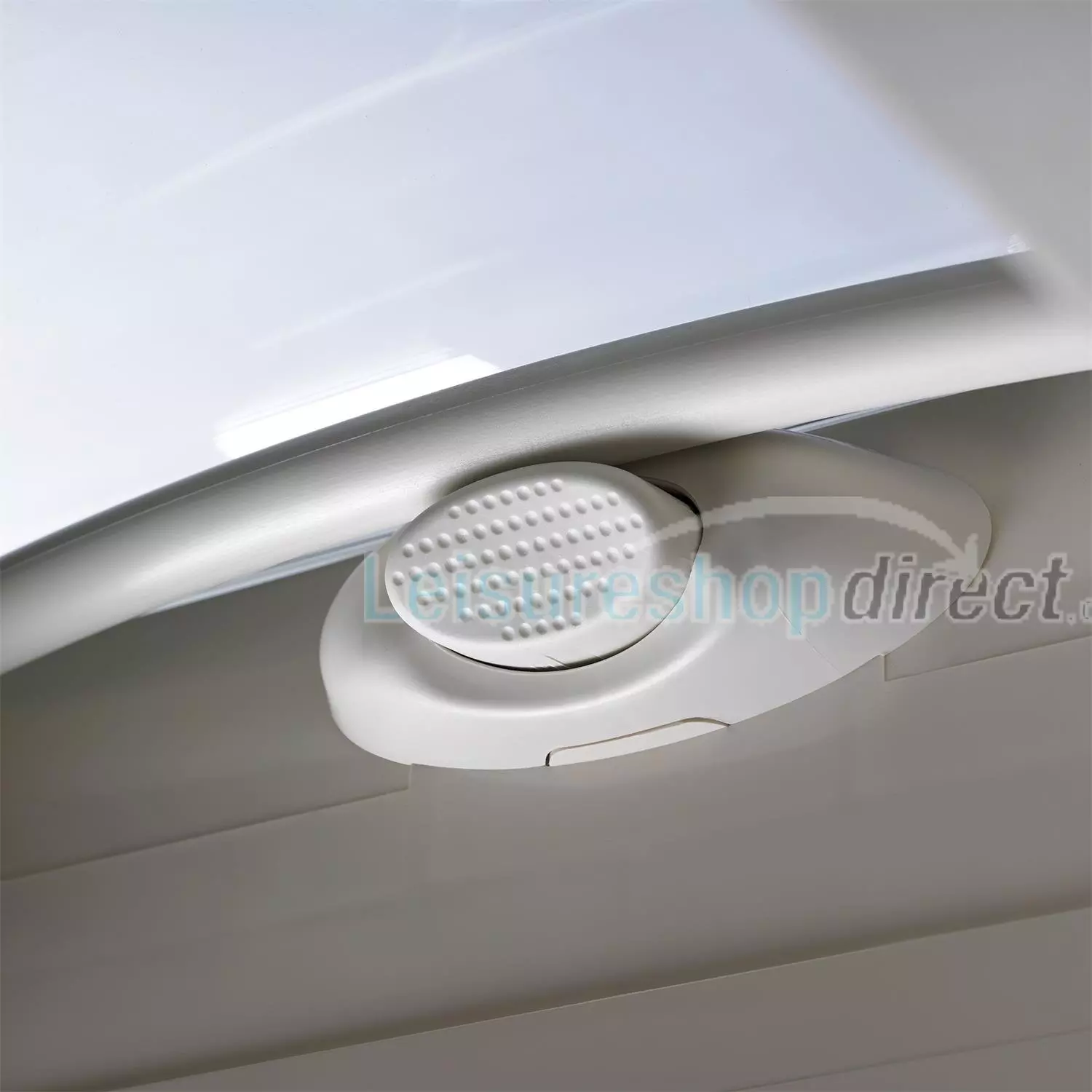

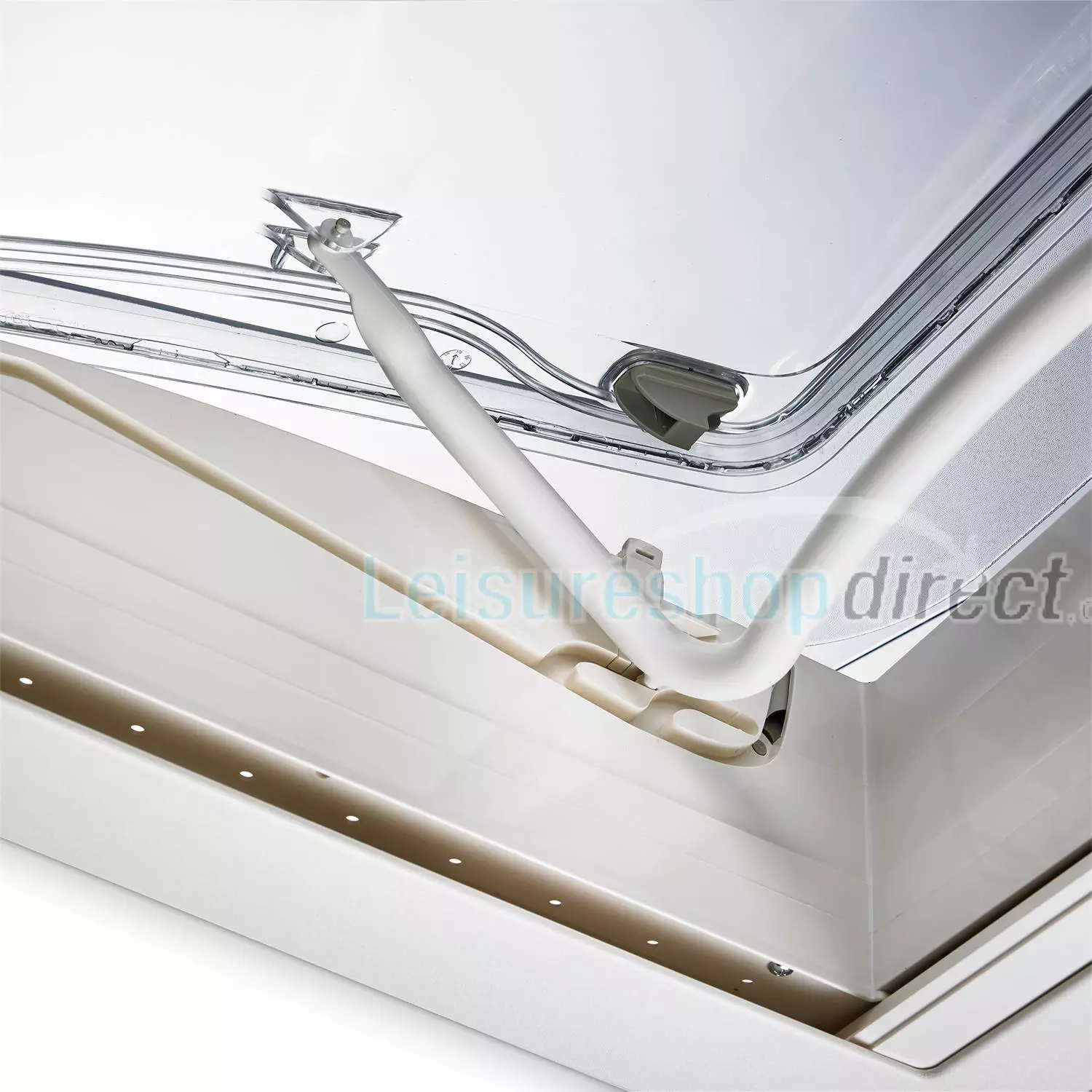

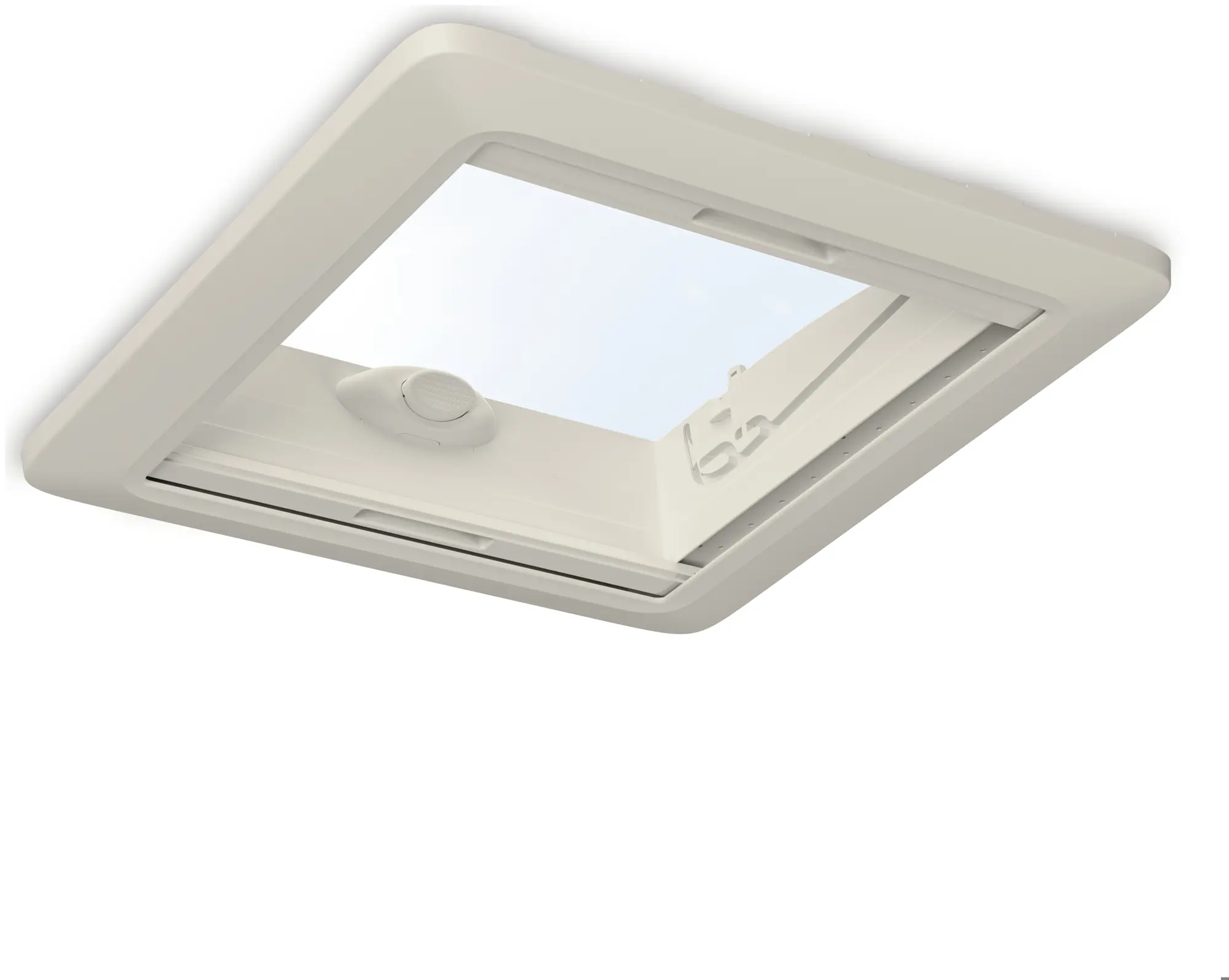

  • Comfortable adjusting of the glass dome with support of a handy operating lever: the dome is automatically locked when closed.
  • Available with or without compulsory ventilation
  • Easy installation in roofs with a thickness of 25 to 42 mm

EAN-13 : 4015704239201

3 FAQs on the Dometic Mini Heki Style Rooflight - with fixed ventilation for roof thickness 25 - 42mm

After the recent storms, I need to replace the mini Heki roof light over the kitchen on our Swift Fairway 500, 2006 model. Could you please tell me which one is the correct size and roof thickness. Many thanks.
The Mini Heki rooflight fitted on your caravan is our ref. 120563.
Can some one please tell me what size heki roof vent i would need for a Sterling Elite Explorer 2012 model, the one in the washroom/bathroom.
This will be the Mini Heki rooflight with fixed ventilation, our ref 120563
Hello I would like to order a heki complete roof light for a bailey senator Oklahoma 2004 model the bailey serial no is 1110068 please can you tell me which is the one I want from your catalogue they seem to be different roof thicknesses etc and I don't know
You will need product number 120563 providing the hole in the roof is 400 x 400

Further Information

10 Customer Reviews on Dometic Mini Heki Style Rooflight - with fixed ventilation for roof thickness 25 - 42mm

Replacement Roof Light For My Caravan

by Mrs Linda MacDonald (11 Sep 2020)
4 star review(4/5)
Easy to order and delivery was spot on. My rooflight was a victim of the high winds we have had recently and I needed a replacement quickly. Your company came up trumps for me, thank you

Whoops!!!

by Mr Henderson (09 Sep 2020)
5 star review(5/5)
We keep our caravan on the drive and left the rooflight on the first catch unfortunately due to the strong winds it actually ripped off the the dome. Needed a quick replacement but couldn't find just the dome anywhere (out of stock) so ordered this, it came the next day and the dome was easy to fix on to original rooflight.

Dometic Mini Heki Rooflight

by Doug (28 Aug 2018)
5 star review(5/5)
Superb piece of kit which has transformed the amount of light in our 12 year old Coachman by replacing the old and brittle diffuse style rooflights. Easy enough to fit (so long as you are brave with a Stanley knife) and very good quality.

Caravan Rooflight

by Fraz (03 Jul 2018)
4 star review(4/5)
Easy to fit and good quality. Look forward to trying it out now.

Mini Heki

by roy birch (27 Mar 2018)
5 star review(5/5)
good quality purchased to replace and up grade toilet vent in a caravan easey to fit

Mini Hekiplus

by Westbay (21 Sep 2016)
4 star review(4/5)
Replaced two older roof lights. Yes they fit in the original 400mm holes, but the inside fittings were a couple of inches bigger then before so needed adjustment to inner roof lining. Not a quick job! Finished job is okay.

Replacement Rooflight

by Alan Turner (27 Feb 2016)
5 star review(5/5)
I bought the DOMETIC MINI HEKIPLUS ROOFLIGHT - WITH 15 SQ CM FIXED VENTILATION FOR ROOF THICKNESS 25 - 42MM as a direct replacement for a storm damaged one. Good quality and easy to fit. You need a none setting sealant which is not supplied. There are a few differwnt versions of the skylight so take care to ensure you order the right one. The job took around an hour and a half although it would take longer if you were installing from scratch and cutting a hole in your roof. The worst bit being removing the old silicone and cleaning the roof prior to installing the replacement. Access to your caravan roof is required. Tools needed are a posi screwdriver, something to pry the old skylight off without damaging the roof and something to scrape the old silicone off. The item took a while to arrive so I assume it was sourced from supplier upon order, frustrating that this isn't made a little clearer but none of the local caravan shops carried stock and at least ordering it from here meant that it was delivered to my door free of charge. In my opinion easier to do this job yourself than drag your caravan to a local repair centre.

Domestic Mini Hekiplus Rooflight

by Mr Foskett (09 Oct 2012)
5 star review(5/5)
This item transformed the appearance of the kitchen area, letting in more light than the old rooflight, It was easy to fit, taking less than an hour and is easy to use.

Domestic Mini Hekiplus Rooflight For Compass Rallye 500/5

by caravancrazy (14 Aug 2010)
5 star review(5/5)
A great improvement replacing the origional opaque rooflight not verey difficult to replace perfect fit always clean off all old sealant & make sure a good thick bead of new sealant is spread round edge off apperture this makes sure that there is no possibility off any water leaks at a later date if english wseather is anything to go by.

Dometic Mini Hekiplus Rooflight

by Mr Jenkins (11 Jul 2010)
5 star review(5/5)
A very good product. Easy to fit and makes an excellent replacement for the old opaque skylights that were fitted to my van.
