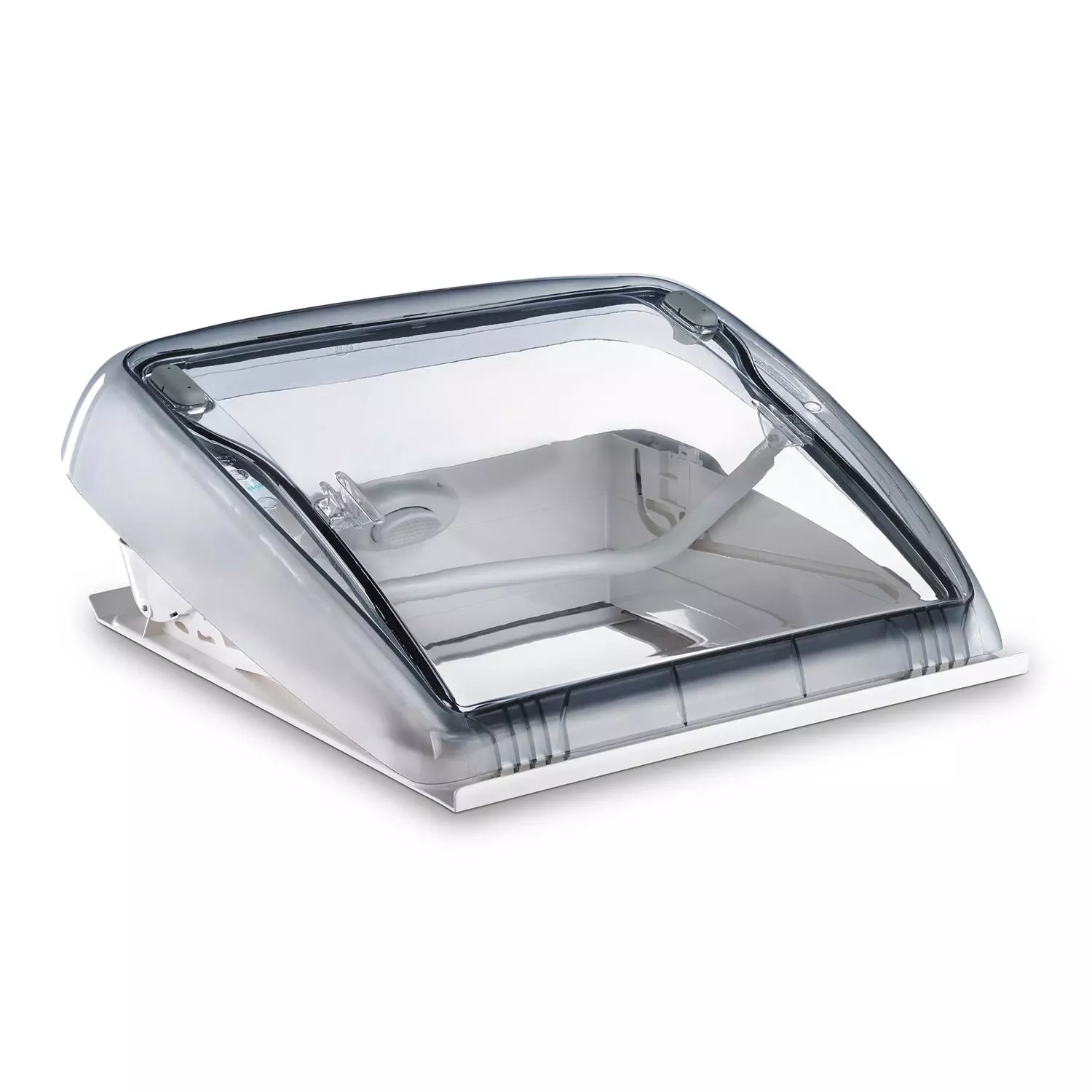

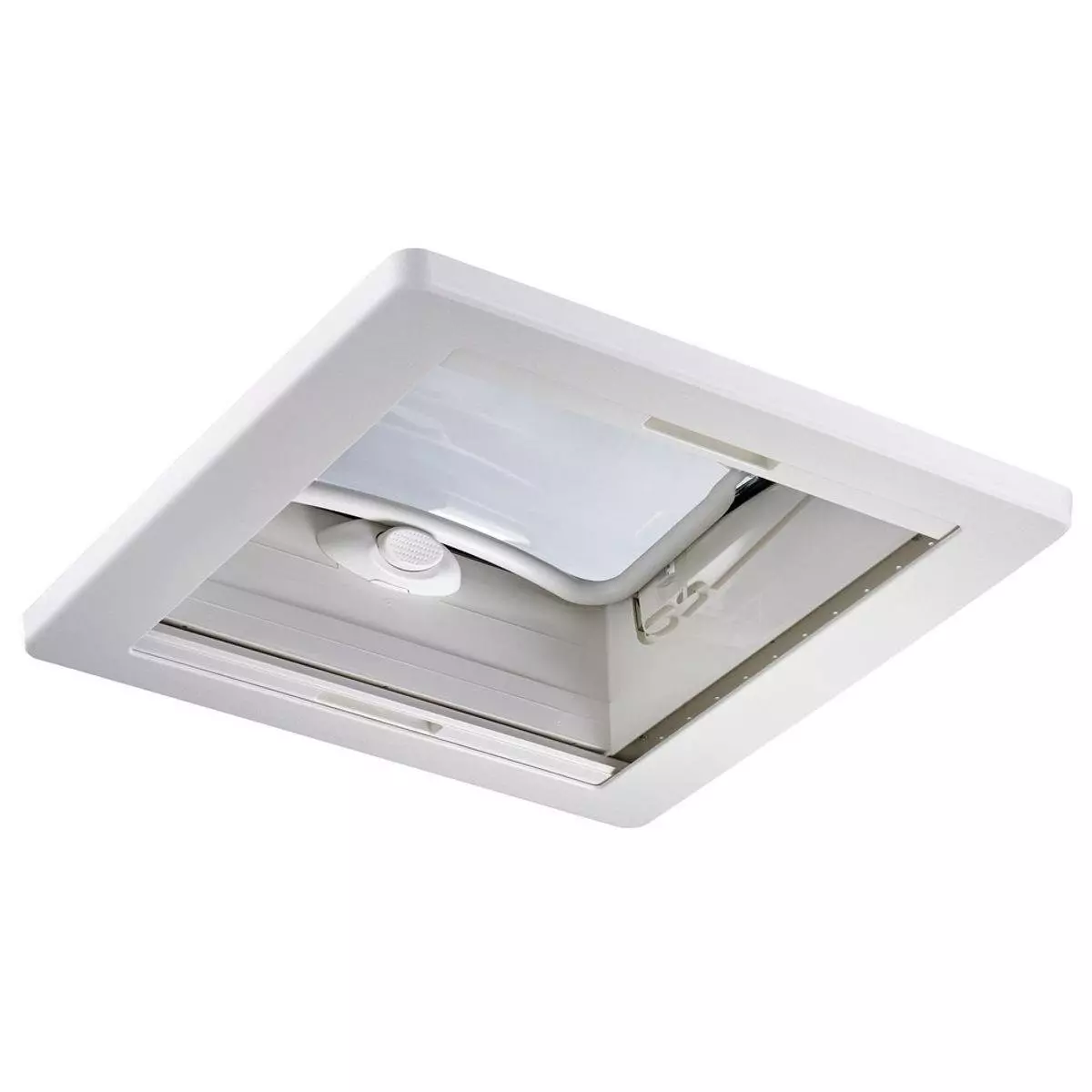

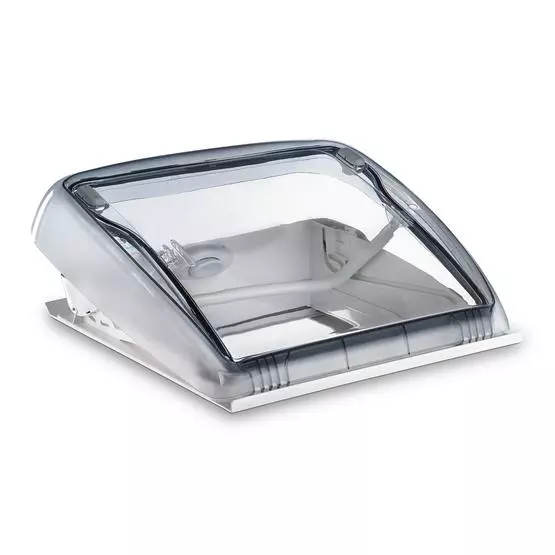

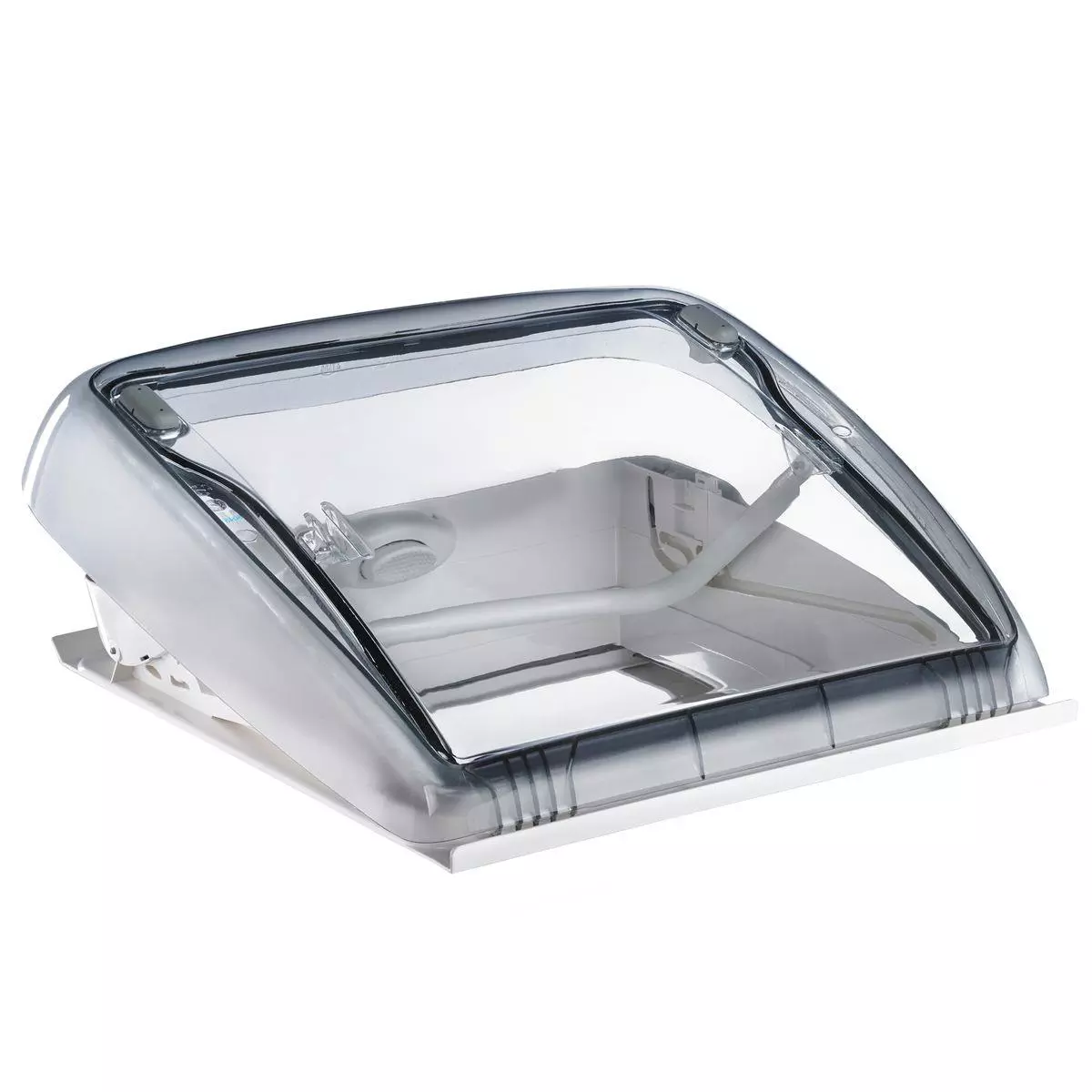

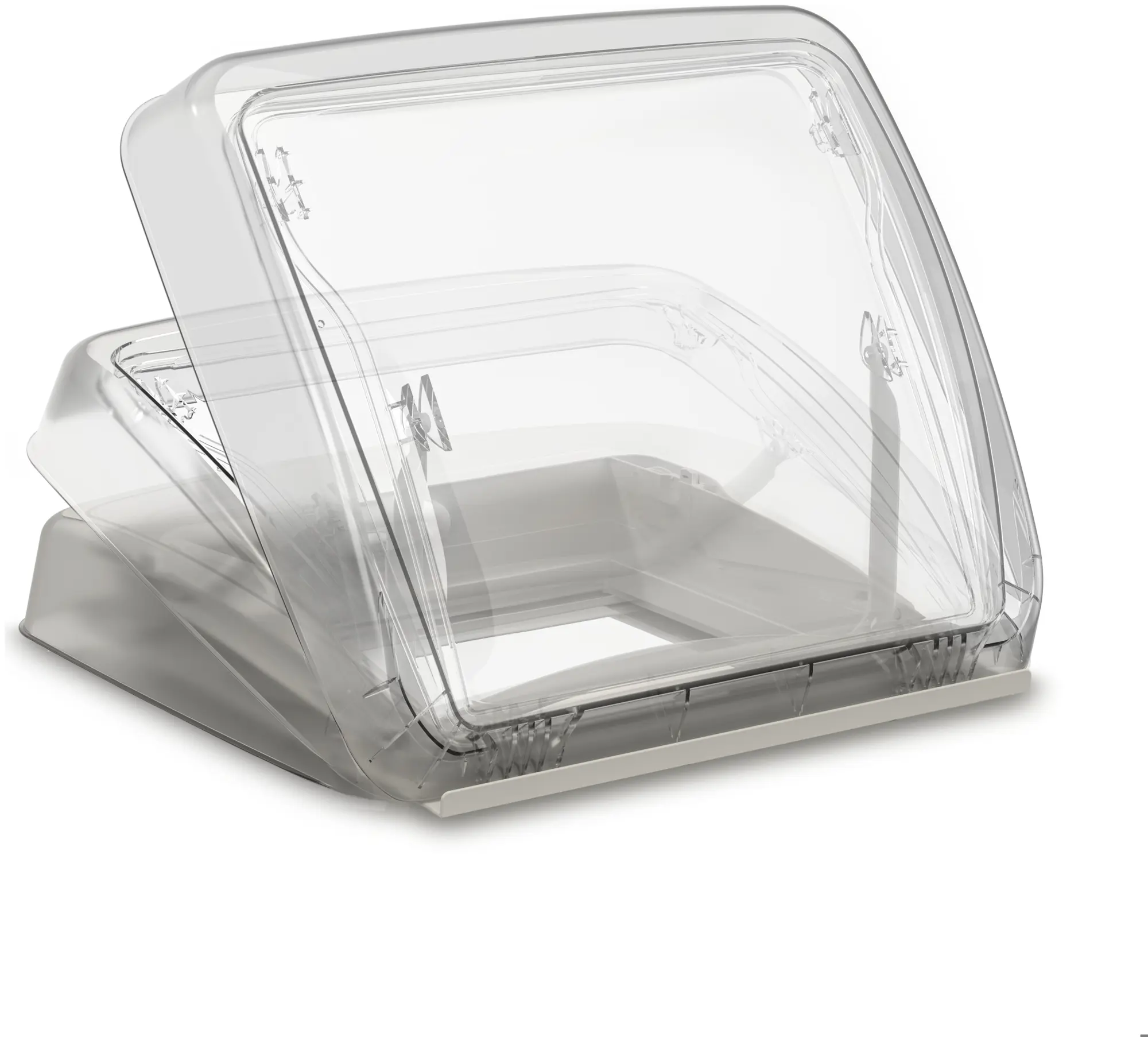

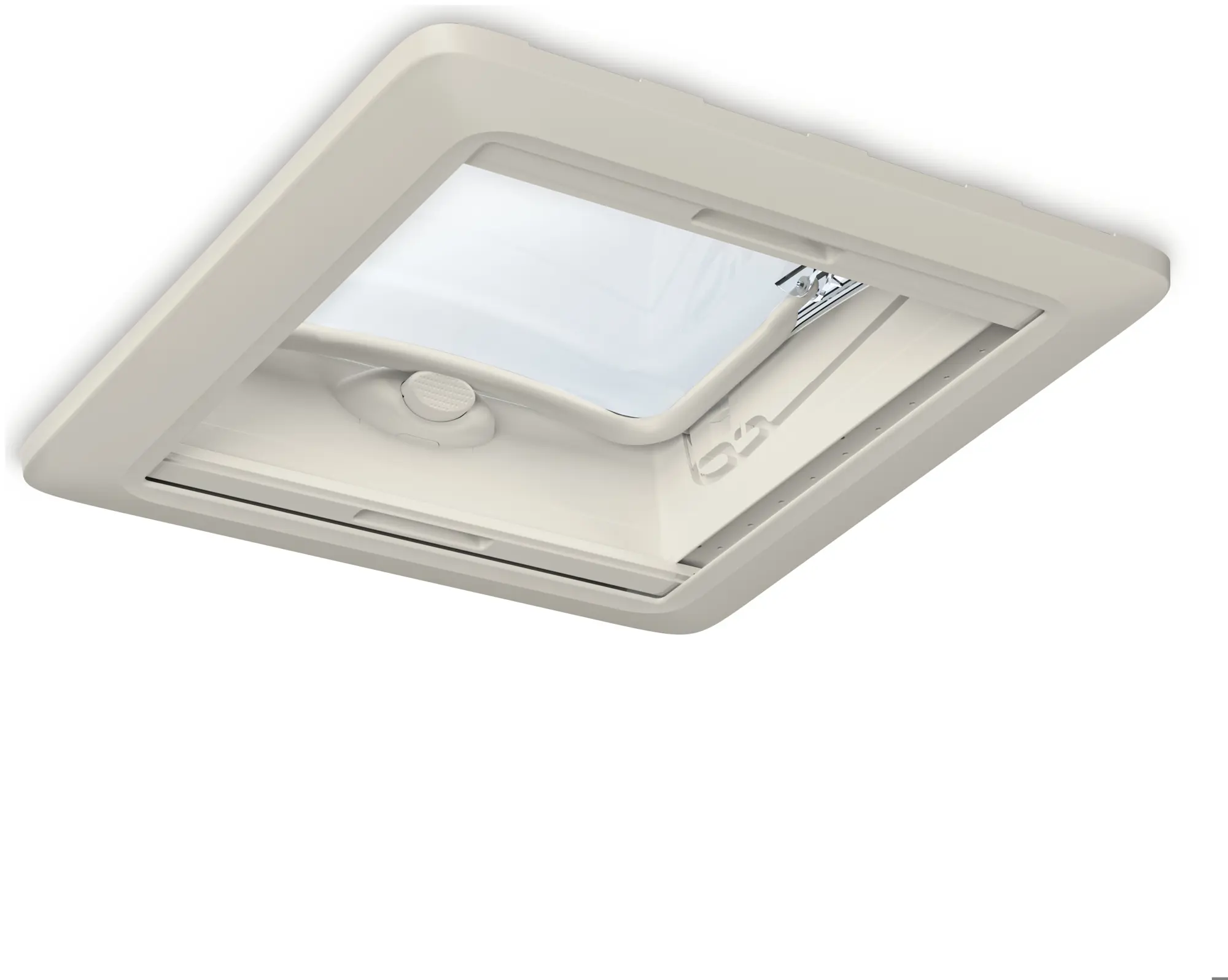

Dometic Mini Heki Style Rooflight - without fixed ventilation for roof thickness 25 - 42mm image 1 Dometic Mini Heki Style Rooflight - without fixed ventilation for roof thickness 25 - 42mm image 2 Dometic Mini Heki Style Rooflight - without fixed ventilation for roof thickness 25 - 42mm image 3 Dometic Mini Heki Style Rooflight - without fixed ventilation for roof thickness 25 - 42mm image 4 Dometic Mini Heki Style Rooflight - without fixed ventilation for roof thickness 25 - 42mm image 5 Dometic Mini Heki Style Rooflight - without fixed ventilation for roof thickness 25 - 42mm image 6

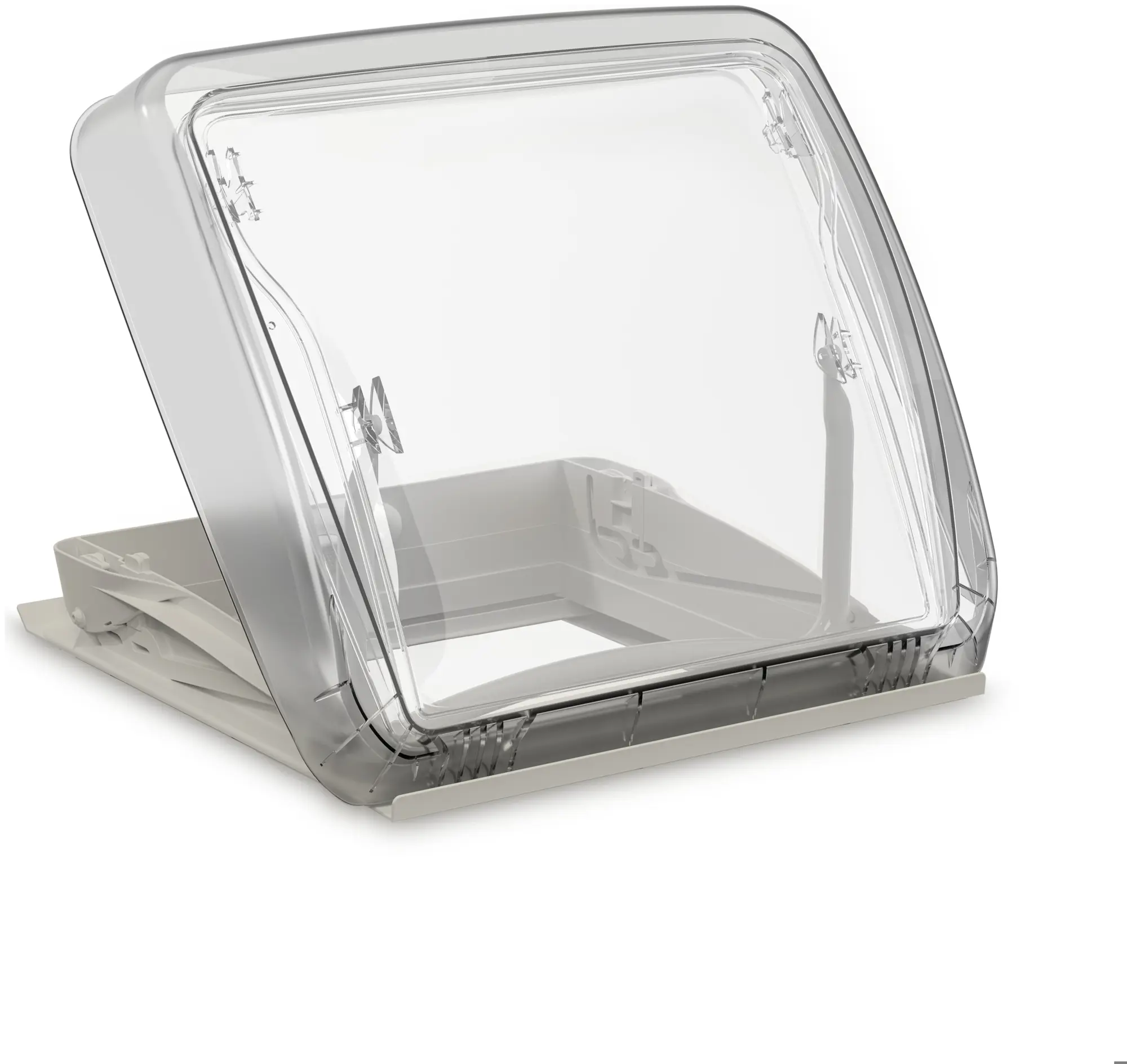

Dometic Mini Heki Style Rooflight - without fixed ventilation for roof thickness 25 - 42mm

£154.99(inc VAT) £195.99
View delivery optionsView product description
  Product Description
Every vehicle instantly seems so much more inviting when equipped with this compact roof light, which admits just the right amount of light into the interior. The Dometic Mini Heki Style Rooflight (25-42mm roof thickness) opens to three positions: fully open, half-open and bad-weather position. *** For the locking of the bar you may require part number 233675****

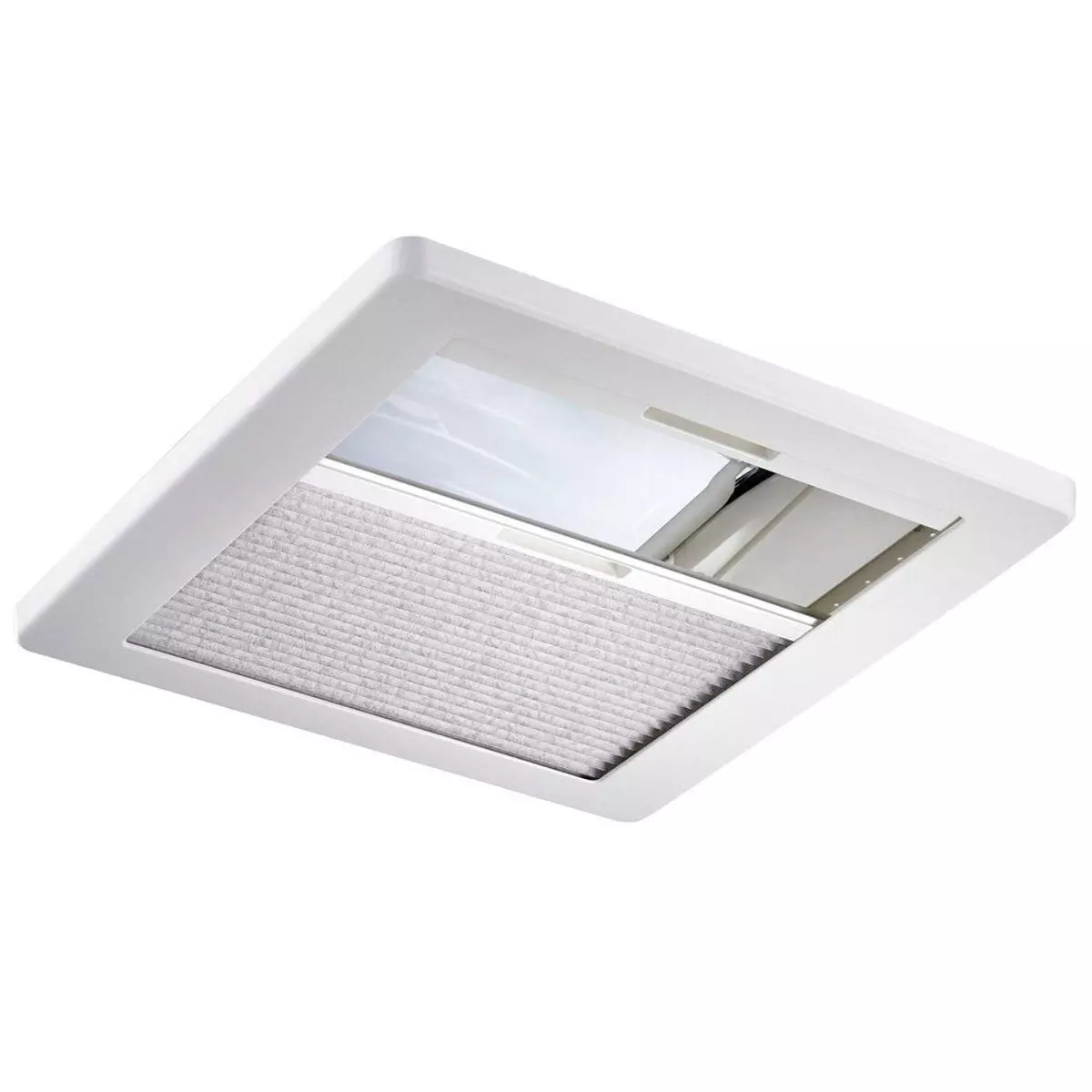

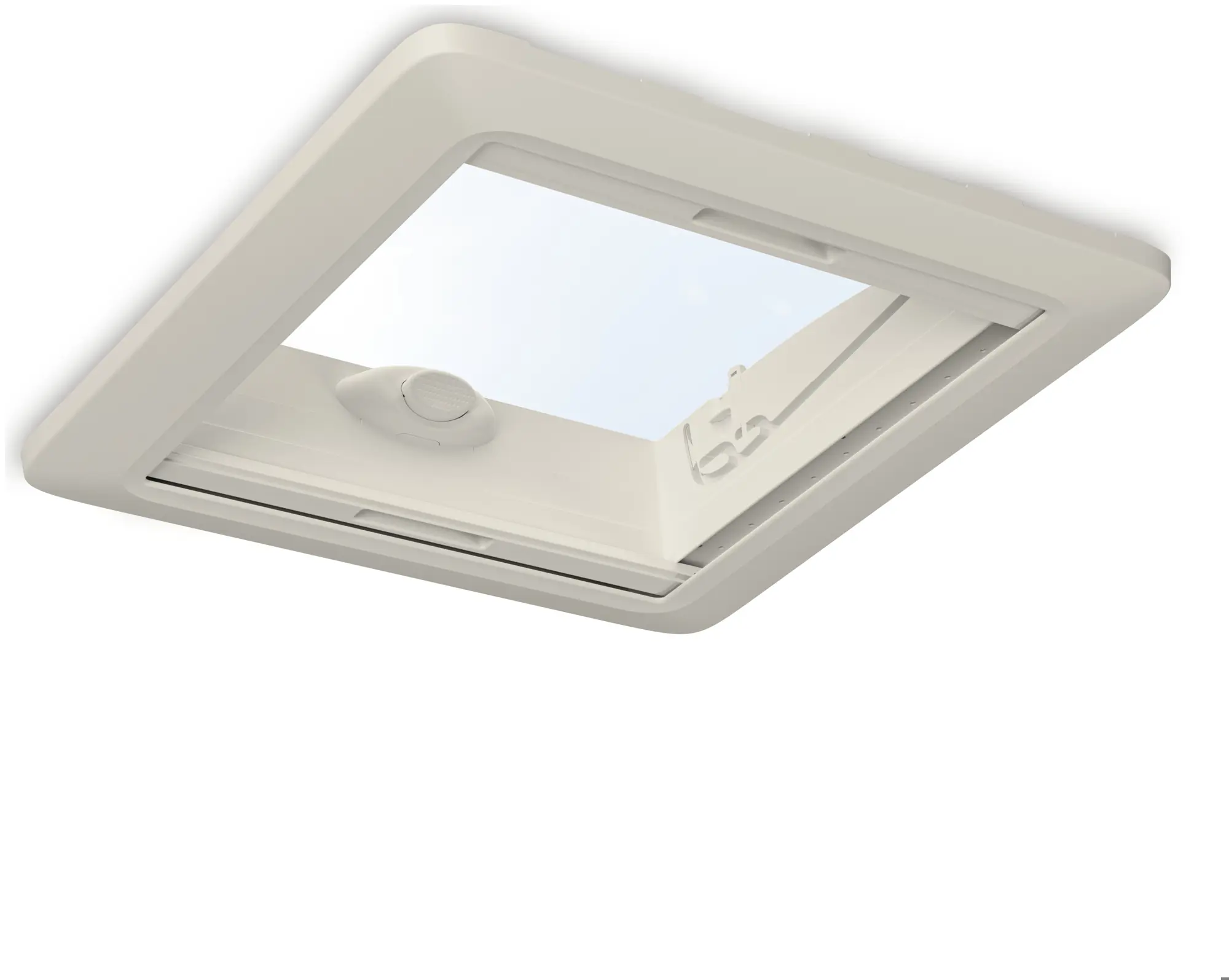

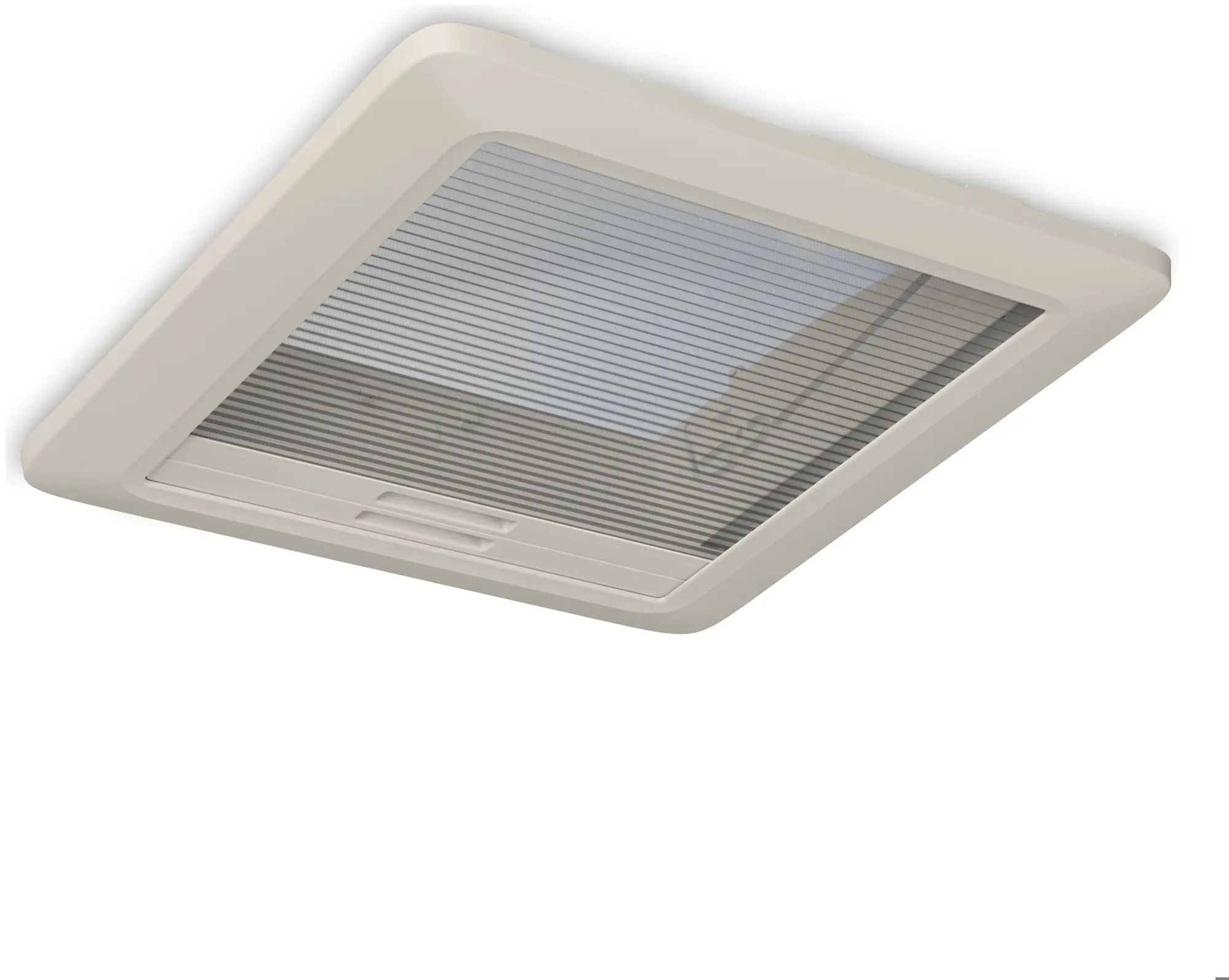

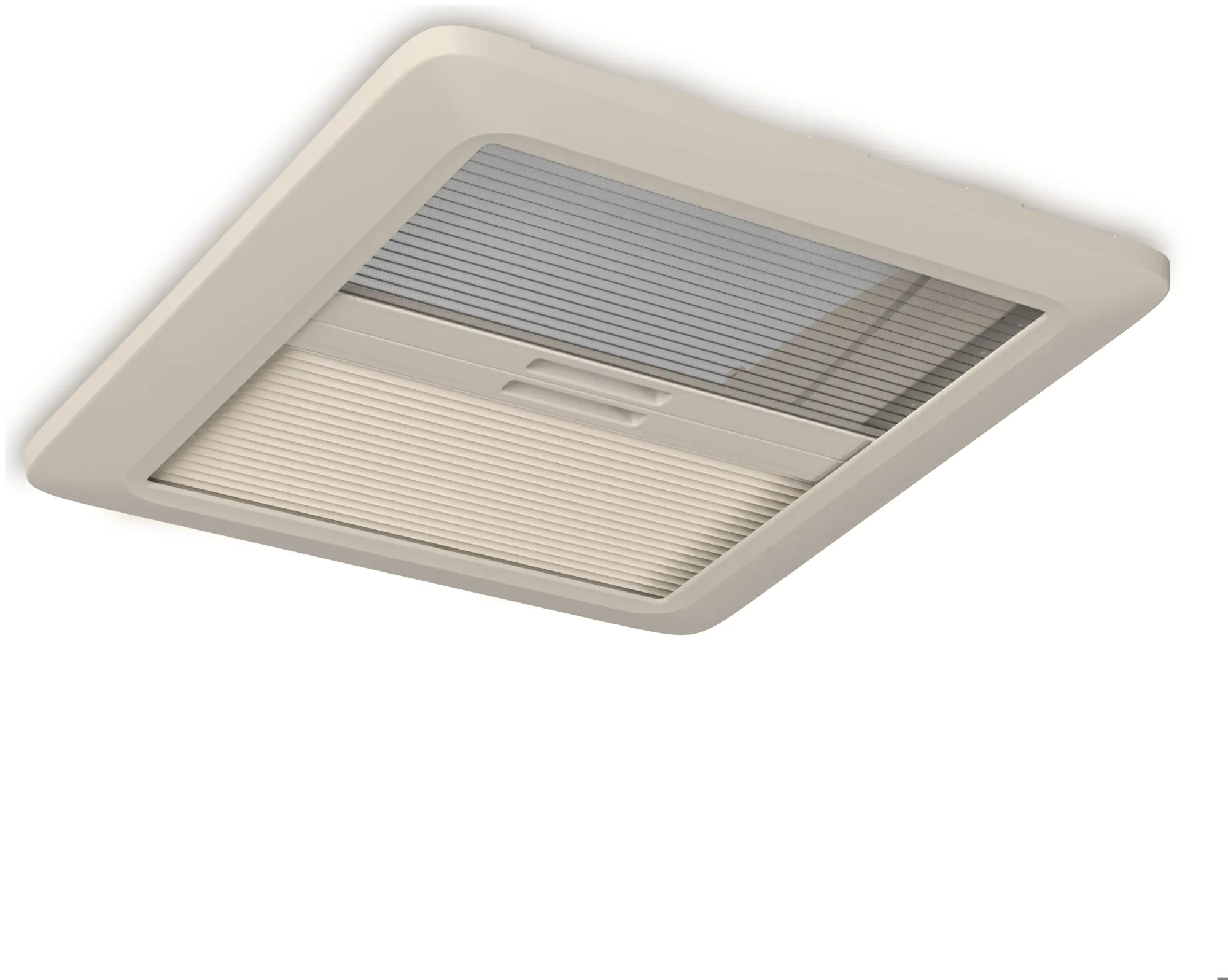

This handle-operated, double acrylic glazed Mini Heki Style roof light for motorhomes and caravans fits neatly into a standard 400 x 400 mm aperture. An inner frame holds a darkening blind and fly screen (separately adjustable) for shade, privacy and freedom from insects! Operated by a hand-lever, the dome can be opened to three different positions: fully open, half-open and bad-weather position.

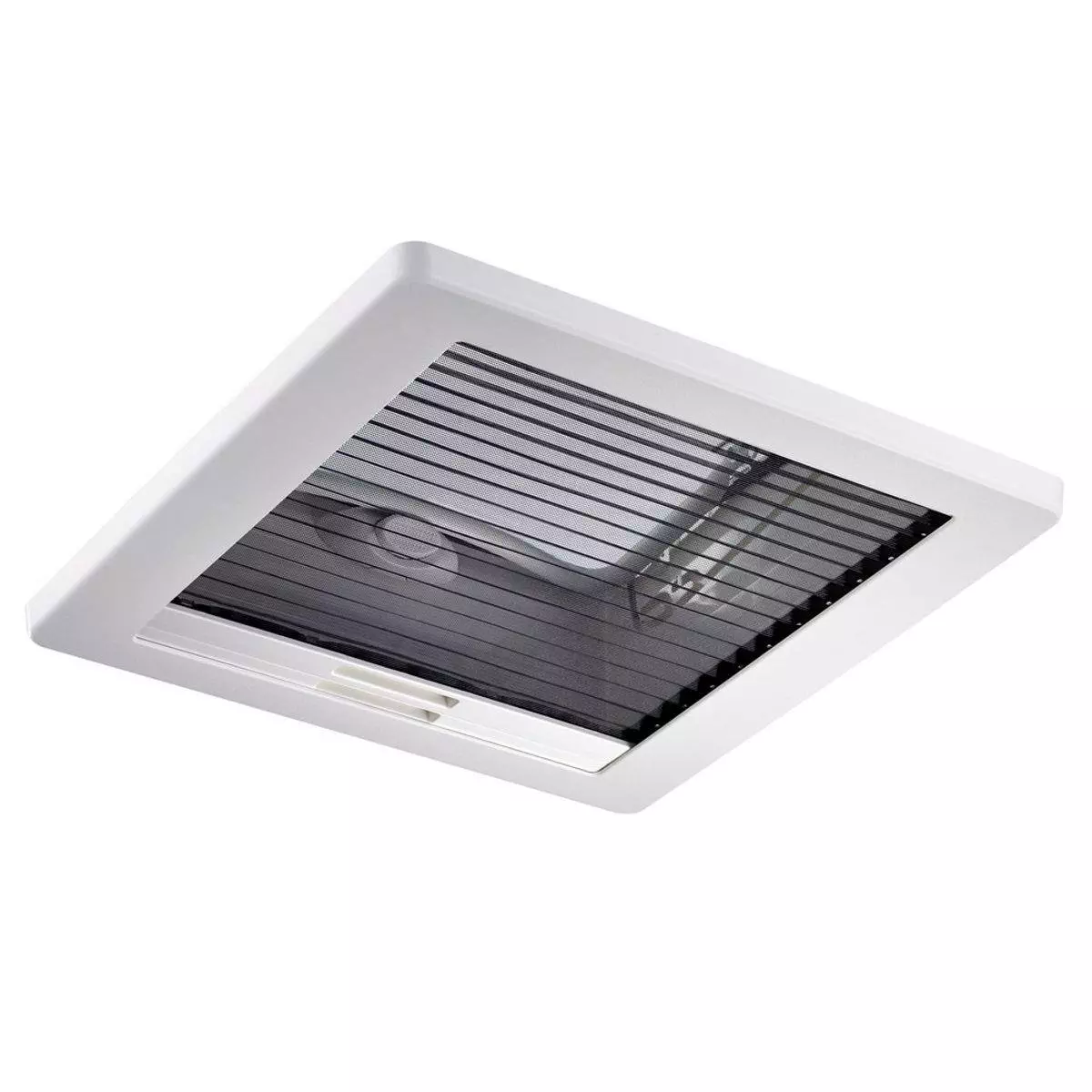

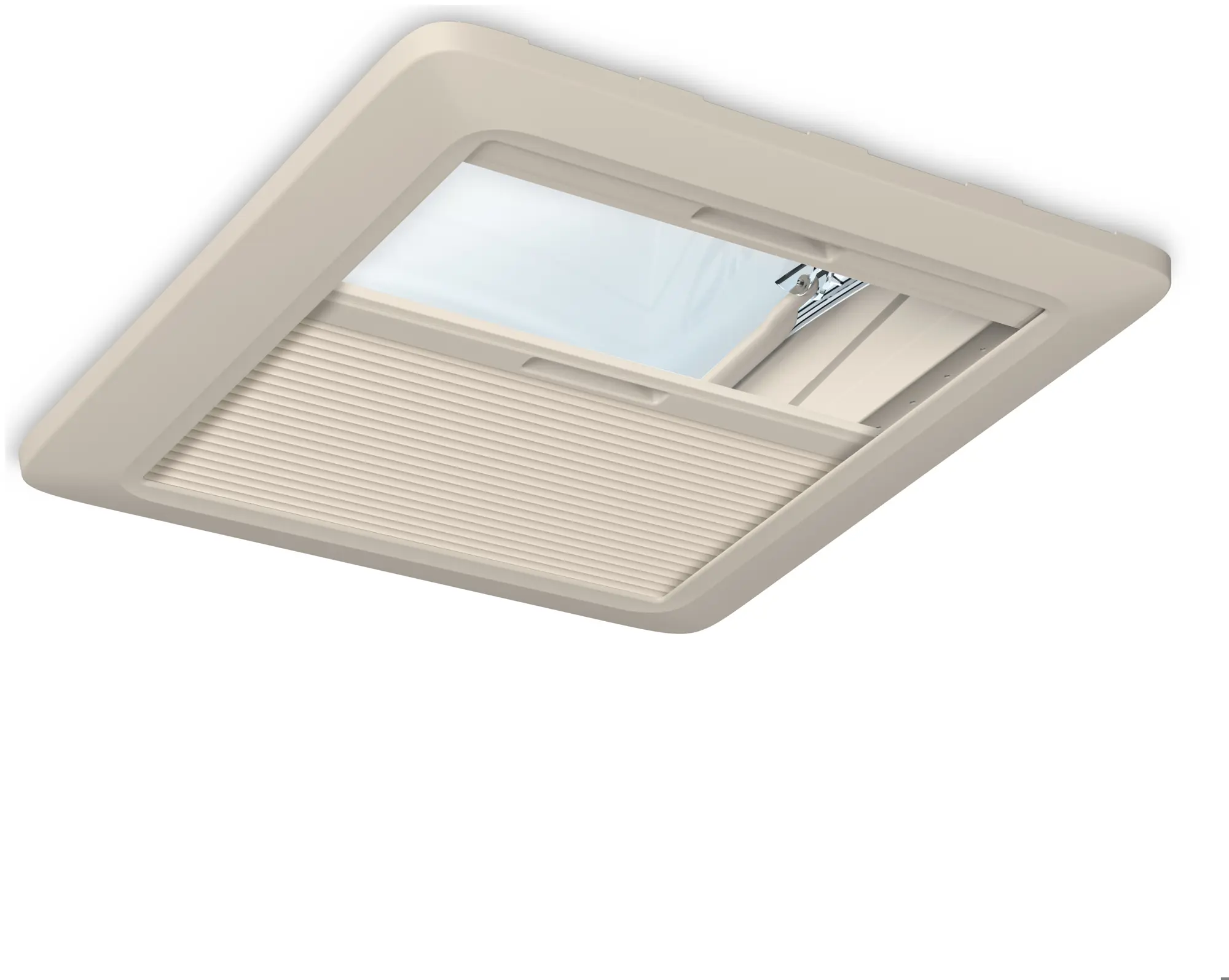

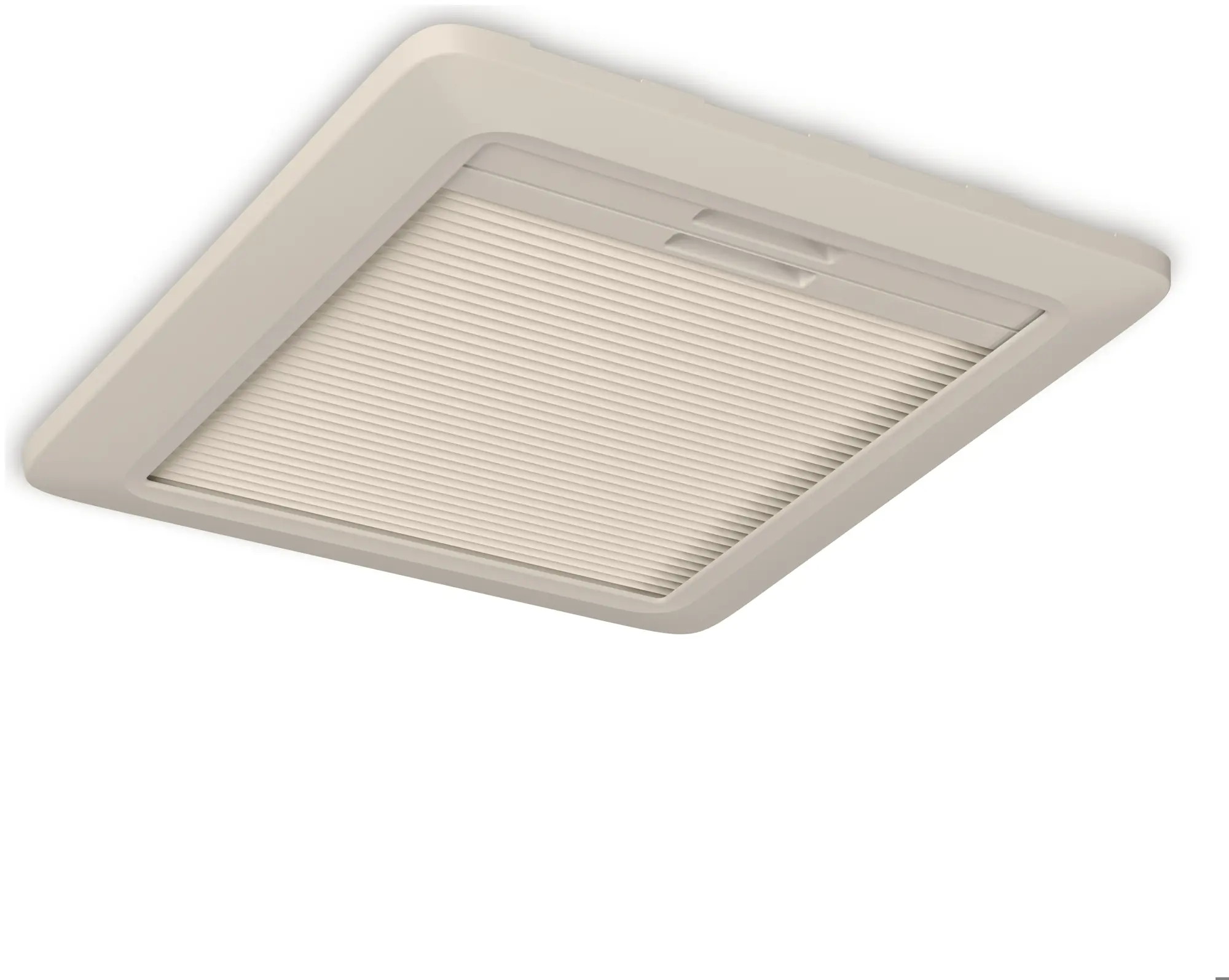

The Mini-Heki style (formerly Plus) is suited exceptionally well for installation in standard-sized dome lights (400 x 400 mm). With a black flyscreen and a pleated fabric blind to guarantee efficient dimming.

Specially designed for installation in standard-sized apertures (400 x 400mm), this small roof light ensures maximum light entry.

This rooflight is without fixed ventilation for roof thickness 25 - 42mm.

What's the difference between with or without fixed ventilation?
Without Fixed Ventilation
This means when the Dometic Mini Heki Style is closed it is completely sealed. There is no ventilation. This is the best option for a motorhome. If a motorhome owner decided to fit a "with fixed ventilation" rooflight, the air would flow through the ventilation gap whilst driving and likely cause a wind noise or whistling. This obviously doesn't matter in a caravan!

With Fixed Ventilation
When the rooflight is completely closed there is still a small amount of ventilation. This helps prevent damp and is the option that should be used in caravans.


Other options:

Quick View     Dometic Mini Heki Style Rooflight - without fixed ventilation for roof thickness 43 - 60mm
Quick View     Dometic Mini Heki Style Rooflight - with fixed ventilation for roof thickness 25 - 42mm
Quick View     Dometic Mini Heki Style Rooflight - with fixed ventilation for roof thickness 43 - 60mm


Specifications

  • Installation area: : 535 x 520mm (d x w)
  • Hole (aperture) required in roof : 400 x 400mm
  • Overall dimension over dome : 530mm square
  • Internal dimensions : 510mm square
  • Weight : 3.3kg

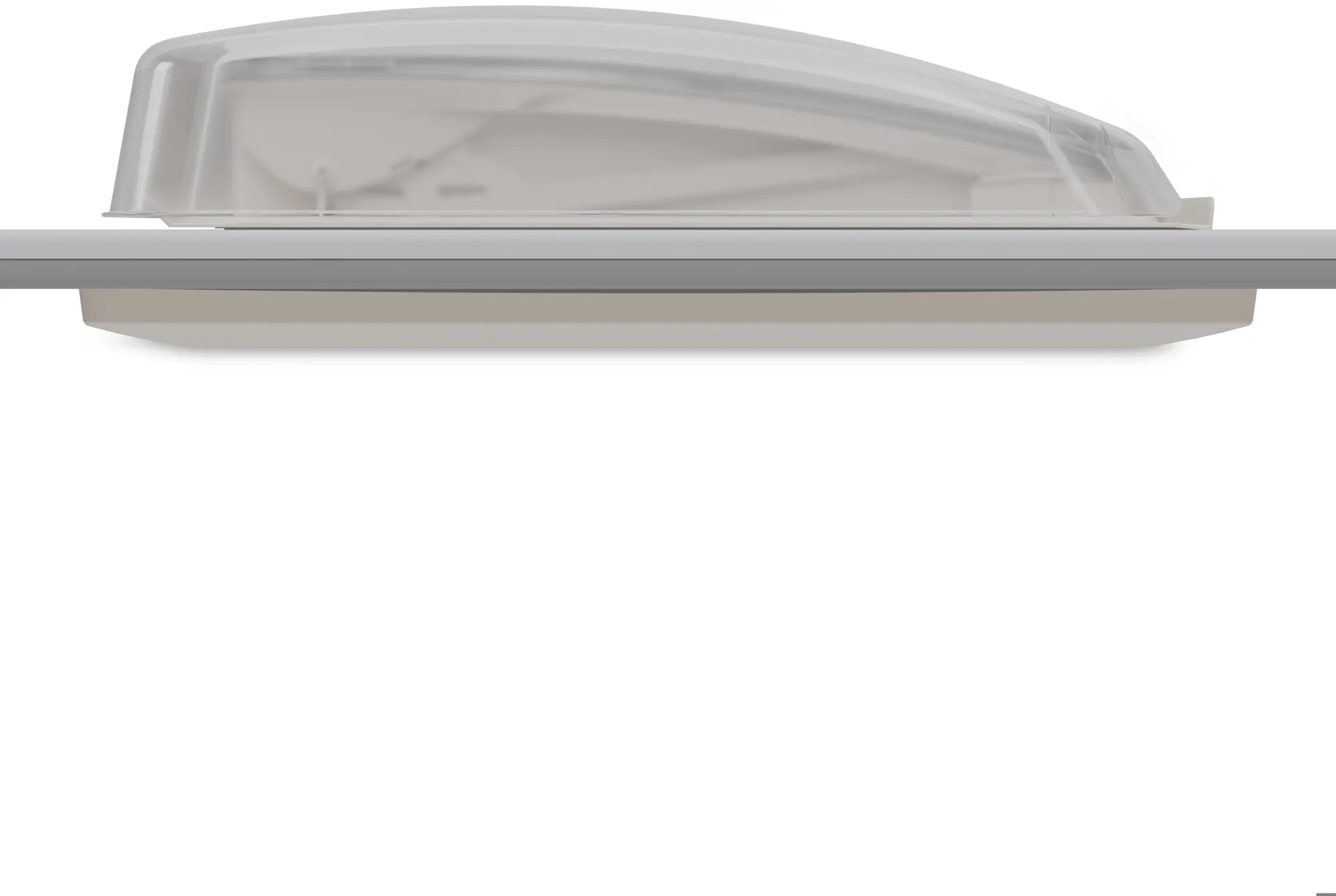

  • Double-glazed, aerodynamically shaped glass dome made of unbreakable Polycarbonate and tinted light grey.
  • Frame made of durable, weatherproof ASA.
  • The inner and outer pane are glued together which makes them dustproof and easy to clean.
  • The fabric is aluminium coated on the outside to reflect infrared rays and non-transparent to protect your privacy.

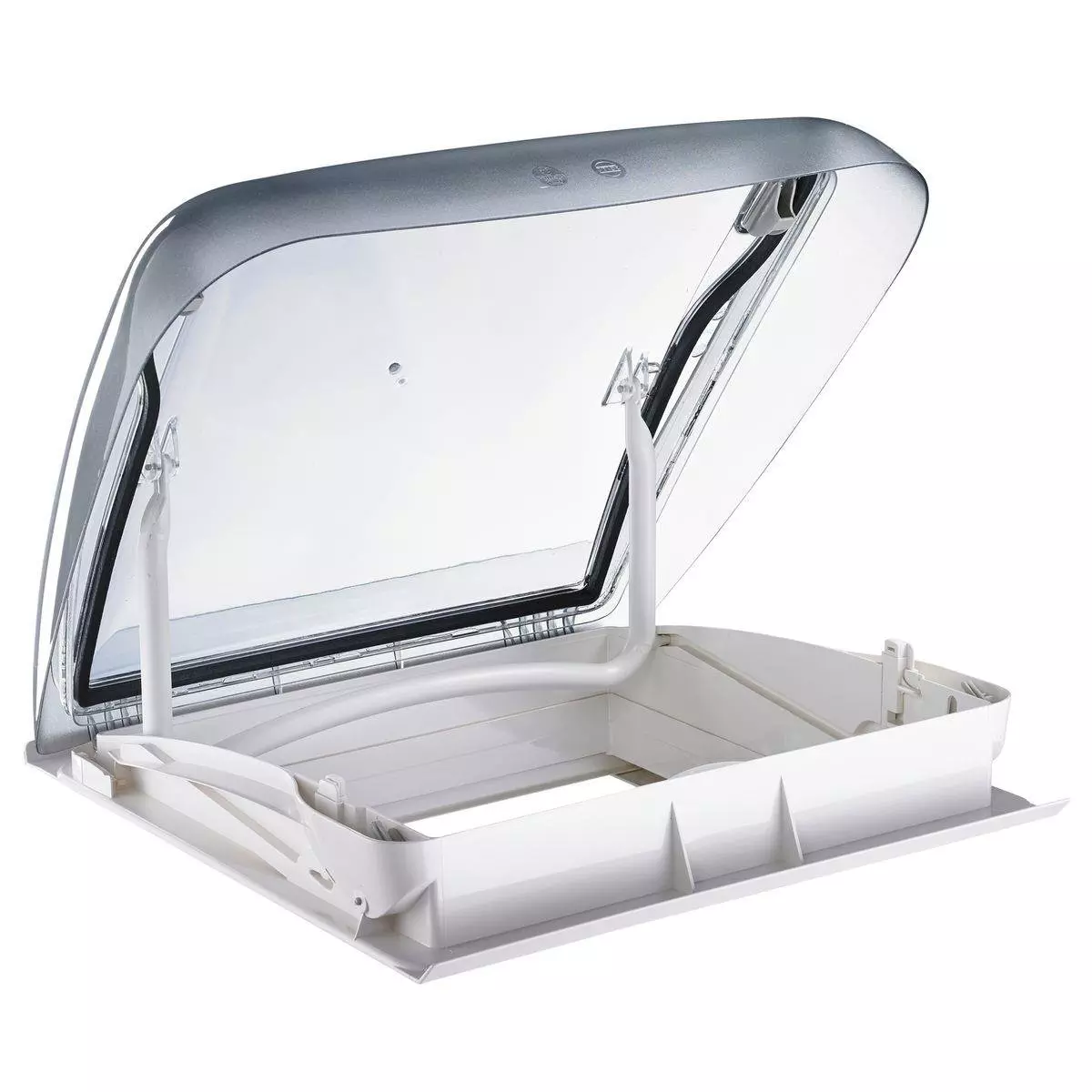

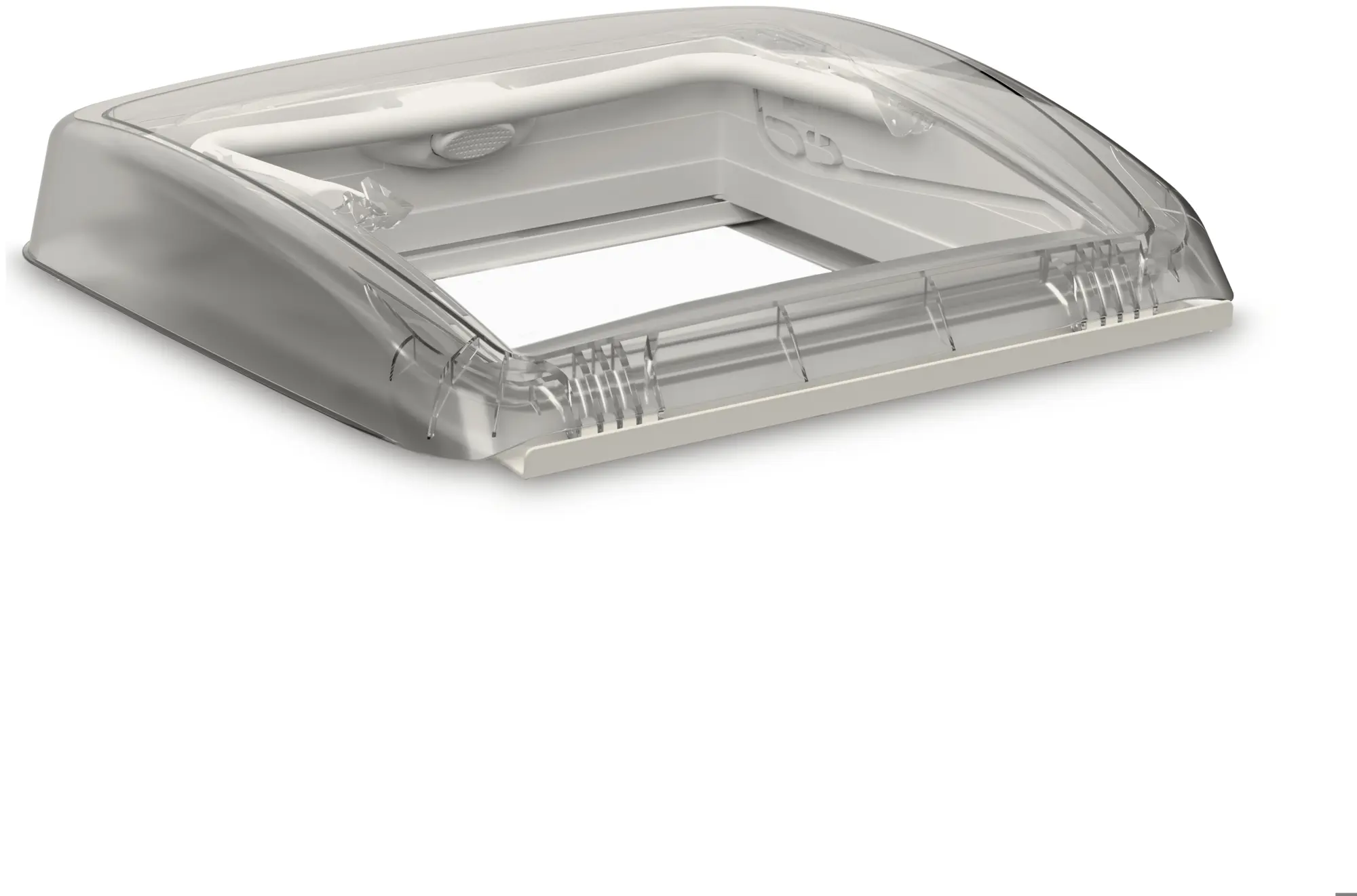

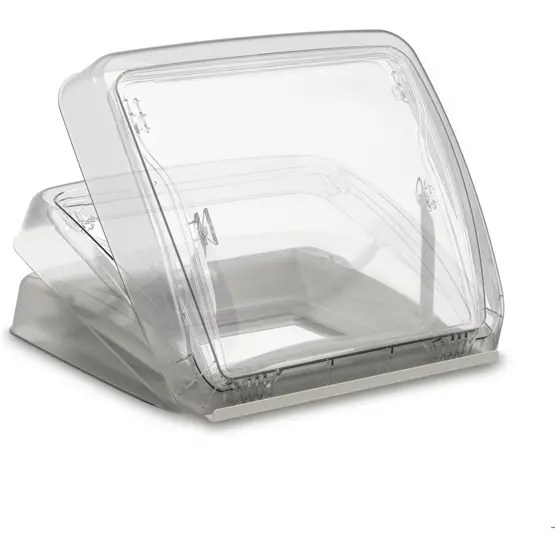

  • Opens in three positions: completely open, half open and bad weather position. The special design guarantees that no water can splash inside when the glass dome is in bad weather position.

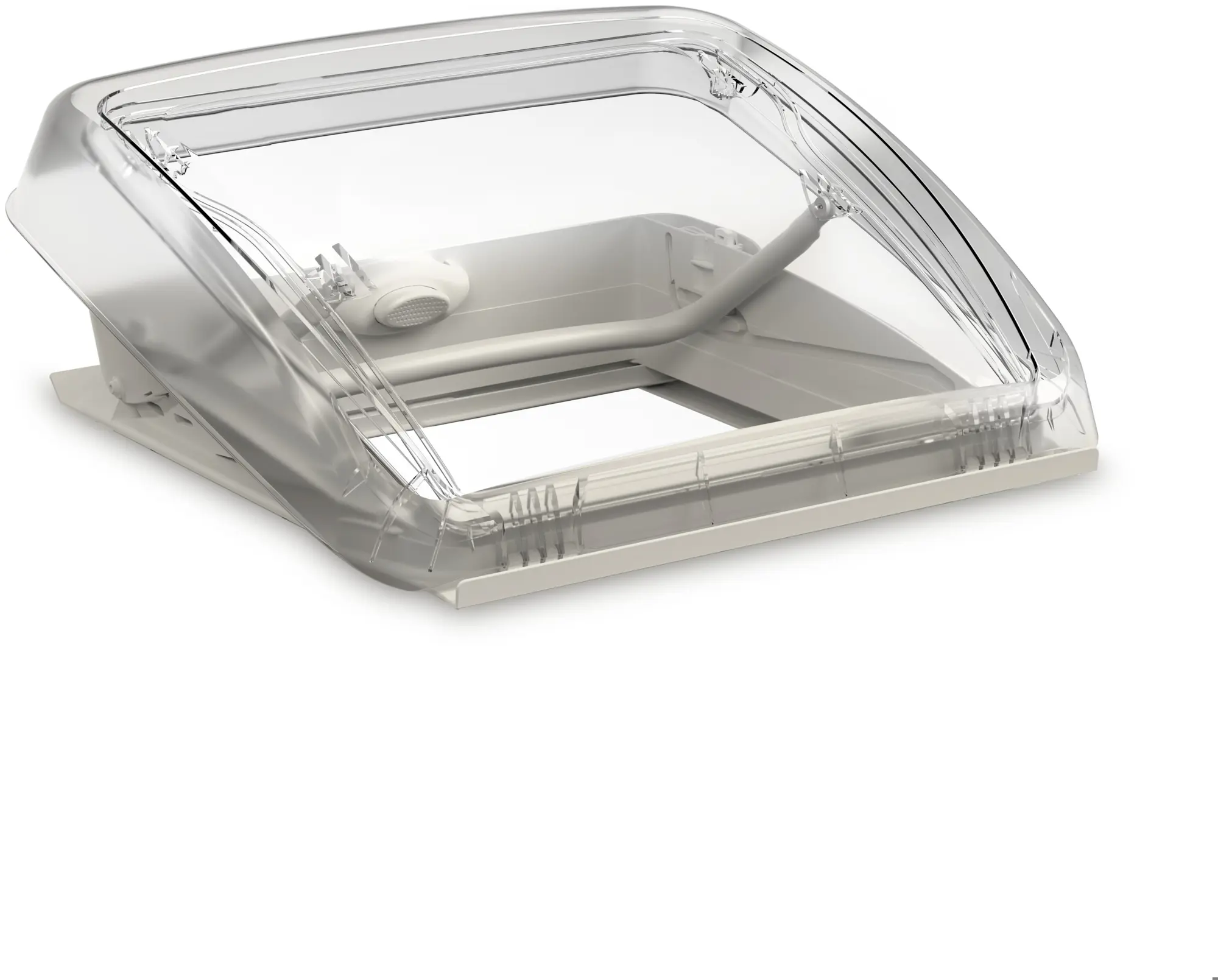

  • Comfortable adjusting of the glass dome with support of a handy operating lever: the dome is automatically locked when closed.
  • Available with or without compulsory ventilation
  • Easy installation in roofs with a thickness of 25 to 42 mm

EAN-13 : 4015704239188

1 FAQ on the Dometic Mini Heki Style Rooflight - without fixed ventilation for roof thickness 25 - 42mm

I need to replace the mini heki roof light on our bailey senator oklahoma 2004 which one is the correct roof thickness to buy?
This will be the 25 to 42mm roof thickness rooflight.

Further Information

6 Customer Reviews on Dometic Mini Heki Style Rooflight - without fixed ventilation for roof thickness 25 - 42mm

Easy To Fit.

by Kev B (01 Dec 2024)
5 star review(5/5)
Arrived on time as described as always. Easy to fit , clear instructions. Very pleased.

Very Good Roof Lite

by Mr Tom Hill (22 Sep 2024)
5 star review(5/5)
Purchase this a a replacement for cracked one on my caravan roof, I did have a small problem in understanding the instructions for adjusting the inside plate for the roof thickness, apart from that a fairly straightforward installation.

Pleased With Product

by Micky (25 Jan 2021)
4 star review(4/5)
Ordered this product found it contained all the fixtures and fittings to be able to install it, as you would expect. Instructions are a bit basic but plenty of YouTube video to help. Everything went well and the skylight is fitted. Everything seems to be in working order.

Mini Heki

by Graham H (14 Jun 2019)
5 star review(5/5)
Straight replacement for old Remis rooflight fitted to my Hymer. As long as you read the information leaflet several times it’s a simple job....

Mini Heiki Style Rooflight

by Wendy Young (17 Jul 2018)
5 star review(5/5)
Great product and easy to install although easier with two people

Two Replacement Rooflights

by Blanko (01 Jun 2018)
5 star review(5/5)
Fitted in motorhome to replace two old vents, they were straightforward to fit and a great improvement over the originals. Simple to operate and let in more light. Hardest part of the job was removing the old vents and cleaning off the old mastic.
